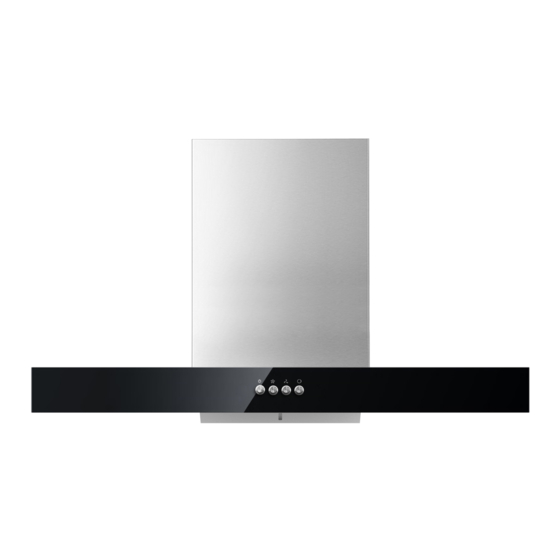

- Page 1 IT9001 IT9002 Cooker Hood INSTALLATION AND USER’S MANUAL Cod:0103090161-00.02...
-
Page 2: Safety Precaution
SAFETY PRECAUTION • mportant! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement. • he cooker hood must be installed in accordance with the installation instructions and all measurements followed. • ll installation work must be carried out by a competent person or qualified electrician. -
Page 3: Maintenance
SAFETY PRECAUTION • aution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision. – here shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. - Page 4 Parts identification (IT9001) Parts Name 10 11 19 20 21 (1) Ducting hose (8) Nut (15) Damper (22) Control panel (2) Hanging bracket (9) Maintenance cover (16) Main body (3) Blower (10) Wire protection box (17) Baffle filter (4) Motor housing...
- Page 5 Parts identification (IT9002) Parts Name 10 11 12 13 21 22 23 (15) Inner Chimney Bracket (22) LED lamp (1)Ducting hose (8) Nut (16) Inner Chimney (23) Touch control switch (2) Hanging bracket (9) Maintenance cover (3) Blower (10) Wire protection box (17) Damper (24) Control panel (4) Motor housing...
- Page 6 Using your Range hood (IT9001) For best performance, you should switch on the range hood few minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A – Power off button B –...
- Page 7 Using your Range hood (IT9002) For best performance, you should switch on the range hood few minutes before starting to cook and leave it to run for approximately 15 minutes after the end of cooking. Control Panel A - Light key B - Speed level keys C - Off key Fig.
-
Page 8: Filter Cleaning
Filter Cleaning IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEANING OF THE RANGE HOOD WITHOUT FIRST SWITCHING OFF THE ELECTRICITY SUPPLY. Oil Collector When the oil reaches maximum marked position on oil collector, clear the oil in time in case of overflow. As Fig. 2-1, pull out the oil collector horizontally to remove it. -
Page 9: Changing The Light
The light is designed for use during cooking and not for general room illumination. Extended use of the light can reduce the life span of the lights. Lights replacement is not covered by the guarantee. Fig. 3-II IT9001:220V 1X2W LED MAX IT9002:12V 1X2W LED MAX Fig. 3-III... -
Page 10: Electrical Information
Electrical Information Mains electrical voltage: 220Vac Total rated power consumption: 202W Troubleshooting Please note: Your Range hood is equipped with a motor protection device that will switch off the motor to prevent damage from overheating. This may happen during cooking when most or all of the zones/burners are being used simultaneously, or if your Range hood is installed incorrectly, lower than the recommended height. - Page 11 Mounting your Range hood When the Range hood is to be installed above an electric hob, the minimum distance between the hob and Range hood must exceed 650mm. When the Range hood is to be installed above a gas hob, the minimum distance between the hob and Range hood must exceed 700mm.
-
Page 12: Installation
INSTALLATION ools requi Mark wall as required (see Fig. 6) Fig. 5 Fig. 6 Fix support plate on the wall by screws with expanding Drill holes for mounting the body. plugs. Fig. 8 Fig. 7 Secure hood (tighten all screws). Fit ducting adaptor. - Page 13 INSTALLATION Fix ducting (seal joint by 3 pieces ST3X8). Fig. 11 Install end cap. 180mm 175mm 550mm 650mm~700mm Fig. 12...
-
Page 14: Environmental Protection
Information for cooker hood ENVIRONMENTAL PROTECTION: This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2002/96/EC.
