- Page 1 Technical Document Upgrading Boot&Firmware Version 1.0 2009-12-08 Sollae Systems Co., Ltd. http://www.sollae.co.kr...
-
Page 2: Table Of Contents
2.1.3 Upgrading Firmware ....................- 5 - 2.1.4 Searching and Factory Reset ..................- 6 - 2.1.5 Uploading Homepage ....................- 7 - 2.1.6 HTTP Test ........................- 8 - Revision History......................... - 9 - Sollae Systems Co., Ltd. - 1 - http://www.sollae.co.kr... -
Page 3: Overall

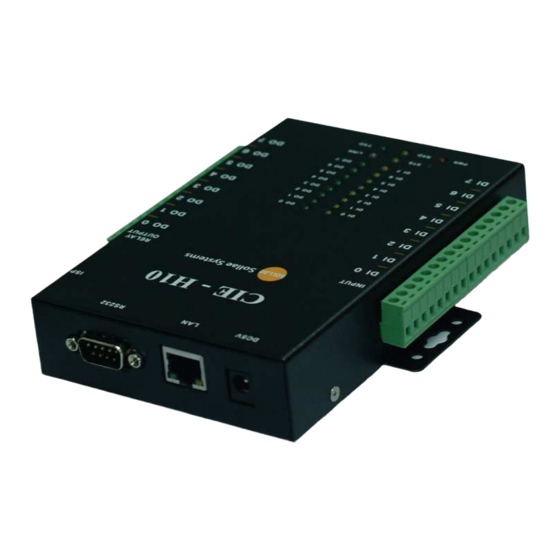

Upgrading Boot&Firmware Ver. 1.0 1 Overall I/O Port of CIE-H10 can be monitored and controlled by Modbus/TCP, HTTP and Macro function. Especially, HTTP is the most familiar way for user using WEB browser like internet explorer. Users can make own web pages with the version of firmware from 1.3A and boot from 1.6. -
Page 4: Upgrade Procedure
2 Upgrade Procedure 2.1 A Flow Chart For using the new added function, CIE-H10 has to download a new boot (ver. 1.6A) and a firmware (ver. 1.3C). This work is so complicate and you might be a little confused. Referring to below diagram in step by step work, it’s not a big deal for anyone. -
Page 5: Upgrading Boot
Downloading the Burnboot Firmware To upgrade the boot, a special firmware has to be downloaded at first. The special firmware is named as burnboot firmware. This is for only upgrade the CIE-H10’s boot. Fig 2-2 ① H10R13E with BOOT1.7 This is a compressed file which contains new version of firmware and burn boot firmware. -
Page 6: Upgrading Firmware
ISP switch one time. The LINK and PWR LED are only turned on again. 2.1.3 Upgrading Firmware Firmware is a type of software for operation of CIE-H10. If there are needs for adding Sollae Systems Co., Ltd. - 5 -... -
Page 7: Searching And Factory Reset
Searching and Factory Reset Run ezManager and press the [Search All] button, then the CIE-H10’s MAC address is listed on the result box. Select the product and press [Initialization] button to reset the CIE-H10 to its default status. Fig 2-5 searching and factory reset ①... -
Page 8: Uploading Homepage
② Click the [Change F/W / HTML] button to run TFTP client ③ Select the [Change HTML] radio button ④ Input the IP address of CIE-H10 to the [Local IP Address] text box ⑤ Press the [Open Firmware / HTML] button and choose the HTML file Sollae Systems Co., Ltd. -
Page 9: Http Test
HTTP Test After the uploading firmware is completed, CIE-H10 automatically operates in normal mode. Connect to the CIE-H10 with a web browser via HTTP and test it. Fig 2-8 Connecting CIE-H10 (left) and CIE-M10 (right) through HTTP Sollae Systems Co., Ltd. -
Page 10: Revision History
Upgrading Boot&Firmware Ver. 1.0 3 Revision History Date Version Comment Author ○ Initial Release 2009.12.08 Roy LEE Sollae Systems Co., Ltd. - 9 - http://www.sollae.co.kr...
