Summary of Contents for Sollae Systems CIE-H10

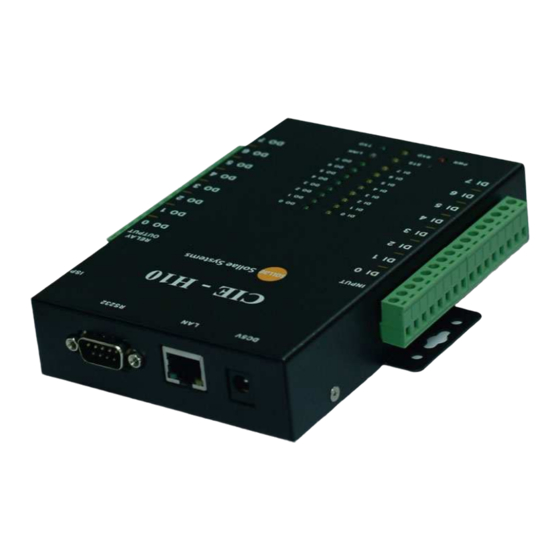

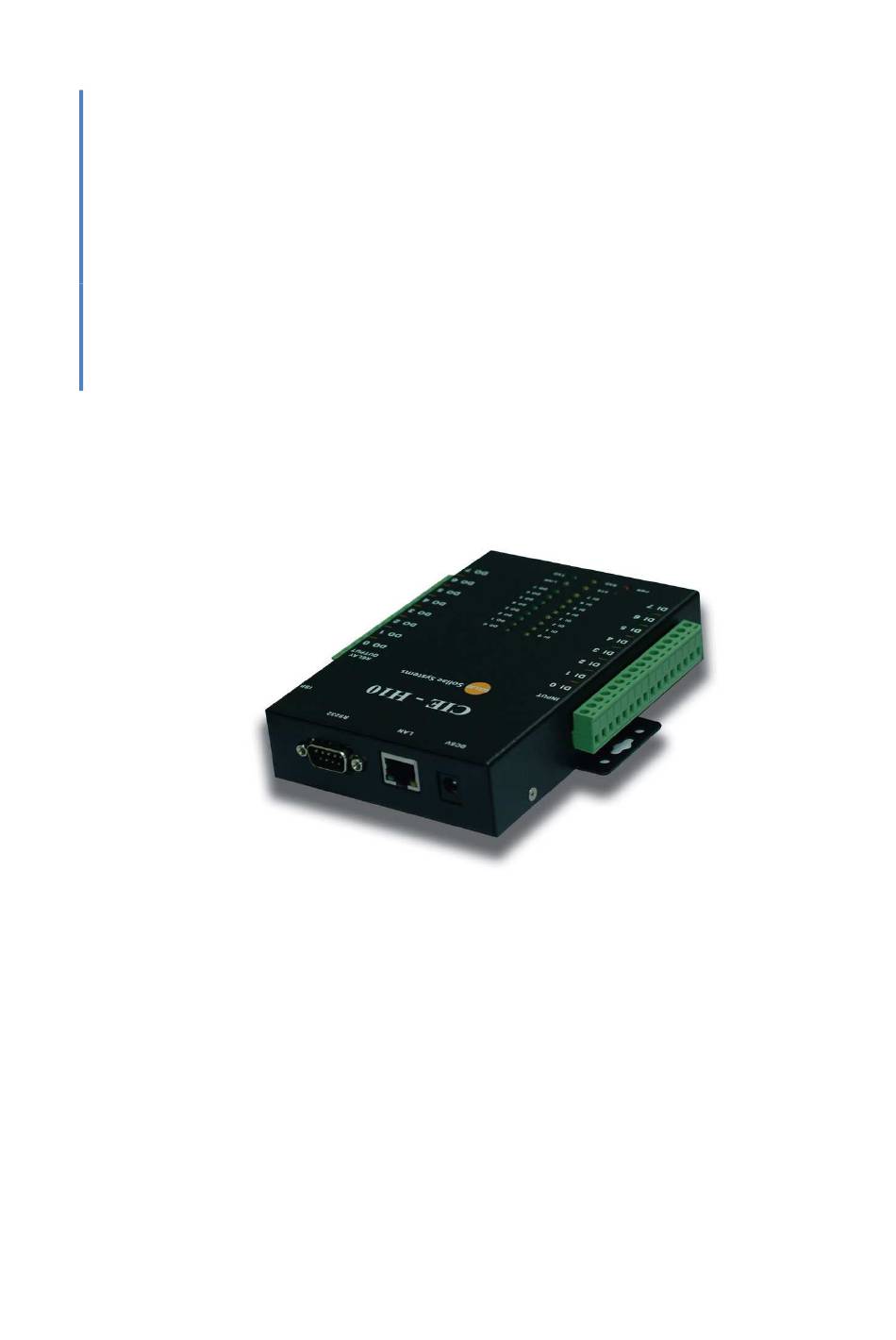

- Page 1 I/O Device Server CIE-H10 User's Manual Version 2.0 2009-06-22 Sollae Systems Co., Ltd. http://www.sollae.co.kr...
- Page 2 CIE-H10 User's Manual Ver. 2.0 To all residents of the European Union Important environmental information about this product This symbol on this unit or the package indicates that disposal of this unit after its lifecycle could harm the environment. Do not dispose of the unit as unsorted municipal waste;...
-
Page 3: Table Of Contents
3.1.4 Test Operation ............................. - 12 - 3.2 Test operation ..............................- 13 - 3.2.1 Changing the IP address of PC ....................- 13 - 3.2.2 Installing CIE-H10 ..........................- 13 - 3.2.3 Configuring CIE-H10 ......................... - 13 - 3.2.4 Modbus/TCP Test ..........................- 15 - 3.2.5 Testing on Web Browser (HTTP) .................... - Page 4 CIE-H10 User's Manual Ver. 2.0 4.3 IP Address Related Categories Settings via DHCP ................. - 19 - 4.4 IP Address settings via PPPoE ........................- 19 - 4.5 Notify IP Change (DDNS) ..........................- 20 - I/O INTERFACE ........................- 21 - 5.1 Modbus/TCP..............................
- Page 5 8.1 Password ................................- 39 - 8.1.1 Set and Delete Password ........................ - 39 - 8.1.2 CIE-H10 settings with Designated Password ................. - 39 - 8.1.3 Connect via Web Browser ......................- 40 - 8.1.4 When Password is Lost ........................- 40 - 8.2 Connection Restriction Function ......................
-
Page 6: Introduction
However, the above options require a great deal of time, cost and effort to make it work. CIE-H10 uses Modbus/TCP and HTTP to provide users with ability to control and monitor remote digital I/O controllers. Therefore, with CIE-H10, remote I/O devices can easily be controlled and monitored at the same time. -
Page 7: Specification
CIE-H10 User's Manual Ver. 2.0 Specification 2.1 Components Name Comment CIE-H10 body 5V Power Adapter RS232C Cable for PC Option Adapter for DIN rail Option 2.2 Product Specification Input Power 5V (±10%) Power Current 510mA typical Consumption Size 153mm x 126mm x 32mm... -
Page 8: Interface
Valid Time CIE-H10 will only recognize input port signals that last for the [Valid Time] set by the user. If the signal is not maintained during the designated [Valid Time], the input signal will be ignored. -
Page 9: Output Port
In order to do so, the signal value must last for [Delay] seconds. If the output value does not last for the [Delay] seconds, CIE-H10 will not send that signal to the output port. If the [Delay] value is set as 0, CIE-H10 will send the output value to the output port immediately. -
Page 10: Rs232 Port (Db9M)
CIE-H10 has an RS232 port for user serial device (300bps ~ 230,400bps). CIE-H10 converts serial data from user device to TCP/IP and transmits to Ethernet port. And CIE-H10 convert TCP/IP data from Ethernet port to user serial device and it transmits raw data to user device. -
Page 11: Ethernet Interface
2.3.4 Ethernet Interface Ethernet Interface Since part of CIE-H10 network is composed of Ethernet, UTP cable may be H10 network is composed of Ethernet, UTP cable may be H10 network is composed of Ethernet, UTP cable may be connected. It... -
Page 12: Isp Switch
There is an ISP switch located on the side of the product. It is a switch that will allow CIE-H10 to be operated as serial configuration mode or ISP mode. If the switch is pressed between 20ms and 1s, CIE-H10 will enter the serial configuration mode. In this mode, you can configure the environment parameters through the RS232 port. -
Page 13: Test
3.1.2 Network Connection After connecting CIE-H10 to the power, directly connect it with PC’s Ethernet port or connect it to the network (hub) that the PC is also connected with. When the LINK LED is on, the network is established. -
Page 14: Test Operation
3.2.2 Installing CIE-H10 Connect LAN cable directly to the LAN port of CIE-H10 or connect it to the hub where the PC is connected with. Also, provide power to CIE-H10 using the power adapter. When the power is supplied, the LINK LED will light up when a proper connection to the LAN cable is established. - Page 15 CIE-H10 User's Manual Ver. 2.0 Parameter Value Local IP Address 10.1.0.1 Network Subnet Mask 255.0.0.0 Telnet Enabled Option IP Address Search Enabled Serial Type RS232 Baud Rate 19200bps Parity NONE Data Bits Serial Port Stop Bit Flow NONE Communication Mode T2S –...
-
Page 16: Modbus/Tcp Test
3.2.4 Modbus/TCP Test It is a test of CIE-H10 to perform control and monitor functions using Modbus/TCP. This test should be performed with Modbus/TCP program provided by Sollae Systems. After having settings as same as the settings shown above, click on the [CIE-H10 TEST] button. -
Page 17: Testing On Web Browser (Http)
Testing on Web Browser (HTTP) Start the web browser as shown below and write http:// and IP address in the address window to connect to the CIE-H10 web browser. It will allow users to monitor and control their CIE-H10 remotely. -
Page 18: Ip Address And Setting Values
4.2.1 ezManager The basic settings of CIE-H10 (IP address, serial port and etc) can be designated by an application utility for Windows, ezManager. ezManager can be operated in Windows platform (Windows 98, 98SE, 2000, ME, XP, Vista) but may malfunction in older OS versions. -
Page 19: Buttons Of Ezmanager
CIE-H10 User's Manual Ver. 2.0 4.2.2 Buttons of ezManager Search All Search for all the ezTCP connected to the local network. Read Read the values configured through MAC or IP address. Write Store the changed values of parameters Set Password Set or remove the password by this button. -
Page 20: Matters To Be Attended To
4.2.4 Matters to be attended to ezManager can be used when you want to change your device’s environment variables. In case of CIE-H10, two interfaces are supported and those are Ethernet and RS232 port. Using Ethernet Port For use ezManager through Ethernet, CIE-H10 should be connected with PC on networks. -
Page 21: Notify Ip Change (Ddns)
Change Trap service solves this problem. There are 3 types- DDNS, TCP and UDP- for this service. If the CIE-H10 obtains its IP address, it notices to the service provider. Then the service provider serves DNS service. So, even though user doesn’t know the CIE-H10’s IP address, user can connect to the CIE-H10 by the host name (after DNS looking up.) The DDNS... -
Page 22: O Interface
CIE-H10 User's Manual Ver. 2.0 I/O Interface In CIE-H10, there are 8 input ports interfaced by photo couplers and 8 output ports interfaced by relays. These I/O ports can be controlled by four methods: Modbus/TCP, Serialized Modbus/TCP, Macro and Web (HTTP). -
Page 23: Modbus/Tcp Setting Values
5.1.1 Modbus/TCP Setting Values Modbus/TCP Using Modbus/TCP, monitor and control CIE-H10. CIE-H10 will operate in Slave mode like the standard Modbus/TCP. When CIE-H10 receives Modbus/TCP query from Master, it will Slave process the designated query. However, in order for CIE-H10 to process the received query, the query must match [Unit ID] and [Input Port Base Address]/ [Output Port Base Address]. -
Page 24: Standard Modbus/Tcp
TCP Port Also, adequate CIE-H10’s [Unit ID], [Input Port Base Address], and [Output Port Base Address] must be selected. In the case of CIE-H10, [Input Port Base Address] and [Output Port Base Address] must differ by a number larger than 8. -
Page 25: Tcp Connection Mode
502 port. However, depending on the network status, Modbus/TCP device may have to establish connection to the Manager. In this special case, CIE-H10 can be changed into Active mode to actively connect to the remote host. - Standard Modbus/TCP... -
Page 26: Operand
Input port value Output port value 5.3 Monitoring and controlling on Web (HTTP) When HTTP check box in ezManager is selected, CIE-H10 input/output port values may be monitored and controlled using web browser. Sollae Systems Co., Ltd. - 25 -... -
Page 27: Connect To Web
CIE-H10 User's Manual Ver. 2.0 5.3.1 Connect to Web After starting the web browser, type in CIE-H10’s IP address after typing http:// in the address window to connect to CIE-H10. If passwords for CIE-H10 are designated, the following window will pop up. -
Page 28: Using User's Web Pages
If you want to know in detail, please refer to the document on our web site. Downloading HTML files In your CIE-H10, may have a HTML file based on image. Except for this default web page, we have been offering some examples through our web site. These could be good references when you make your own web pages. -
Page 29: Serial Interface
TCP/IP network. Also, TCP server, TCP client, AT command emulation, UDP, and many other devices are supported to provide various applications to the users. 6.1 Serial communication mode CIE-H10 has 4 serial communication modes. The following chart is a brief explanation for each communication mode. Designation of... -
Page 30: T2S - Tcp Server
The received serial data before the TCP connection is established will be handled based on the [Event Byte] settings. If the [Event Byte] is 0, the data that comes to CIE-H10’s serial port will not be recognized. If it is not 0, the serial data before TCP connection will be temporarily saved to be sent to the host after the connection. -
Page 31: Connection Termination
Then, CIE-H10 will send data according to the [Data Frame]. In other words, when the data comes through CIE-H10’s serial port, it will be temporarily saved in the buffer. Then, when there is no incoming data during the designated [Data Frame], CIE-H10 will send the saved data. -
Page 32: Cod - Tcp Client
Data before TCP connection will be handled based on the [Event Byte] settings. If the [Event Byte] is 0, the data that comes to CIE-H10’s serial port will not be recognized. If it is not 0, the serial data before TCP connection will be temporarily saved to be sent to the host after the connection. -
Page 33: Connection Termination
[Timeout] is 1 second. 6.3.4 DNS If users set the host name instead of the IP address on the [Peer Address] box, CIE-H10 query the IP address of the host to its Domain Name Server (DNS). The IP address of DNS can be configured on ezManager. -
Page 34: Atc
CIE-H10 User's Manual Ver. 2.0 6.4 ATC ATC mode allows users to use AT commands to control CIE-H10 like modem control. In ATC mode, only TCP connection is allowed. In ATC mode, AT commands can be used to change environmental factor values and IP address. -
Page 35: U2S - Udp
U2S is a mode that performs UDP communication. In UDP communication, data is sent in block units. Therefore, data that comes through CIE-H10’s serial port must be classified in block units to send it elsewhere. The block unit classification process is performed as the following. -
Page 36: Checking And Debugging
7.1 Telnet 7.1.1 Telnet Login If the [Telnet] parameter is set, user can log in the CIE-H10. User can monitor the status of the serial ports and the network. If user inputs “telnet [CIE-H10 IP Address]”, user can log in the CIE-H10 with telnet. Then the following message will be shown. - Page 37 CIE-H10 User's Manual Ver. 2.0 System Uptime Using “st uptime” command, users can check the uptime of CIE-H10. If the power is resupplied, the uptime will be reset to zero. Dumping Serial Data By using “sd” command, users are allowed to dump data of the RS232 port. An example is followed.
-
Page 38: Status Of Ezmanger
CIE-H10 User's Manual Ver. 2.0 7.2 Status of ezManger If the [Status] is pressed, user can monitor the current status of the CIE-H10 with ezManager. If user sets [Status Request] option, the status data will be updated periodically. Sollae Systems Co., Ltd. -
Page 39: Debugging Message
UDP port 50006. Then user can get the messages with new window if user presses [Debugging Message] button as followed: This function is very useful when there are any problems when user installs the CIE-H10 in the user’s site. -
Page 40: Security Options
CIE-H10 User's Manual Ver. 2.0 Security Options CIE-H10 provides users with password, MAC and IP address access restriction and other security options. 8.1 Password When password for CIE-H10 is designated, password is required when users are attempting to change CIE-H10 settings. Also, when connecting to CIE-H10 via web browser to monitor and control input/output port, users must insert the designated password. -
Page 41: Connect Via Web Browser
When designated password is lost, ezManager cannot be used to manage CIE-H10. In this case, pres CIE-H10’s ISP button for 100ms to operate CIE-H10 in ISP mode. In ISP mode, all of the security functions are disabled. It allows users to delete currently designated password. -
Page 42: Allowed Ip Address
CIE-H10 User's Manual Ver. 2.0 8.2.2 Allowed IP Address When this category is selected, host connections can be restricted based on designated [IP address] and [Net Mask] setting values. When [Allowed IP Range] is selected, [Allowed IP] and [Net Mask] category may be bit AND to identify allowed hosts. -
Page 43: Technical Support/Warranty /Precautions
Do not use this product for special cases requiring high quality and reliability such as space - 42 -raveling, airplane, medicine, nuclear power, transportation, and other safety devices. If accidents or loss may occur using this product, Sollae Systems will not be liable for any compensation. Sollae Systems Co., Ltd. -
Page 44: Ordering Information
CIE-H10 User's Manual Ver. 2.0 10 Ordering Information CIE-H10-E RoHS compliant Sollae Systems Co., Ltd. - 43 - http://www.sollae.co.kr... -
Page 45: Revision History
CIE-H10 User's Manual Ver. 2.0 11 Revision History Date Version Comment 2007.03.22 Initial touch 2007.06.11 Initial Release 2007.06.28 Add Security Function 2007.06.29 Correct Maximum Input Port Voltage 2007.07.16 Change English Expressions by JJS 2007.09.03 Add Telnet COM Port Control Option 2007.09.19...
