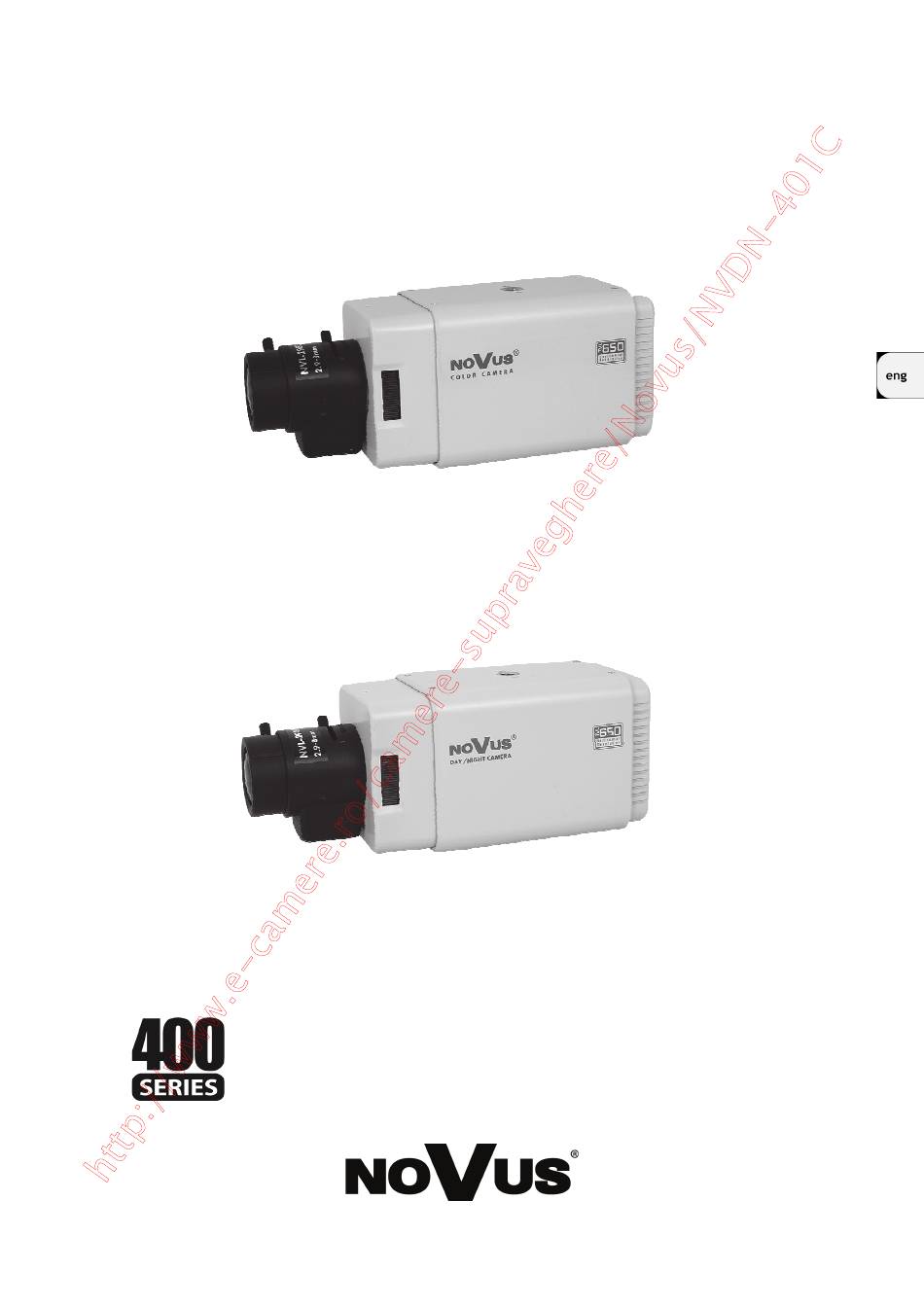

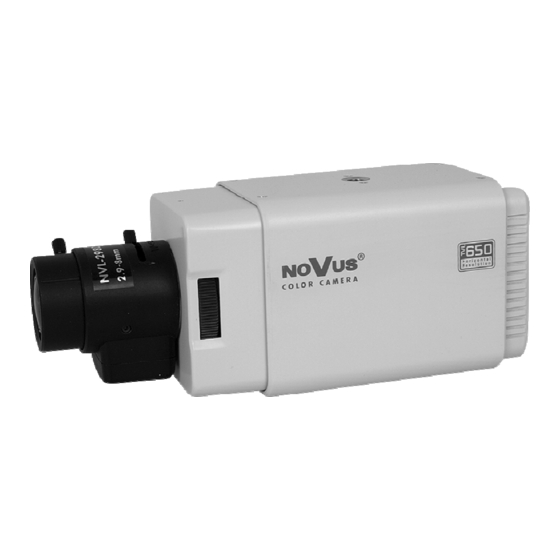

- Page 1 X V H U ·V P D Q X D O 19&& 19'1&...
- Page 2 EsE INFORMATION EMC (2004/108/EC) and LVD (2006/95/EC ) Directives CE Marking Our products are manufactured to comply with the requirements of the following directives and national regulations implementing the directives: Electromagnetic compatibility EMC 2004/108/EC. • Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical •...
-
Page 3: Safety Requirements
EsE SAFETY REQUIREMENTS WARNING! THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION. WARNING! USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE THIS UNIT. - Page 4 EsE SAFETY REQUIREMENTS 9. Device should be supplied only from a power sources whose parameters are in accordance with those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera from a power sources with unknown parameters, unstable or not meeting producer’s requirements;...
-
Page 5: Foreword Information
If any of the listed equipment has been damaged during transport or if the package is incomplete, the contents of package should be packed back in to the original box. Please contact your local NOVUS distributor for further assistance. 2. MAIN CHARACTERISTICS Electronic day/night function (NVC-401C) •... -
Page 6: Features And Specification
EsE FEATURES AND SPECIFICATION 3. SPECIFICATION Model NVC-401C NVDN-401C Pick-up element CCD imager, 1/3” SONY Super HAD II Number of Effective Pixels 976 (H) × 582 (V) 650 TVL – color mode, 650 TVL – color mode, Horizontal resolution 650 TVL –... - Page 7 EsE FEATURES AND SPECIFICATION 3.1 Dimensions 3.2. View of the camera, layout of the camera items Rear view 1,2,4,5 - direction buttons LEFT, UP, RIGHT, DOWN - SET button - POWER supply diode - BNC connector - Auto Iris Lens Connector - Power supply connector 12V DC...
-
Page 8: Installation
EsE INSTALLATION 4. INSTALLATION 4.1 Lens installation The NVC-401C and NVDN-401C cameras support manual and auto iris D type lenses. It is recommended to use IR series lenses for day/night camera and for cooperation with IR illuminators. In case of operation with IR illuminators it is necessary to use IR series lenses. Thanks to ring, application usage of C-mount lenses is possible . - Page 9 EsE INSTALLATION 4.1.1 Fixed iris lens installation In order to install manual iris lens one should: Carefully remove the plug protecting the CCD pick-up element • Carefully screw the lens to the end of the thread till slight resistance can be felt •...
- Page 10 EsE INSTALLATION In the camera menu set lens control as DC • Supply power to the camera, adjust focal length and focus • Note: For best results, perform focus adjustments at night (with iris fully opened) or while using a #6 or #8 welder's glass in front of the lens to avoid overexposure. Note: The cameras are equipped with the circuit for iris control with the voltage level ad- justment in the menu.
- Page 11 EsE INSTALLATION 4.2 Power supply connection Warning: Device should be supplied only from a power sources whose parameters are in accordance with those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera from power sources with their parameters unknown, unstable or not meeting the producer’s requirements.
- Page 12 EsE INSTALLATION In order to enter the menu press the joystick down, which results in executing ENTER command. For choosing the submenus please move the joystick into UP, DOWN positions. If a symbol is present, enter particular sub-menu by pressing the joystick, which is associated with executing the ENTER.
- Page 13 EsE SETTINGS 5.1.3. SHUTTER/AGC submenu This menu offers how to control/select SHUTTER and AGC to get the best image for the high luminance and the low luminance according to the scene. In AUTO mode: HIGH LUMINANCE Settings on the medium - and high-brightness side. MODE (SHUT) Specifies AE control - Shutter.
- Page 14 EsE SETTINGS ENVIRONMENT Selects INDOOR or OUTDOOR. Their ATW is optimized for the limited application. INDOOR Optimized for indoor installation and compensates ATW for low colour temperature such as incandescent lights. OUTDOOR Optimized for outdoor sunlit applications and compensates ATW for high colour temperature such as daylight.
- Page 15 EsE SETTINGS Select to set the 2D NR filter mode (Y, C, Y/C). NR MODE (0-15) Indicates the noise reduction strength for the luminance signal. Higher value Y LEVEL performs stronger noise reduction and makes the image less sharp. Due to the limitation of 2D NR, noise reduction may not be effective enough.
- Page 16 EsE SETTINGS 5.1.8. BACKLIGHT submenu These compensation functions allow for enhancing visibility of the objects located in the foreground, surrounded by strongly illuminated background (BLC) or for enhancing visibility of the objects located near the strong light source (HLC). If a strong, point light source appears on the screen, function will mask it allowing for effective observation of the scene itself (for example this function is used to, observe licence-plates of the cars).
- Page 17 EsE USTAWIENIA DETECT SENSE (0-127) Adjusts the sensitivity for detecting motion. A higher value is more sensitive. (ON/ENABLE/OFF) Enables or disables displaying luminance highlighted BLOCK DISP blocks for the area where the motion is detected. MONITOR AREA (ON/OFF) Displays four windows as programmed in sizes and positions. If the motion is detected window is blinking;...
