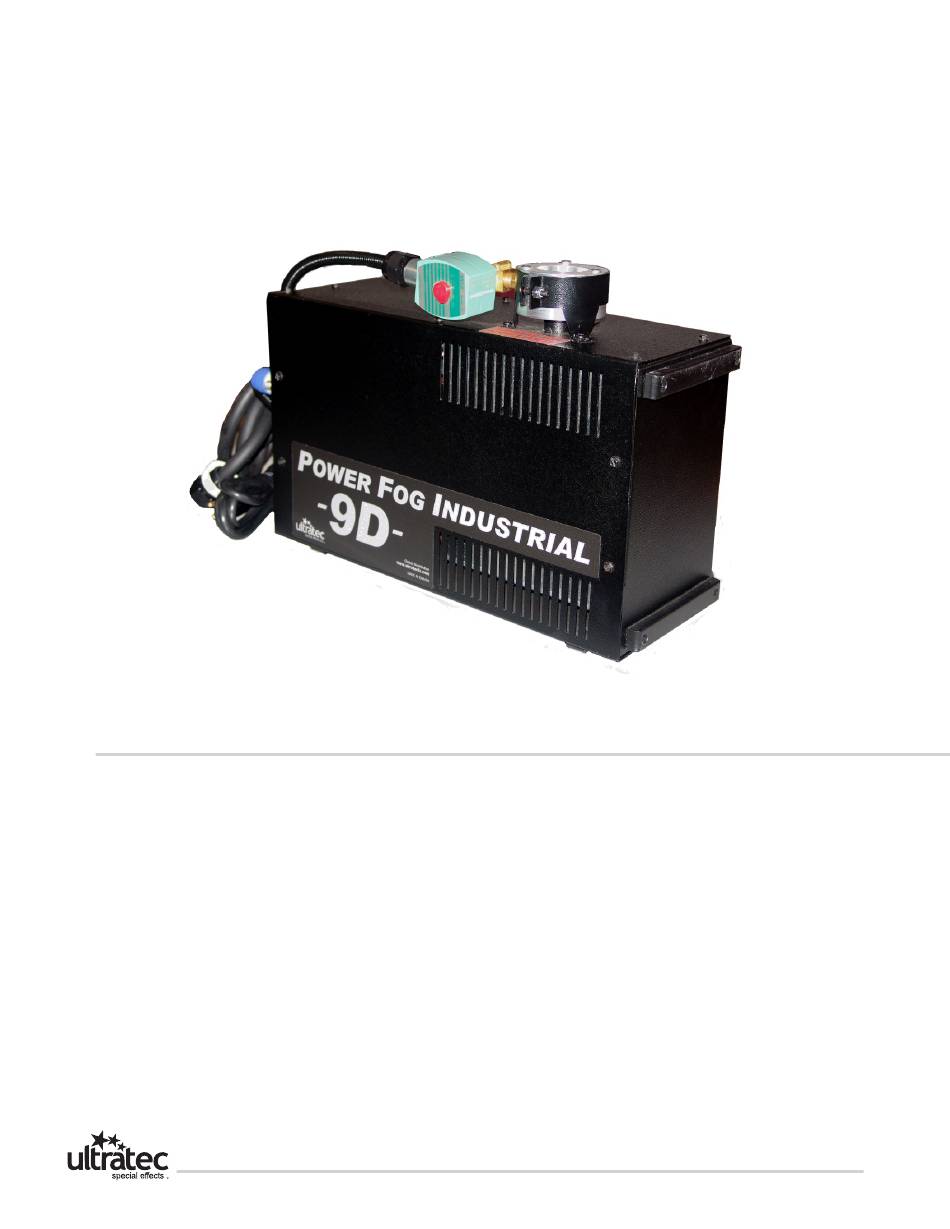

- Page 1 Power Fog Industrial Fog Burst Operators Manual v.102020...
-
Page 2: Table Of Contents
Table of Contents Introduction ..............1 Warning ..............1 Safety Precautions ............ 1 Technical Specifications ..........2 Technical Drawings ............. 2 Technical Specifications w/ Power Fog Industrial..3 Technical Drawings w/ Power Fog Industrial....3 Fog Burst Setup............4 Compressed Gases ............ 4 Operating Procedure ........... -
Page 3: Introduction
4. Protect the machine from direct weather effects and wet locations. Suitable for dry locations only. 5. Only use fog fluid by Ultratec Special Effects. 6. Do not continue to produce fog in an enclosed area when visibility is reduced below 20”(50cm). -
Page 4: Technical Specifications
3 lbs/ 2 kgs Power Rating: 120 Volt A.C. 50/60 Hz. 1 A. 220 Volt A.C. 50/60 Hz. 0.5 A. Ultratec Special Effects Fog Burst Air Requirements in SCFM: Pressure-----Fog Burst 20 PSI----------8 40 PSI---------11 60 PSI---------15 80 PSI---------19 90 PSI---------22 100 PSI---------25 The Fog Burst gives 15 times output or about 375 CFM @ 100 PSI Approvals: This product has been certified to CSA/UL Standards by QPS Canada Inc... -
Page 5: Technical Specifications W/ Power Fog Industrial
Technical Specifications Power Fog Industrial and Fog Burst Length: 15.64 in / 39.7 cm Width: 18.73 in / 47.6cm Height: 9.88 in / 25 cm Net Weight: 32 Lbs/ 14.5 kg Power Rating: 120 Volt A.C. 50/60 Hz. 14 A. 220 Volt A.C. -
Page 6: Fog Burst Setup
Fog Burst Setup To connect the Fog Burst to the Power Fog Industrial. 1) Remove the 4" ducting adapter from the front/side of the Power Fog Industrial /9D (if equipped) 2) Position the Fog Burst on front of the Power Fog Industrial with the valve assembly facing upwards. -
Page 7: Optional Timer/ Duration Remote Operation
No Light: Indicates problems; a loss of power or remote is not connected. If these fail to correct the problem, contact your local Ultratec Special Effects dealer. Note: To operate the Fog Burst using the Timer/ Duration Remote, the DMX Address must be set on 555. -
Page 8: Show Control Operation
Show Control Operation Show control is achieved by connecting a “Dry” or zero voltage contact to the show control terminals. The Power Fog Industrial 9D requires no power to signal the fog, only one set of contacts that close for the entire fogging cue. -
Page 9: Maintenance Procedure
Maintenance Procedure Exterior The casing of the Fog Burst is steel with a powder paint coating. To clean simply disconnect power source and wash with a cloth and mild soap and warm water. Troubleshooting Check gas pressure: Is compressed gas getting to the solenoid valve? Check that the air line is connected to a suitable air source at the required pressure. -
Page 10: Warranty
Hardware products come with a five-year warranty on parts and labor. If the unit in question has a material defect or fault that is caused in manufacturing, Ultratec Special Effects will provide free parts and labor to remedy the equipment. Ultratec Special Effects service department must be advised in a timely manner after defect appearance and the date of warranty request must be within five years of sale/purchase. -
Page 11: Contact Information
Contact Us Head Office Europe Office Ultratec Special Effects Ultratec Special Effects GmbH 1960 Blue Heron Drive Dieselstrasse 30-40 London, Ontario N6H 5L9 60314 Direct: 519-659-7972 Frankfurt am Main Toll Free: 800-388-0617 Germany Fax: 519-659-7713 Direct: 49-69-87-000-1850 Fax: 49-69-87-000-1899 USA Shipping Address...
