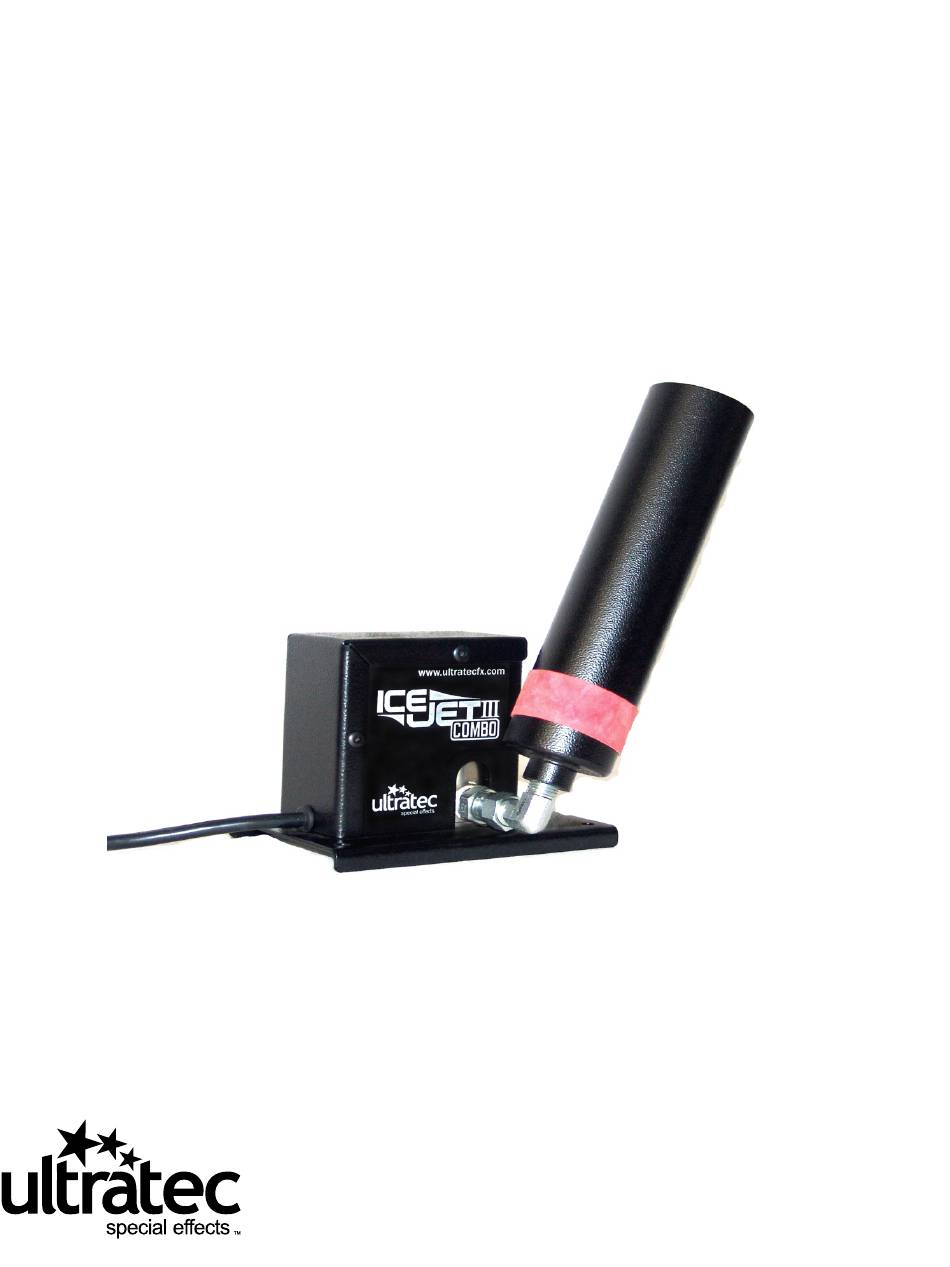

- Page 1 IceJet III Operator’s Manual www.ultratecfx.com VER. 08.12.2024...
-
Page 2: Table Of Contents
Table of Contents Warning ..................3 Safety Precautions ..............3 Technical Specifications ............. 4 Operating Procedure ..............5 CO2 Data ..................6 Warranty ..................7 Contact Information ..............8 Note: Please read entire manual before operating the IceJet III www.ultratecfx.com... -
Page 3: Warning
Warning Important Safety Instructions: 1.Do not remove the outer case. 2.Ensure that this unit is grounded at all times. Failure to do so may result in serious injury 3.High pressure gas dangers. Safety Precautions 1.Ensure that any operation of the machine is supervised by suitably trained and authorized personnel. 2.Do not modify or use an IceJet which has been damaged in any way . -
Page 4: Technical Specifications
Technical Specifications Model: IceJet III Part Number: CLF-2149 120 Volt 50/60 Hz. CLF-2151 220-240 Volt 50/60 Hz. Length: 6 in 15 cm Width: 6.5 in 16.5 cm Height: 10.4 in 26.5 cm Net Weight: 6 lbs 13 kg Power Rating: 120 Volt A.C. -
Page 5: Operating Procedure
Operating Procedure 1.Before operating the IceJet a site review is required. As the IceJet is capable if dispensing large quantities of Co2 in a room the air exchange properties of the room must be determined. (See sample calculation below) Due to the nature of the Dewar tank (low pressure system) some Co2 is consumed to keep the liquid Co2 cold. -
Page 6: Co2 Data
CO2 Data 1 pound = 8.741 (scf) gas 1 pound = 0.118 (gal) liquid Specific gravity = 1.53 for gas Air has 21% oxygen. CO2 is heavier than air and will sink to lower areas and displace the air. OSHA exposure 0.5% for 8 hours (TWA) or 3% for 15 minutes (STEL) Things to watch for when using CO2 are the reduction of the oxygen content and the collecting of CO2 in low or confined spaces. -
Page 7: Warranty
Hardware products come with a five-year warranty on parts and labor. If the unit in question has a material defect or fault that is caused in manufacturing, Ultratec Special Effects will provide free parts and labor to remedy the equipment. Ultratec Special Effects service department must be advised in a timely manner after defect appearance and the date of warranty request must be within five years of sale/purchase. -
Page 8: Contact Information
Contact Us Europe Office Head Office Ultratec Special Effects Ultratec Special Effects GmbH 1960 Blue Heron Drive Dieselstrasse 30-40 London, Ontario N6H 5L9 60314 Direct: 519-659-7972 Frankfurt am Main Toll Free: 800-388-0617 Germany Fax: 519-659-7713 Direct: 49-69-87-000-1850 Fax: 49-69-87-000-1899 USA Shipping Address...
