Operation Manual

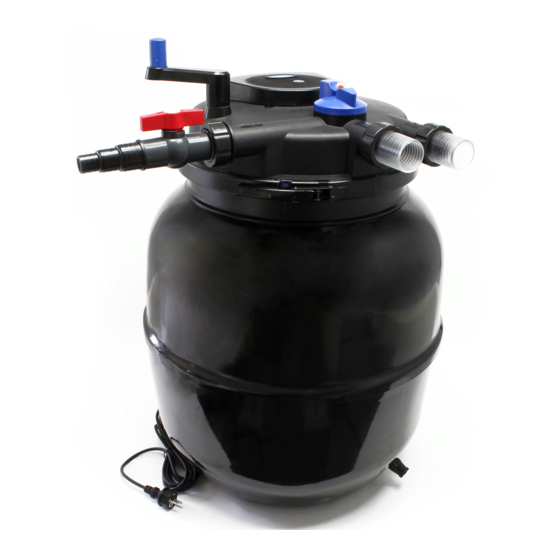

Pressure Pond Filter CPF-50000
51187
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SunSun CPF-50000
Summary of Contents for SunSun CPF-50000
- Page 1 Operation Manual Pressure Pond Filter CPF-50000 51187 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
- Page 2 The information contained in this document may alter at any time without previous notice. It is prohib- ited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 Introduction Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli- ents take some basic safety precautions when using this device. Please read the operation in - structions carefully and make sure you have understood its content. Keep these operation instructions safe.
- Page 4 The universal-hose stepped tails can be shortened according to the hose diameter if neces- sary. Attach hoses and hose clamps. Although the ultraviolet radiation is the lowest of the ionizing radiation, it can be dangerous for people and other organisms as well. UV-radiation with longer wavelengths can destroy the chemical bonds of the organic molecules, too.
- Page 5 Check all connections regarding their tightness. The device is in operation when the mains power plug is plugged in. Technical data Model CPF-50000 Power consumption (W) Power supply 230 V / 50 Hz Flow rate max. ( ℓ ⁄...
- Page 6 Description Water inlet from pump to filter Water outlet from filter to pond Cleaning outlet from filter to sewerage or flower bed Our pressure filters are an ideal and easy filter system for your garden pond. Compared to commonly used filter systems, our filters dispose of various advantages: large cleaning capacity, ...
- Page 7 Commissioning of the pressure filter Before commissioning make sure that all cables and hose connections are installed correctly. The switch must be set to “filter function.” Before the very first operation, the safety instructions have to be read: 1. Switch on the pump. Attention! The UV lamp must not be operated before the pump delivers water.
- Page 8 Connecting the water inlet The pump is connected to the nozzle showing the direction of arrow to the filter. Make use of a hose diameter that is equal to that one of the pump outlet. Saw off the unused diameter of the hose nozzle. Connecting the water outlet The hose nozzle showing direction of arrow from the filter is the outlet towards the pond.
- Page 9 A: Water inlet The pump is connected by means of a pressure hose to the water inlet. B: Swirl system By means of gravity, floating particles and contaminants settle down. C: Biological cleaning Microorganisms accumulate on the filter sponge pores. The blue and yellow filter sponges dif- fer in size and density.
- Page 10 Connecting the pump Make sure that the drain into the pond is placed in a clean place. If the drain is blocked, there can be a higher pressure. This can lead to a leak inside the filter, thus effecting a complete drainage of the pond.
- Page 11 Installation example with pump, filter system, flower bed watering, and a small water course © by WilTec Wildanger Technik GmbH Item 51187 Page 11 http://www.WilTec.de http://www.aoyue.eu 2021-1 http://www.teichtip.de...
- Page 12 Maintenance and cleaning Waste water outlet The waste water outlet allows the drainage of polluted water into drains or a flower bed after you have cleaned the filter sponges. Cleaning the filter sponges Over the time, contaminants accumulate inside the filter sponges, and their cleaning effective- ...
- Page 13 When you install them, both must be precisely aligned. Replacing the UV bulb If multiply the algae, the lamp needs to be replaced. The UV Indicator shows, if the bulb lights or not. The bulb should be replaced after every season. Cleaning of the quartz tube and replacing of the UV bulb 1.
- Page 14 Explosion view and part list № Name № Name № Name UV head with cable Tube Inlet and outlet nut O-ring 1 71×2.8 ⌀ 12-1 Filter basket base 21-1 Inlet and outlet 32 ⌀ Rubber lining 12-2 Filter basket cover 21-2 Inlet and outlet 38 ⌀...
- Page 15 Disposal regulations EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple- mented in the law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo.
