Operation Manual

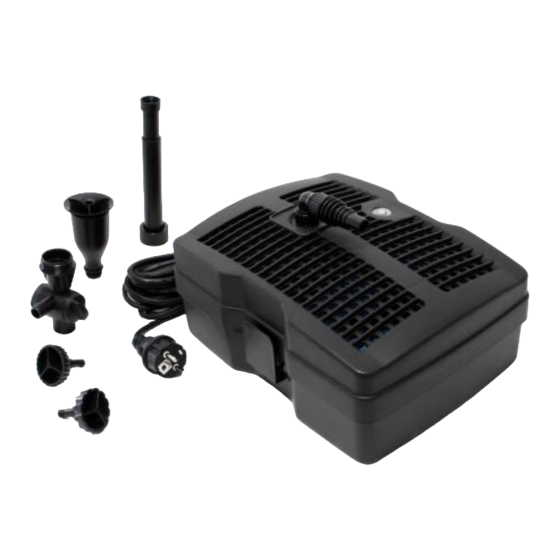

SunSun CUF 3in1 Filter
50945, 50946, 50947
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SunSun CUF Series
Summary of Contents for SunSun CUF Series

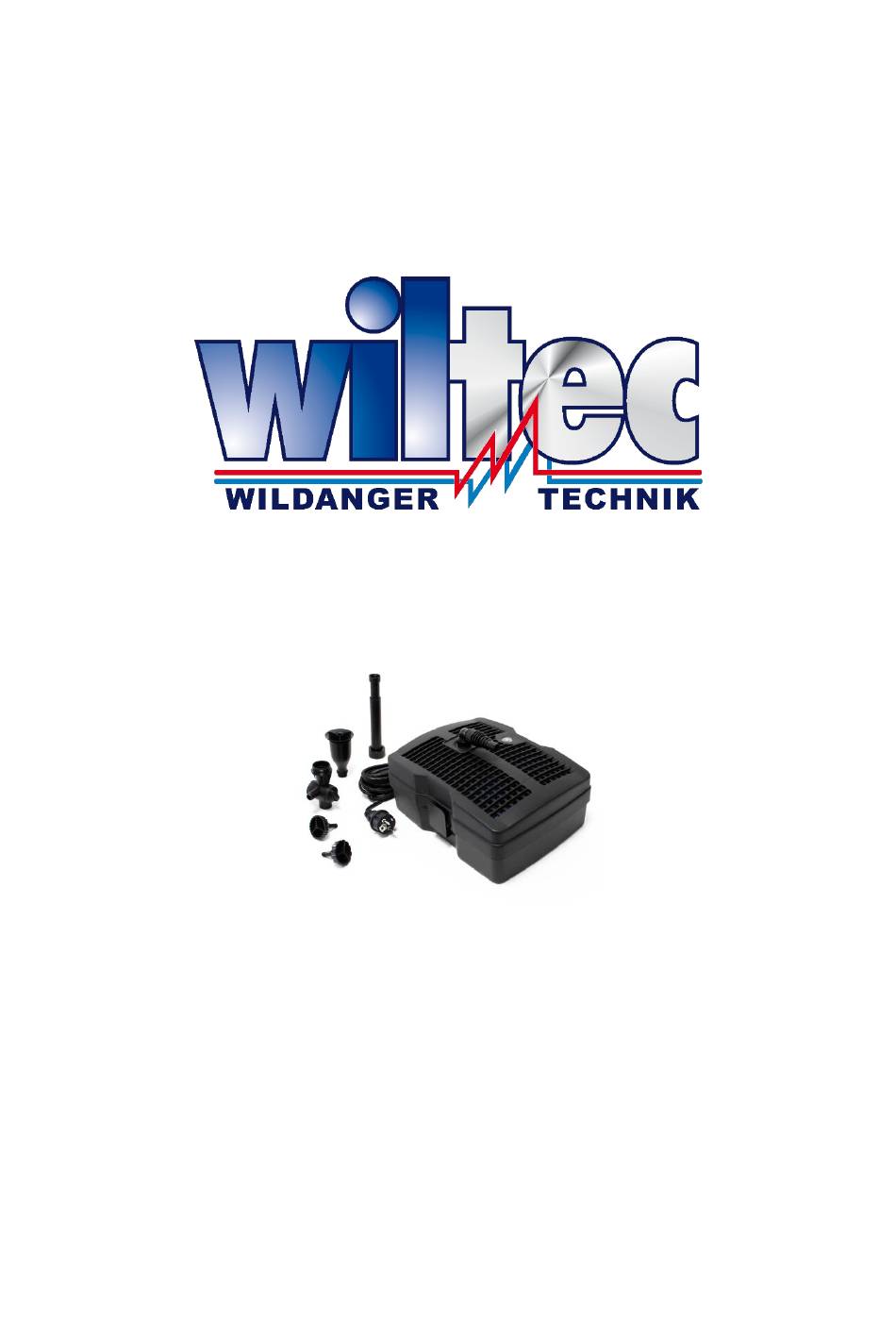

- Page 1 Operation Manual SunSun CUF 3in1 Filter 50945, 50946, 50947 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignificantly.
- Page 2 The information contained in this document is subject to change without prior notice. No part of this document can be copied or duplicated in another form without the prior written consent of WilTec Wil- danger Technik GmbH. The WilTec Wildanger Technik GmbH assumes no liability for any errors in this user manual or the connection diagram.
- Page 3 Before the first time use, please read this instruction and acquaint this equipment. In order to use the equipment safely, the following secure suggestions should be abided. Caution CUF is UV clarifier equipment which can be fixed. It contains water pu,p and one piece of UV lamp. Any damage on the equipment or unmerited operation will bring dangerous radiation to the skin and eyes.
- Page 4 ITEM VOLTAGE POWER UVC LAMP H-MAX Q-MAX OUTLET 1/2’’-3/4’’-1’’ CUF-2500 220-240V/50HZ 1.6M 1000L/H 1/2’’-3/4’’-1’’ CUF-5000 220-240V/50HZ 2.0M 2000L/H 1/2’’-3/4’’-1’’ CUF-6000 220-240V/50HZ 2.5M 2500L/H © by WilTec Wildanger Technik GmbH Seite 4 http://www.WilTec.de http://www.aoyue.eu März 2020 Version http://www.teichtip.de...
- Page 5 PART LIST Outlet Filter base O-ring Elbow pipe 1 adapter Connection pipe 2 Filter cover Water pump sponge Fountain head(tent type) flange UV-C lamp Fountain head(rain type 1) T-joint Elbow pipe 2 Fountain head(rain type 2) screw Filter boxes Fountain sets base Runner plate Connection pipe 2 ©...
- Page 6 UV-C lamp shell body 45*4 o-ring UV-C device head with cable Spiral sleeve Quartz glass tube sleeve 5-10 Safety clasp Quartz glass tube 60*3.1 o-ring Fasten screw Uvc bulb 11-1 Impeller cover 11-3 rotor 11-5 shaft 11-2 Rubber bearing 11-4 O-ring 11-6 Shell body...
- Page 7 Caution CUF is UV-C clarify equipment which can be combined. It contains water pump and one piece of UV-C lamp. Any damage on the equipment or unmerited operation will bring dangerous radiation to the skin and eyes. So if there is any damage of the equipment, it can not be used any more. This equipment is not intend for use by person (including children) with reduced physical, sensory of mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concern- ing use of the equipment by a person responsible for their safety.
- Page 8 2.Through the working of water pump, water flow from the filter cover to filter sponge, and then to the UV-C lamp. Inside of the UV-C lamp the harmful bacteria and algae will be killed. Then the water flow to outside finally. 3.The UV-C lamp was designed as a closed device, no UV-C will scattering.
- Page 9 Disposal regulations EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple- mented in the law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo.
