Instruction manual

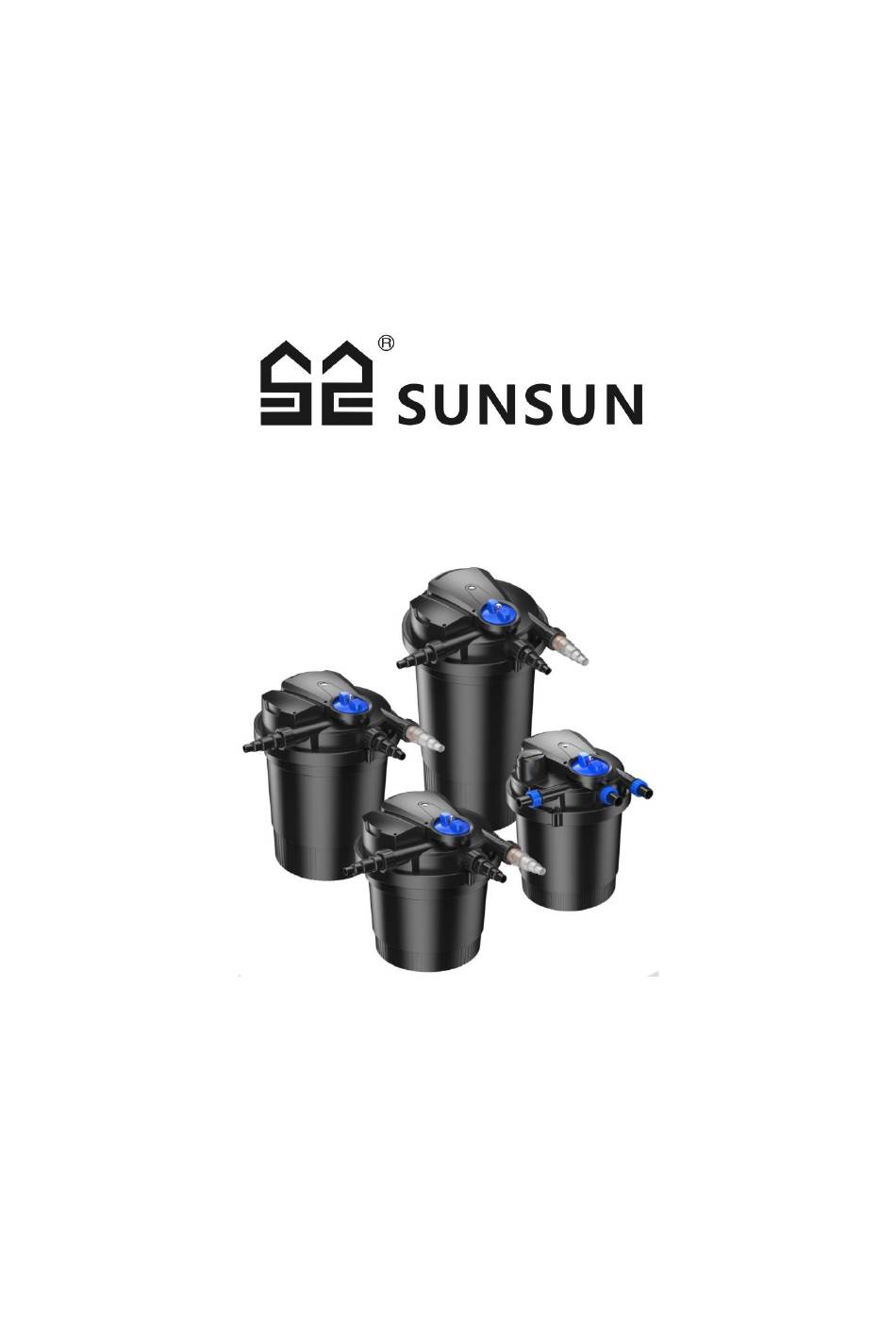

SunSun CPA Pressure Pond Filter
–
51627
51633
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for SunSun CPA-2500
Summary of Contents for SunSun CPA-2500
- Page 1 Instruction manual SunSun CPA Pressure Pond Filter – 51627 51633 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps and technical data may deviate insignificantly due to continuous further...
- Page 2 The information contained in this document may alter at any time without prior notice. No part of this document may be copied or otherwise duplicated without prior written consent. All rights reserved. WilTec Wildanger Technik GmbH cannot be held liable for any possible mistakes in this operating man- ual, nor in the diagrams and illustrations shown.
- Page 3 Introduction Thank you for choosing to purchase this quality product. To minimise the risk of injury, we ask you to always take some basic safety precautions when using this product. Please read this operating manual carefully and make sure that you understand it. Keep these operation instructions in a safe place.
- Page 4 • Although ultraviolet radiation is the lowest in energy of all types of ionising radiation, it can be harmful to human beings and other organisms. Even UV radiation with a bigger wavelength is already able to destroy chemical bonds of organic molecules. It is therefore advisable to use technical UV sources responsibly.
- Page 5 Symbols Water inlet from pump to filter Water outlet from filter to pond Cleaning outlet from filter to sewers or flowerbed • The pressure pond filter with integrated UV clarifier is a pressure filter system for biologically and mechanically filtering normal pond water with a temperature between +4 ℃ and 35 ℃. This pressure pond filter is only intended for private use for cleaning garden ponds with or without fish.
- Page 6 Working principle Inlet The pump is connected to the inlet via a pressure hose. Vortex system Gravity is used to separate suspended and muddy particles. Mechanical filtering Dirt particles are absorbed at the surface of the filter sponges before the water reaches the inner part of the filter.
- Page 7 Definition: Clear water We speak of clear water when you see the fish and pond bottom at a depth of 1 m. Installing the filter 1. Install the filter so that it is protected against flooding and cannot fall into the pond. It should therefore be placed at a minimum distance of 2 m from the pond.
- Page 8 Attention! After reinstallation, the pressure filter will reach its full biological cleaning efficiency after a few weeks. The bacteria can only work at best at a temperature of +10 ℃. Cleaning the filter sponges Suspended and dirt particles collect in the filter sponges. These accumulations reduce the efficiency of the filter;...
-
Page 9: Troubleshooting
Cleaning the quartz glass sleeve and replacing the UV lamp 1. Unscrew the 4 screws on the lid. 2. Remove the UV unit and clean the quartz glass sleeve with a damp cloth. 3. Remove the screw on the quartz glass sleeve. 4. - Page 10 Exploded views and parts lists 51627 № № № Designation Designation Designation Screw 1 O-ring 3 UV unit Gasket Container O-ring 1 Inlet and outlet Screw 2 Connecting nut for inlet UV lamp Washer and outlet O-ring 2 Filter sponge Bearing Quartz glass sleeve set Filter sponge inset...
- Page 11 51628 № № № Designation Designation Designation Screw 1 Threaded ring UV unit Gasket O-ring 3 O-ring 1 Inlet and outlet Container Flow ring (for transparent UV lamp Screw 2 set) Connecting nut for inlet O-ring 2 Washer and outlet Quartz glass sleeve set Filter sponge Bearing...
- Page 12 51629 № № № Designation Designation Designation Screw 1 Gasket Filter basket UV unit Inlet and outlet Threaded ring Flow ring (for transparent O-ring 1 O-ring 3 set) Connecting nut for inlet UV lamp Container and outlet O-ring 2 Filter sponge Screw 2 Quartz glass sleeve set Filter sponge inset...
- Page 13 51630 № № № Designation Designation Designation Screw 1 Gasket Bearing UV unit Inlet and outlet Cleaning set Flow ring (for transparent O-ring 1 Motor set) Connecting nut for inlet UV lamp Cover of filter basket and outlet O-ring 2 Filter sponge Bio balls Quartz glass sleeve set...
- Page 14 51631 № № № Designation Designation Designation Screw 1 Threaded ring UV unit Gasket O-ring 3 O-ring 1 Inlet and outlet Container Connecting nut for inlet UV lamp Screw 2 and outlet O-ring 2 Filter sponge Washer Quartz glass sleeve set Filter sponge inset Bearing Cap nut...
- Page 15 51632 № № № Designation Designation Designation Screw 1 Gasket O-ring 3 UV unit Inlet and outlet Container Connecting nut for inlet O-ring 1 Screw 2 and outlet UV lamp Filter sponge Washer O-ring 2 Filter sponge inset Bearing Quartz glass sleeve set Drain tube Cleaning set Cap nut...
- Page 16 51633 № № № Designation Designation Designation Screw 1 Inlet and outlet Rubber seal Connecting nut for inlet UV unit Threaded ring and outlet O-ring 1 Filter sponge Cover of filter basket UV lamp Filter sponge inset Bio balls O-ring 2 Drain tube Base of filter basket Quartz glass sleeve set...
- Page 17 Technical specifications Inlet and out- UV power Max. flow Capacity (ℓ⁄h) Model Item number ℓ ⁄ rate ( let (㎜) 19–40 CPA-2500 51627 6000 (¾″–1½″) 19–40 CPA-5000 51628 9000 (¾″–1½″) 19–40 CPA-10000 51629 10,000 (¾″–1½″) 19–40 CPA-15000 51630 10,000 (¾″–1½″) 19–40...
- Page 18 Regulations for waste disposal The Waste Electrical and Electronic Equipment Directive (WEEE Directive, 2012/19/EU) of the EU was implemented in the German law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE directive are labelled with the symbol of a crossed- out wheeled rubbish bin.
