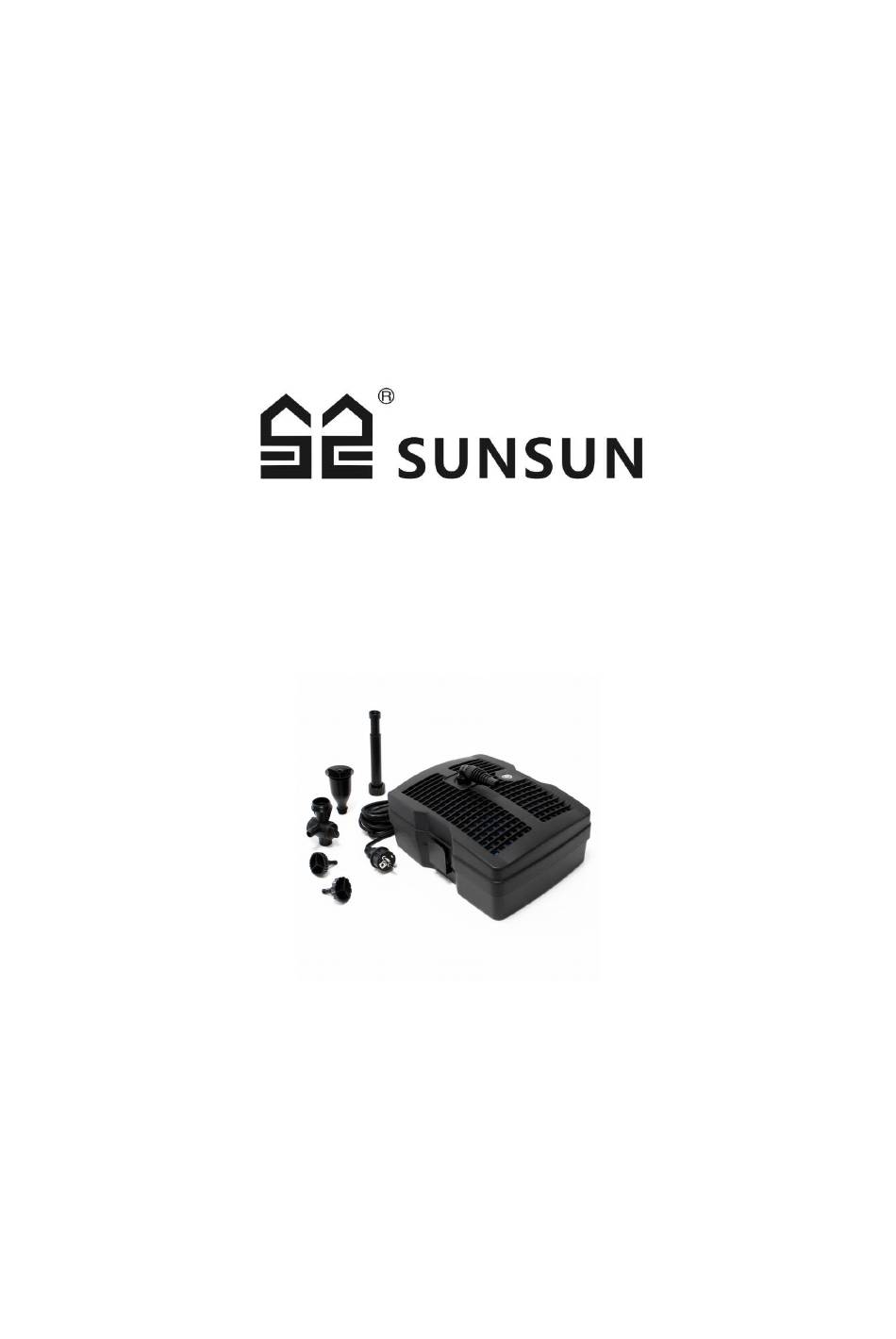

Operation Manual

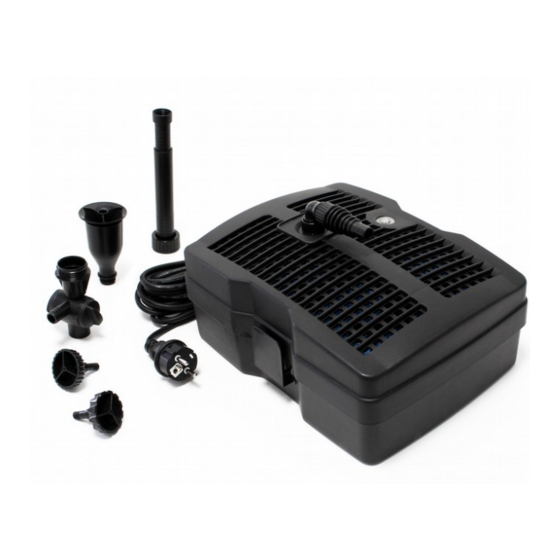

3-in-1 Filter
CUF-2500, CUF-5000, CUF-6000
50945–50947
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SunSun CUF-2500
Summary of Contents for SunSun CUF-2500
- Page 1 Operation Manual 3-in-1 Filter CUF-2500, CUF-5000, CUF-6000 50945–50947 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
- Page 2 The information contained in this document may alter at any time without previous notice. It is prohib- ited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
-
Page 3: Safety Instructions
Introduction Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli- ents take some basic safety precautions when using this device. Please read the operation in - structions carefully and make sure you have understood its content. Keep these operation instructions safe. - Page 4 Resistance The temperature of the liquid transported should not exceed + 35 ° C in continuous operation. No flammable, gas-forming or explosive liquids may be conveyed with this pump. This pump must not be used for other liquids, especially not for engine fuels, cleaning agents and other chemical products! Electrical connection The electrical connection is made to a 230 V ~ 50 Hz protective contact socket.
- Page 5 Operative range This UVC device ensures healthy fish and clear water. You can use it in ponds as well as in aquari - ums. The water is pumped through the UVC device with a pump. There it flows past a UV lamp and is exposed to UVC radiation, which destroys the bacteria, pathogens and floating algae in the water.
- Page 6 Explosion views and part lists Outlet Filter base O-ring Elbow pipe 1 Adapter Connection pipe 2 Filter cover Water pump Sponge Fountain head (tent type) Flange UV-C lamp Fountain head (rain type 1) T-joint Elbow pipe 2 Fountain head (rain type 2) Screw Filter boxes Fountain sets base...
- Page 7 UV-C lamp shell body 45×4 O-ring UV-C device head with cable Spiral sleeve Quartz glass tube sleeve 5-10 Safety clasp Quartz glass tube 60×3.1 O-ring Fasten screw Uvc bulb 11-1 Impeller cover 11-3 rotor 11-5 Shaft 11-2 Rubber bearing 11-4 O-ring 11-6 Shell body...
-
Page 8: Installation
6. Never operate the device without a filter sponge. The filter sponge should be cleaned regu - larly; we recommend cleaning it at least once a month. Operation without a filter sponge can cause damage to the pump and the UV unit from foreign bodies. Installation and cleaning Disconnect the device from the power supply when cleaning it or performing maintenance work. -
Page 9: Disposal Regulations
Disposal regulations EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple- mented in the law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo.
