USER MANUAL

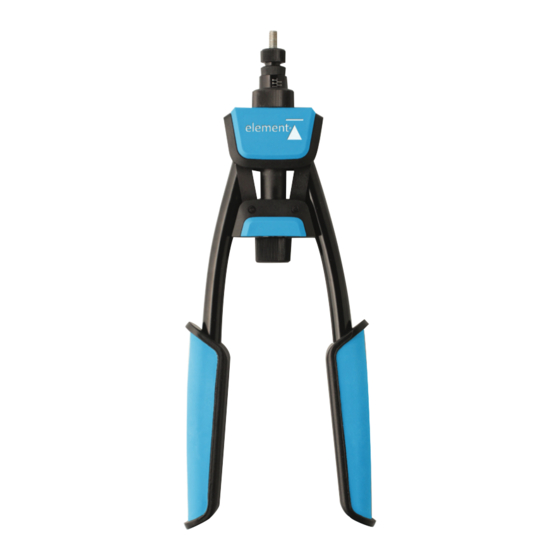

TWO HANDS BLIND RIVET NUT TOOL
MATERIAL
ALUMINIUM
STEEL
STAINLESS STEEL
* occasional use
WARNING!
Keep out of reach of children - Wear safety glasses when operating tool
M3 M4 M5 M6 M8
*
0
1
2
3
120 mm
N200
MANDRELS INCLUDED
N°
INSERT SIZE
3 / M3
M3
4 / M4
M4
5 / M5
M5
6 / M6
M6
8 / M8
M8
320 mm
Weight: 1.34 Kg
Advertisement
Table of Contents
Related Manuals for Scell-it element N200
Summary of Contents for Scell-it element N200
- Page 1 N200 USER MANUAL TWO HANDS BLIND RIVET NUT TOOL MATERIAL M3 M4 M5 M6 M8 ALUMINIUM STEEL STAINLESS STEEL * occasional use MANDRELS INCLUDED N° INSERT SIZE 3 / M3 4 / M4 5 / M5 6 / M6 8 / M8 320 mm Weight: 1.34 Kg 120 mm...
- Page 2 You have to use the right mandrel puller and anvil + counternut depending on the diameter of the insert. Insert the mandrel puller , open the arms of the hand tool, then screw on the anvil+counternut adjusting it according to the length of the insert.
