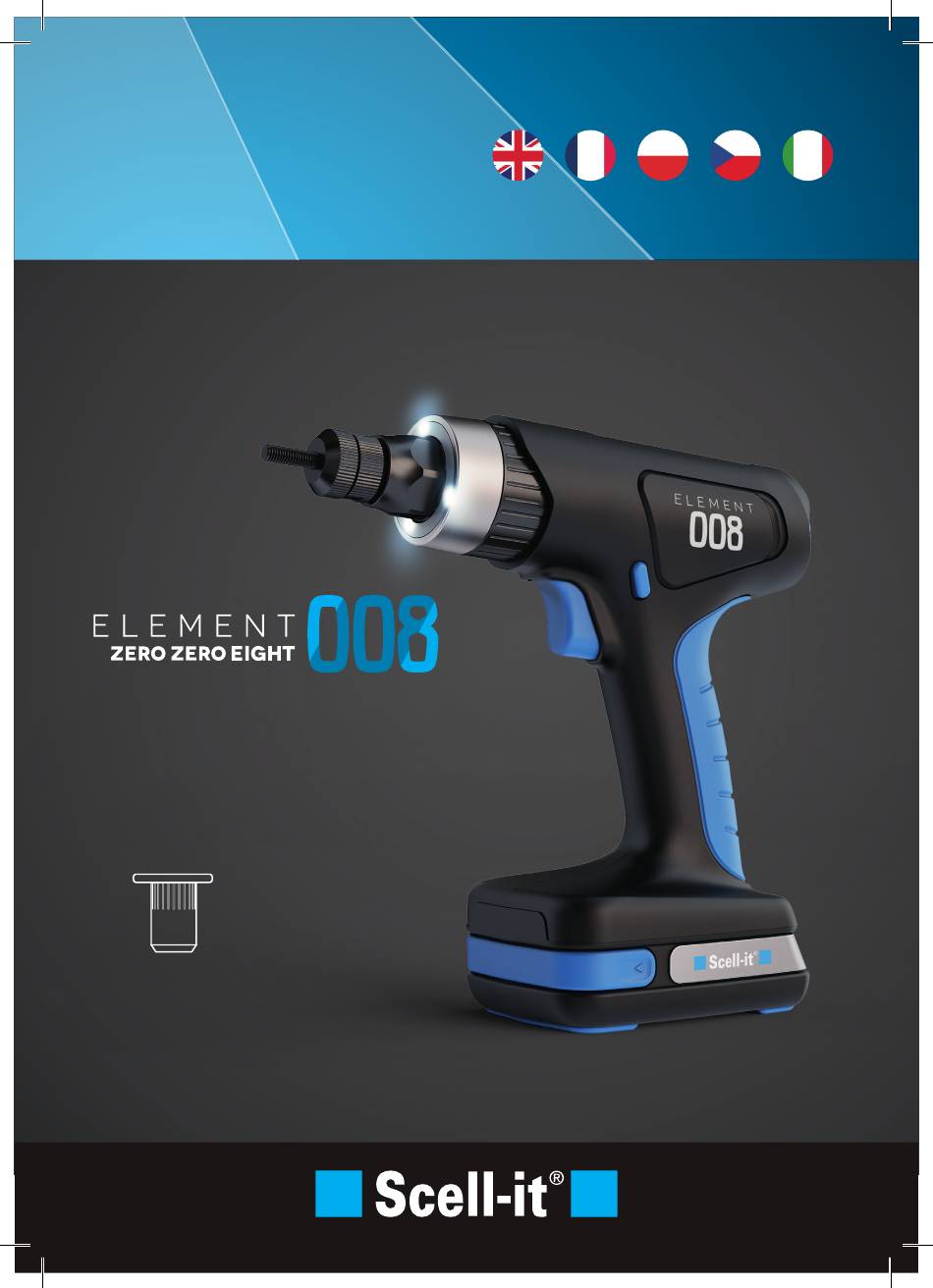

- Page 1 USER MANUAL CORDLESS RIVET NUT TOOL FOR BLIND NUT min. max. M3 - M6...
-
Page 2: Specifications
SPECIFICATIONS Mandrel Nosepiece Stroke setting dial Trigger Unlock battery buttons Battery charge test button Battery charge indicator LED lights Reverse button 215 mm 2 • E-008 - User Manual... - Page 3 • Accessories included: • 4 nosepieces and mandrels M3-M4-M5-M6 for blind nuts. (*nosepieces and mandrels M8 available as an option for installation of SPYDER XS in M8) CONTENTS REFERENCE BATTERY18V QUICK RIGID CARRYING NUT TOOL E-008 ACCESSORIES Li-Ion -2.0Ah CHARGER 18V CASE E-008-1XBAT E-008-BODY...
- Page 4 IMPORTANT 4. Remove any adjusting wrench or Specific warnings wrench before turning the power tools 1.Hold power tool insulated SAFETY on. A wrench or wrench left attached gripping surfaces, when performing part of the power tool may result in an operation where the fastener may INFORMATION personal injury.
- Page 5 battery. Overcharging shortens the lithium battery to prevent battery from a fire. If storing or disposing the battery battery service life. damage. pack, cover the terminals with a heavy insulation tape to ensure short circuit 13. Under abusive conditions, liquid b.
- Page 6 OPERATING INSTRUCTIONS ● BLIND NUT INSTALLATION: 1. Set the reverse button to the ‘screwing’ position (i.e. pushed in on the right side). 2. Manually screw the rivetnut on the mandrel 3. Insert the nut into the hole, ensuring correct alignment hole-nut-tool 4.
- Page 7 REPLACE THE MANDREL Mandrel Anvil locknut Front sleeve Ring 1. Remove the battery 2. Unscrew the ring 3. Remove from the body, separate the mandrel 4. Separate by unscrewing 5. Then reassemble the 3 parts with the new anvil and mandrel: - Screw the anvil in the front sleeve assemble the mandrel...
-
Page 8: Battery Level Indicator
BATTERY LEVEL INDICATOR 4 lights on the battery panel allows you to 100% check the remaining power. Press and hold the blue button to check the battery level: 4 lights on : 100% remaining 3 lights on : 75% remaining 2 lights on : 50% remaining 1 light on : 25% remaining The information on the battery panel can vary... -
Page 9: Troubleshooting
TROUBLESHOOTING Trouble Reason Solution Flashing LED Low battery charge or Charge or replace the battery damaged battery Tool capacity Check working limits of the tool. exceeded Tool overheating Let the tool cool down for a moment Hard to screw Worn or damaged Replace mandrel the hollow wall mandrel... -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY – EC DIRECTIVE 2006/42/EC ANNEX II 1A The manufacturer: SCELL-IT 28 RUE PAUL DUBRULE 59810 LESQUIN FRANCE +33(0) 320 329 818 declares hereby that the following product: Product designation: • E-5 / E-6 / E-T / E-7 / E-8 / E-SP / E-12 / E-HC / E-005 / E-008 / E-007 / E-007-T •... - Page 11 28 rue Paul Dubrule - 59810 Lesquin - FRANCE 48 • E-008 - User Manual...
