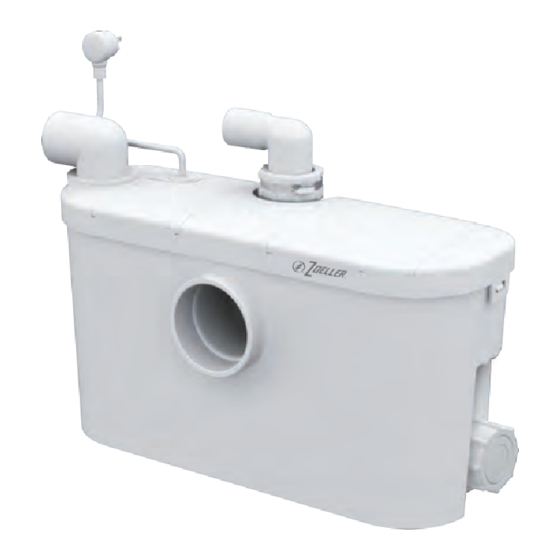

Zoeller QWIK JON CHOICE 200 Installation Instructions Manual

NOTICE TO INSTALLER: Instructions must remain with installation.
Product information presented
here re fl e s t c o c d n o i t i s n a t t m i e
of publication. Consult factory
e r a g i d r g n d c s i e r a p c n s e i r o
n i o c s n t s i n e e i c . s
Register your
Zoeller Pump Company
Product on our website:
http://reg.zoellerpumps.com/
1. Inspect all materials. Occasionally, products are damaged during shipment. If the unit is damaged, contact your dealer before using. DO NOT remove the
test plugs from the pump.
2. Carefully read all the literature provided to familiarize yourself with
future reference.
SEE BELOW FOR LIST OF WARNINGS
1. To reduce the risk of electrical shock, a properly grounded receptacle or
control box must be installed in accordance with the governing codes. Never
remove ground pin from plug.
2. Make certain that the ground fault interrupter protected receptacle or control
box is within the reach of the pump's power supply cord. DO NOT USE AN
EXTENSION CORD. Extension cords that are too long or too light do not
deliver voltage to the pump motor, and they could present a safety
hazard if the insulation were to become damaged or the connection end were
to fall into a damp or wet area.
3. Make sure the pump's electrical supply circuit is equipped with fuses or circuit
breakers of proper capacity. A separate branch circuit is recommended, sized
according to the governing electrical codes for the current shown on the pump
name plate.
4. Testing for ground. As a safety measure, each electrical outlet should be
checked for ground using an Underwriters Laboratory Listed circuit analyzer
which will indicate if the power, neutral and ground wires are correctly connected
to your outlet. If they are not, call a
5. FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS
POWER SOURCE BEFORE HANDLING. If pump is wired direct, de-energize
the circuit at the control box. DO NOT, UNDER ANY CIRCUMSTANCES,
REMOVE THE GROUND PIN. Wear insulated protective shoes and do not
stand in water. Certain plug types may include a 3-prong ground plug to help
protect against electrical shock. A properly grounded 3-prong receptacle or
control box must be installed in accordance with governing codes.
6. Installation and servicing of the pump's electrical circuits and hardware should
only be performed by a
7. Installation and maintenance of this appliance is not intended for persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety.
8. Risk of electrical shock. Do not remove power supply cord and strain relief
or connect conduit directly to the pump. If the supply cable is damaged, it
must be replaced by an authorized Zoeller Representative.
9. Pump contains oil which becomes pressurized and hot when operating. Allow
2-1/2 hours after disconnecting before attempting service.
1 . 0 u P m p is not intended for potable water due to possible contamination by oil
contained in the pump.
11. Risk of electrical shock. These pumps have not been investigated for use
in swimming pools and marine areas.
QWIK JON ®
INSTALLATION INSTRUCTIONS
PREINSTALLATION CHECKLIST
licensed electrician.
licensed electrician.
© Copyright 2022 Zoeller
CHOICE 200 SYSTEM
details regarding installation and use. These materials should be retained for
SAFETY INSTRUCTIONS
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR MAJOR
PROPERTY DAMAGE, READ AND FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND ON THE PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE INSTALLATION AND
OPERATION OF THIS UNIT AND MUST BE KEPT WITH THE PUMP.
This is a SAFETY ALERT SYMBOL.
Symbol on the pump or in the manual, look for one of the
following signal words and be alert to the potential for
personal injury or property damage.
Warns of hazards that CAN cause serious personal injury,
death or major property damage.
Warns of hazards that CAN cause personal injury or
CAUTION
property damage.
Warns of electrical shock hazards that can cause serious
personal injury, death or major property damage.
Identifies any terminal which is intended for connection to
an external conductor for protection against electrical
shock in case of a fault, or the terminal of a protective
earth (ground) electrode.
Read operator's manual.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND WARNINGS PRIOR
TO PERFORMING ANY WORK ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
®
Co. All rights reserved.
- 1 -
50 Hz
Visit our website:
www.zoellerpumps.com
REFER TO WARRANTY ON PAGE 2.
ZT0500_Eb
0422
Supersedes
1121
