For the operator
Operating instructions
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40
D-42859 Remscheid
Tel. +49 21 91 18‑0
Fax +49 21 91 18‑2810
info@vaillant.de
www.vaillant.de
multiMATIC
VRC 700f/4
AT, BE (de), CH (de), DE
Operating instructions

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the multiMATIC VRC 700f/4 and is the answer not in the manual?

Questions and answers

Related Manuals for Vaillant multiMATIC VRC 700f/4

Summary of Contents for Vaillant multiMATIC VRC 700f/4

  • Page 1 Operating instructions For the operator Operating instructions multiMATIC VRC 700f/4 AT, BE (de), CH (de), DE Publisher/manufacturer Vaillant GmbH Berghauser Str. 40 D-42859 Remscheid Tel. +49 21 91 18‑0 Fax +49 21 91 18‑2810 info@vaillant.de www.vaillant.de...
  • Page 2 ® UNIDOMO Web: www.unidomo.de Telefon: 04621- 30 60 89 0 Mail: info@unidomo.com Öffnungszeiten: Mo.-Fr. 8:00-17:00 Uhr a member of DAIKIN group � Individuelle Beratung � Komplettpakete Kostenloser Versand Über 15 Jahre Erfahrung � � Hochwertige Produkte Markenhersteller � �...

  • Page 3: Table Of Contents

    Contents Contents Overview of the end user and display functions............. 23 Operating modes ..........23 Safety ..............3 End user level ............23 Action-related warnings ......... 3 Troubleshooting ..........27 Intended use ............3 Maintenance messages ........28 General safety information ........3 Index ...................

  • Page 4: Safety

    Safety 1 not be carried out by children unless they are Safety supervised. Action-related warnings Any other use that is not specified in these Classification of action-related warnings instructions, or use beyond that specified in The action-related warnings are classified in this document shall be considered improper accordance with the severity of the possible use.

  • Page 5: Recycling And Disposal

    1 Safety Conditions: Ventilation unit is connected ▶ Do not disconnect the ventilation unit from the power mains. ▶ Clean and service the ventilation unit in accordance with the instructions for the ventilation unit. Recycling and disposal ▶ The competent person who installed your product is responsible for the disposal of the packaging.

  • Page 6: Notes On The Documentation

    Notes on the documentation 2 Notes on the documentation Product description Observing other applicable documents Design of the product ▶ 3.1.1 Radio receiver unit You must observe all operating instructions enclosed with the system components. Storing documents ▶ Keep this manual and all other applicable documents safe for future use.

  • Page 7: Main Function

    3 Product description 3.1.3 Radio outside temperature sensor 3.2.4 Hot water generation A temperature sensor measures the temperature of the wa- ter in the domestic hot water cylinder and forwards the val- ues to the control. At a low domestic hot water temperature, the control increases the temperature in the domestic hot water circuit and thus heats the water in the domestic hot water cylinder to the set domestic hot water temperature.

  • Page 8: Preventing Malfunctions

    Operation 4 Operation Preventing malfunctions ▶ Ensure that air can circulate freely around the controller, Operating structure and that the controller is not covered by furniture, cur- tains or other objects. 4.1.1 Adjustment and display levels ▶ Ensure that all radiator valves in the room where the con- The product has two adjustment and display levels.

  • Page 9: Basic Display

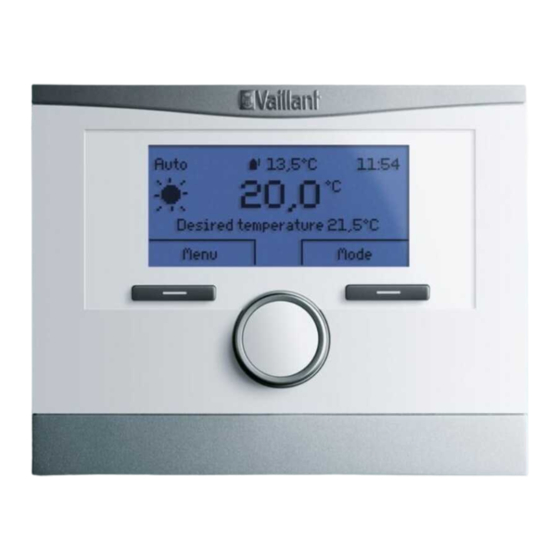

    4 Operation 4.2.3.1 Basic display for the Heating operating The control must retrieve the values from the radio receiver unit first, which can take up to 2 seconds. During that time, mode the display shows dashes (--) instead of figures. Mode Time Symbol...
  • Page 10 Operation 4 4.3.1.2 Changing the desired setting in the Cooling The display shows an element that is highlighted by white writing on a black background. A flashing, highlighted value operating mode means that you can change the value. Mode Time Effect If you do not operate the control for more than 10 seconds, periods...

  • Page 11: Operating And Display Functions

    5 Operating and display functions 4.3.2 Example, changing the display contrast Basic settings Language Language Auto 15:34 5.0 °C Date/time Date/time 19.5 °C Display Desired heating temp. 20.0 °C Back Select Menu Op. mode Press the right-hand selection button Select. ◁...

  • Page 12: Information

    Operating and display functions 5 – Overview of operating modes and the end user If you select the Yes setting in the Reset solar yield function and press the right-hand selection button OK, level you reset the previously totalled solar yield to 0 kWh. Operating modes (→...
  • Page 13 5 Operating and display functions – Menu → Information → Consumption → Current month → You can use this function to set the desired set-back Hot water → Electricity temperature for the zone. – Set-back temp. heat. is the temperature that you want to You can use this function to read the total electrical con- have in the rooms during the night or when you are away sumption for hot water in the current month.

  • Page 14: Settings

    Operating and display functions 5 5.1.2.3 Diagram: Reading the environmental yield Settings Menu → Information → Environmental yield 5.2.1 Setting desired temperatures – The diagram under Environmental yield shows a com- This function is used to set the desired temperatures for the parison between the monthly environmental yields for the zone and hot water generation.
  • Page 15 5 Operating and display functions 5.2.3 Setting time programmes 5.2.3.4 Setting time programmes quickly 5.2.3.1 Time programme settings after a voltage If, for example, you require different time periods for just one working day in the week, first set the times for the entire loss block Monday - Friday.
  • Page 16 Operating and display functions 5 5.2.3.7 Setting the Cooling time programme 5.2.3.12 Setting the High tariff time programme Menu → Time programmes → ZONE1: Cooling Menu → Time programmes → High tariff – – The time programmes are only effective in the Cooling You can use this function to set when the high tariff or the mode and the Manual cooling advanced function.
  • Page 17 5 Operating and display functions 5.2.6.1 Setting your language 5.2.10 Activating Button lock Menu → Basic settings → Display → Button lock Press the left-hand selection button repeatedly until the basic display appears. – You can use this function to activate the button lock. After Press the left-hand selection button again.

  • Page 18: Operating Modes

    Operating and display functions 5 – 5.2.12.2 Setting the low-tariff electricity rate With Time programmes, you reset all the settings you have made in the Time programmes function to the Menu → Basic settings → Costs → Low-tariff elec. rate default setting.

  • Page 19: Advanced Functions

    5 Operating and display functions 5.3.4 Setting the operating mode for hot water function on after the end of the frost protection delay time and brings the room temperature to the set desired tem- generation perature Set-back temp. heat.. Despite the heating func- Op.

  • Page 20: Messages

    Troubleshooting 6 The advanced function is automatically deactivated after The advanced function heats the water in the domestic hot 24:00 hours or you can cancel the advanced function first. water cylinder until it reaches the set desired temperature The heating installation will then return to the pre-set operat- Domestic hot water.

  • Page 21: Temporarily Setting Limp Home Mode

    6 Troubleshooting Temporarily setting limp home mode Changing the batteries If the fault message Restricted operation/ comfort pro- tection Inactive appears on the display, the heat pump has failed and the controller enters limp home mode. The auxili- ary heater now supplies the heating installation with heating energy.

  • Page 22: Care And Maintenance

    Normen und Richtlinien bei der tergents, solvents or cleaning agents that Installation beachtet wurden. contain chlorine. Während der Garantiezeit ist nur der Vaillant Werkskun- dendienst autorisiert, Reparaturen oder Veränderungen am Gerät vorzunehmen. Die Werksgarantie erlischt, ▶ Clean the casing with a damp cloth and a little solvent- wenn in das Gerät Teile eingebaut werden, die nicht...

  • Page 23: Customer Service

    Anrufen aus dem Mobilfunknetz ggf. abweichende Tarife - nähere Information erhalten Sie bei Ihrem Mobilnetzbetrei- ber) Der flächendeckende Kundendienst für ganz Österreich ist täglich von 0 bis 24 Uhr erreichbar. Vaillant Kundendienst- techniker sind 365 Tage für Sie unterwegs, sonn- und feier- tags, österreichweit. Applicability: Belgium N.V.

  • Page 24: Appendix

    Appendix Appendix Overview of the end user and display functions Note The functions and operating modes listed are not available for all system configurations. Operating modes Operating mode Setting Default setting Operating mode Heating off, Auto, Day, Set-back Auto Cooling off, Auto, Day Auto Ventilation...
  • Page 25 Appendix Setting level Values Unit Increment, select Default setting Min. Max. Air quality sensor 1 Current value Air quality sensor 2 Current value Exhaust air humidity Current value %rel Information → Consumption → Current month → Heating ---- Electricity Total value for the current month Fuel Total value for the...
  • Page 26 Appendix Setting level Values Unit Increment, select Default setting Min. Max. Bar chart Previous year to cur- kWh/month rent year comparison Information → Heat recovery → Bar chart Previous year to cur- kWh/month rent year comparison Information → Contact details → Installer Phone number Current values Information →...
  • Page 27 Appendix Setting level Values Unit Increment, select Default setting Min. Max. Mon – Sun: 00:00- Individual days and blocks Monday, Tuesday, Wednes- day, Thursday, Friday, Sat- 00:00 urday, Sunday and Monday - Friday, Saturday - Sunday, Monday - Sunday Period 1: Start – End 00:00 24:00 h:min...

  • Page 28: B Troubleshooting

    Appendix Setting level Values Unit Increment, select Default setting Min. Max. Cooling off, Auto, Day Auto 1 day at home Active, Not active Not active 1 day away from home Active, Not active Not active Ventilation boost Active, Not active Not active Party function Active, Not active...

  • Page 29: C Maintenance Messages

    Appendix Symptom Possible cause Measure Display view: Fault F. Fault: Heat generator faults Press the Reset selection button. Heat generator 1, the specific – Heat generator fault clearance? appears in the display. fault code (e.g. F.33) and the Press the OK selection button. specific heat generator appear –...

  • Page 30: Index

    Index Index Main function ................. 6 Manual cooling ..............18 1 day at home ..............18 Nomenclature ................ 5 1 day away from home............19 Operating concept ..............8 Activating Button lock ............16 Activating Heat recovery ............ 17 Operating level ..............7 Operating mode..............
  • Page 31 Index Time period, deviating times in the block ......14 Time programme Noise reduction periods ..........15 quick setting..............14 Setting................14 Time programme after switching off the voltage ....14 Ventilation................6 Ventilation boost ............... 19 Ventilation level ..............13 Zone ................
  • Page 33 ® UNIDOMO Web: www.unidomo.de Telefon: 04621- 30 60 89 0 Mail: info@unidomo.com Öffnungszeiten: Mo.-Fr. 8:00-17:00 Uhr a member of DAIKIN group � Individuelle Beratung � Komplettpakete Kostenloser Versand Über 15 Jahre Erfahrung � � Hochwertige Produkte Markenhersteller � �...
  • Page 34 0020237615_01 03.02.2017 Supplier Vaillant Deutschland GmbH & Co.KG Berghauser Str. 40 D-42859 Remscheid Telefon 021 91 18‑0 Telefax 021 91 18‑2810 Auftragsannahme Vaillant Kundendienst 021 91 5767901 info@vaillant.de www.vaillant.de Vaillant Group Austria GmbH Clemens-Holzmeister-Straße 6 1100 Wien Telefon 05 7050 Telefax 05 7050‑1199 Telefon 05 7050‑2100 (zum Regionaltarif österreichweit, bei Anrufen aus dem Mobilfunknetz ggf. abweichende Tarife - nähere Information erhalten Sie bei Ihrem Mobilnetzbetreiber)
