Summary of Contents for IKEA MATMASSIG

  • Page 1 MATMÄSSIG 505.082.99...
  • Page 2 ENGLISH For the IKEA appointed Authorized Service Centre, please refer to www.IKEA.com and select your local store for phone numbers and opening times.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Technical data Electrical connection Energy efficiency Product description Environmental concerns Daily use IKEA GUARANTEE Cooking table Cookware guidance Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage.
  • Page 5 ENGLISH Do not operate the appliance by means of an external timer • or separate remote-control system. WARNING: Unattended cooking on a hob with fat or oil can • be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the •...

  • Page 6: Safety Instructions

    ENGLISH suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. Safety instructions Installation • Make sure that the parameters on the rating plate are compatible with the Warning! The appliance must be electrical ratings of the mains power installed by the authorised supply.
  • Page 7 ENGLISH The isolation device must have a contact • Do not put flammable products or items opening width of minimum 3 mm. that are wet with flammable products in, near or on the appliance. Warning! Risk of damage to the appliance.

  • Page 8: Installation

    ENGLISH temperature, vibration, humidity, or are • Contact your municipal authority for intended to signal information about the information on how to discard the operational status of the appliance. They appliance correctly. are not intended to be used in other •...

  • Page 9: Electrical Connection

    ENGLISH Electrical connection specialized dealer. Single phase or two- Warning! Refer to Safety phase connection requires a mains cable chapters. of minimum 70°C temperature stability. Cable needs mandatory end sleeves. Warning! All electrical According to IEC regulations use for one- connections must be made by an phase connection: mains cable 3 x 4mm²...
  • Page 10 ENGLISH Main power connection 1-phase Main power connection 2-phase L1 L2 L3 N Wiring colours: Wiring colours: Yellow / green Yellow / green Blue Blue Black or brown Black Brown Tighten the terminal screws symbol comes on securely! the display after you switch on the hob for the first time, refer to Once you connect the hob to the mains, "Troubleshooting".

  • Page 11: Product Description

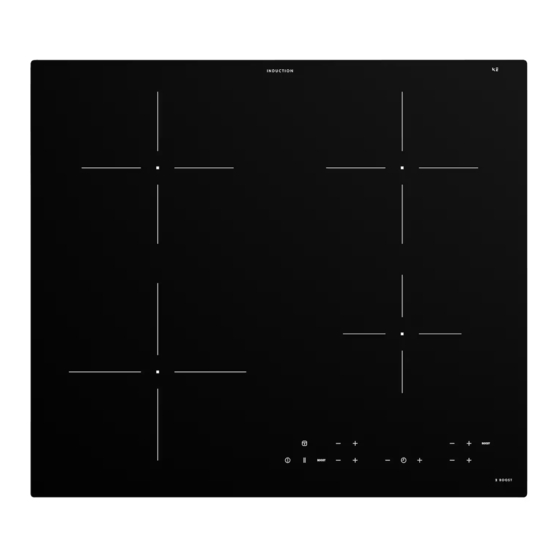

    ENGLISH Product description Cooking surface layout Single cooking zone (180 mm) 1800 W, max power 2500 W Single cooking zone (145 mm) 1400 W Control panel Single cooking zone (210 mm) 2300 W, max power 3200 W Single cooking zone (180 mm) 1800 W Control panel layout Timer display: 00 - 99 minutes.

  • Page 12: Daily Use

    ENGLISH Display Description The cooking zone operates. Pause operates. Booster operates. There is a malfunction. Refer to "Troubleshooting". + digit A cooking zone is still hot (residual heat). Lock / Child Lock / Cleaning mode operates. Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch Off operates.
  • Page 13 ENGLISH Power setting Automatic switch off after 6 hours 5 hours 4 hours 1.5 hours Using the Booster function The Booster function makes additional If cookware that is not suitable is power available for the induction cooking used, lights up on the display zones.
  • Page 14 ENGLISH and the remaining time counts backwards to To deactivate the function: 00. The indicator of the cooking zone goes • Switch on the appliance with . Do not out. set the power settings. Touch for 4 Pause seconds. The symbol comes on.

  • Page 15: Cooking Table

    ENGLISH Power exchange function • Cooking zones are grouped according to the location and number of the phases in the hob. See the illustration. • Each phase has a maximum electricity loading of 3700 W. • The function divides the power between cooking zones connected to the same phase.

  • Page 16: Cookware Guidance

    ENGLISH Heat setting Use to: Time Hints (min) 6 - 7 Gentle fry: escalope, veal cor‐ as nec‐ Turn halfway through. don bleu, cutlets, rissoles, saus‐ essary ages, liver, roux, eggs, pan‐ cakes, doughnuts. 7 - 8 Heavy fry, hash browns, loin 5 - 15 Turn halfway through.

  • Page 17: Care And Cleaning

    ENGLISH high. This may result in the damage of the When a cooking zone is active, it may hum cookware or the hob surface. If such a briefly. This is characteristic of all ceramic situation occurs, do not touch anything and glass cooking zones and does not impair wait for all components to cool down.
  • Page 18 ENGLISH What to do if... Problem Possible cause Remedy You cannot switch on the ap‐ The hob is not connected to Check if the hob is correctly pliance or operate it. an electrical supply or it is connected to the electrical connected incorrectly.
  • Page 19 The hob is connec‐ rectly connected to the elec‐ ted to one phase only. trical supply. Ensure a correct installation by calling an au‐ thorised installer. The electronics may be dam‐ Contact your IKEA store call aged. centre.

  • Page 20: Technical Data

    IKEA store or the After Sales Service. You can installer, the visit from the After find a full list of IKEA appointed contacts at Sales Service technician or dealer the end of this user manual.

  • Page 21: Environmental Concerns

    ENGLISH Energy consumption per cooking zone (EC electric Left front 188.9 Wh / kg cooking) Left rear 178.8 Wh / kg Right front 183.4 Wh / kg Right rear 176.9 Wh / kg Energy consumption of the hob (EC electric hob) 182.0 Wh / kg Energy saving •...
  • Page 22 ENGLISH...

  • Page 23: Ikea Guarantee

    Replaced parts become the property of IKEA. original parts have been used. What will IKEA do to correct the problem? • Repairs caused by installation which is faulty or not according to specification. IKEA appointed Service Provider will examine •...
  • Page 24 IKEA appliance in the dedicated IKEA documentation carefully before contacting kitchen furniture; • ask for clarification on functions of IKEA appliances. To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.
  • Page 28 21552 © Inter IKEA Systems B.V. 2021 AA-2280234-1...
