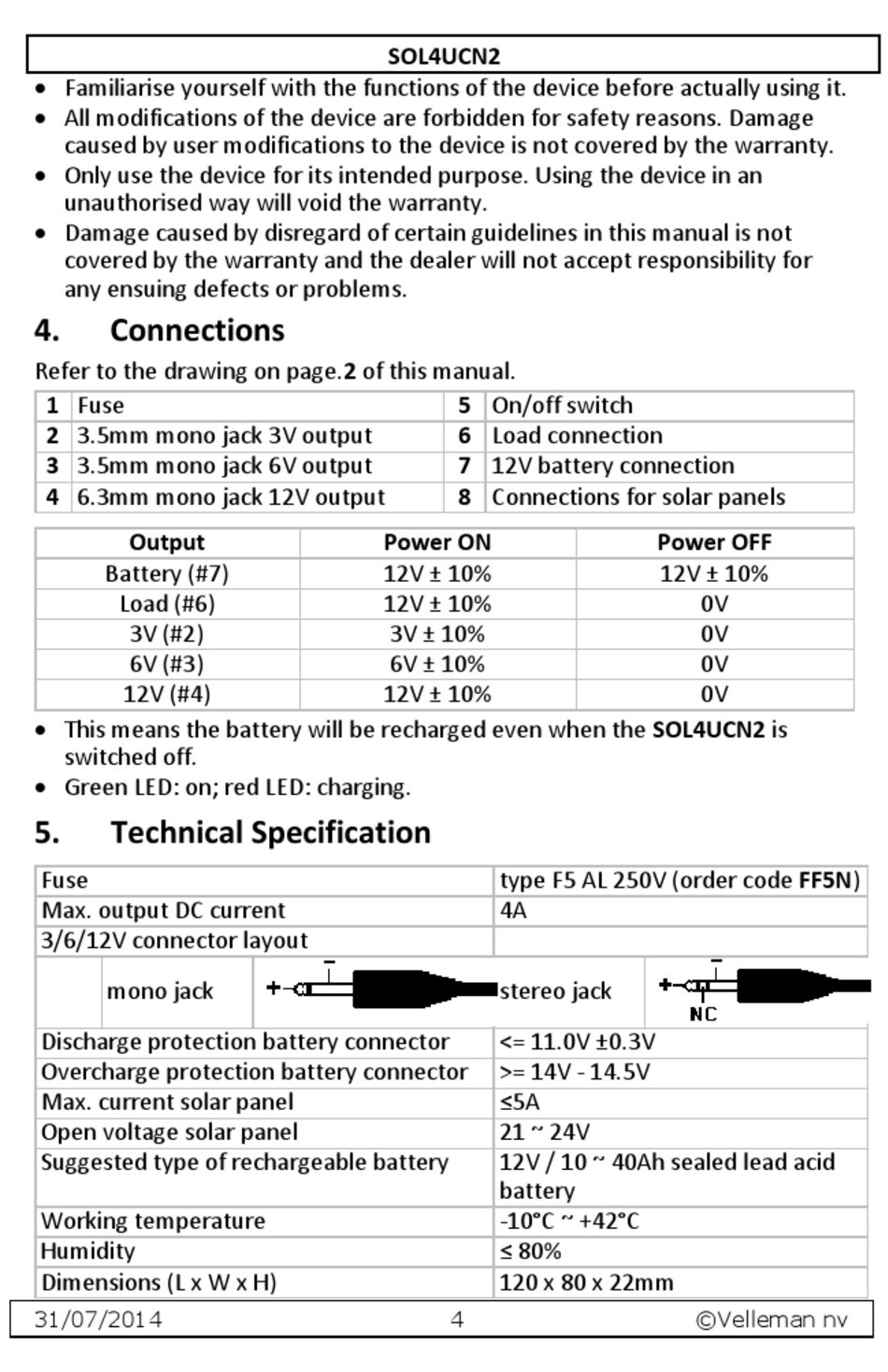

Velleman SOL4UCN2 User Manual page 4

 Familiarise yourself with the functions of the device before actually using it.
 All modifications of the device are forbidden for safety reasons. Damage
caused by user modifications to the device is not covered by the warranty.
 Only use the device for its intended purpose. Using the device in an
unauthorised way will void the warranty.
 Damage caused by disregard of certain guidelines in this manual is not
covered by the warranty and the dealer will not accept responsibility for
any ensuing defects or problems.
4. Connections
Refer to the drawing on page.2 of this manual.
1 Fuse
2 3.5mm mono jack 3V output
3 3.5mm mono jack 6V output
4 6.3mm mono jack 12V output
Output
Battery (#7)
Load (#6)
3V (#2)
6V (#3)
12V (#4)
 This means the battery will be recharged even when the SOL4UCN2 is
switched off.
 Green LED: on; red LED: charging.
5. Technical Specification
Fuse
Max. output DC current
3/6/12V connector layout
mono jack
Discharge protection battery connector
Overcharge protection battery connector
Max. current solar panel
Open voltage solar panel
Suggested type of rechargeable battery
Working temperature
Humidity
Dimensions (L x W x H)
31/07/2014
SOL4UCN2
5 On/off switch
6 Load connection
7 12V battery connection
8 Connections for solar panels
Power ON
12V ± 10%
12V ± 10%
3V ± 10%
6V ± 10%
12V ± 10%
type F5 AL 250V (order code FF5N)
4A
stereo jack
<= 11.0V ±0.3V
>= 14V - 14.5V
≤5A
21 ~ 24V
12V / 10 ~ 40Ah sealed lead acid
battery
-10°C ~ +42°C
≤ 80%
120 x 80 x 22mm
4
Power OFF
12V ± 10%
0V
0V
0V
0V
