Owner's Manual

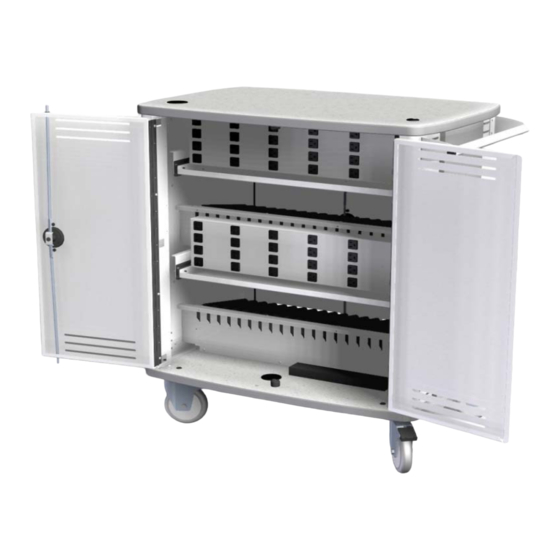

InTouch 40 Tablet Cart
55440DW
InTouch 40 Tablet Cart with cord reel
55441DW
InTouch 40 Tablet Cart with cord wraps (no cord reel)
Tablet / Student-side
Before using this product, read this manual and follow all safety and
operating instructions.
IMPORTANT:
Before you begin, please make sure all parts and proper quantities are
included. Any parts damaged during shipment must be reported within 15
days of receipt. To report information regarding damages or if you have any
questions, please call 1-800-235-1262.
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for choosing Spectrum products!
Spectrum Industries, Inc.
Chippewa Falls, WI 54729, USA
CAUTION:
Instructor-side
0110116R1 Page 1 of 11
Advertisement
Table of Contents
Related Manuals for Spectrum Industries InTouch 40 Tablet Cart
Summary of Contents for Spectrum Industries InTouch 40 Tablet Cart

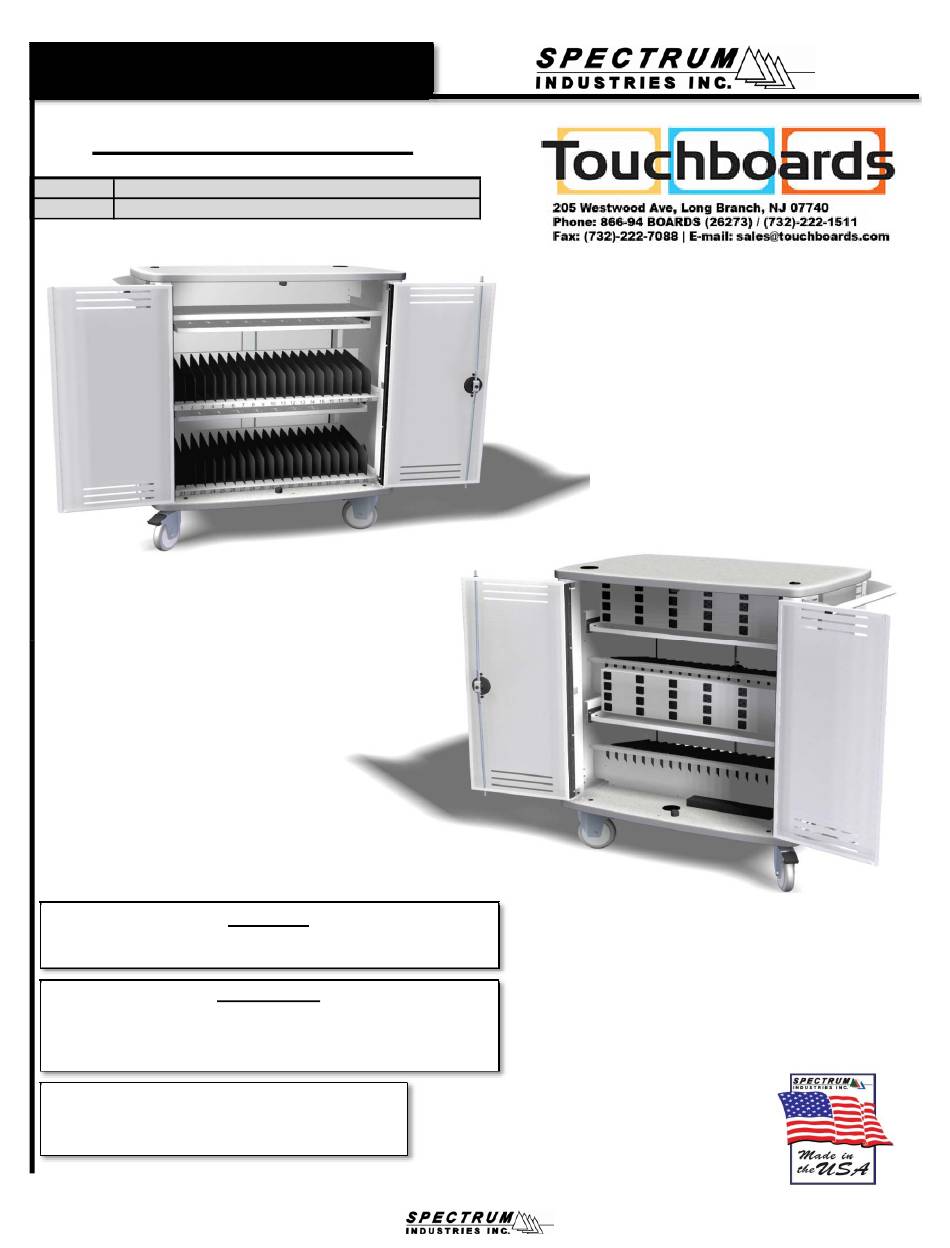

- Page 1 InTouch 40 Tablet Cart 55440DW InTouch 40 Tablet Cart with cord reel 55441DW InTouch 40 Tablet Cart with cord wraps (no cord reel) Tablet / Student-side Instructor-side CAUTION: Before using this product, read this manual and follow all safety and operating instructions.
-
Page 2: Hardware Package Contents
Safety Read this owners manual before assembly or operation Do not allow children to move cart Move slowly and carefully when mobile Hardware Package Contents (4) 052605 (1) 025039 1/4-20 x15mm JC Bolt 4mm Hex Wrench Assembly / Setup Tools Required 1. - Page 3 2. Tablet Charger Wiring (Student-Side) A. Open the student-side doors. B. Place up to 40 tablets in the cart. Figure 2. C. Leave doors open. Tablets Wire Management Tray (Pulls out from Instructor-side) Tablets Wire Management Tray (Pulls out from Instructor-side) Figure 2 0110116R1 Page 3 of 11 0110116R1 Page 3 of 11...
- Page 4 3. Tablet Charger Wiring (Instructor-Side) Tablet Charger Power Strip Tablet Charge Cord length Wire Management Tray Figure 3A A. Open the instructor-side doors and pull out the top wire management tray. B. Plug tablet charger into power strip. C. Measure out a length of charge cord as shown in Figure 3A. Note: Cord length adjustments can be made later depending on the size of tablet and location of charge port on tablet.
- Page 5 Tray Opening Tablet Charger Cord Cord Management Cutouts Figure 3C E. Secure the cord as shown with the two corresponding cord management cutouts. Figure 3C. Tablet Charger Cord bundle bundle Cord Management Cutouts Figure 3D F. Excess cord can be secured as shown with the cord management cutouts. Figure 3D & 3E. Figure 3E CAUTION Upper Wire...
- Page 6 InTouch 40 Cart Section View Tablet Charge Cord Tablet Charger Wire Management Tray Tablet Tablet Tablet Charger Tablet Figure 3F 0110116R1 Page 6 of 11 0110116R1 Page 6 of 11...
- Page 7 4. Cart Wiring #55440 InTouch 40 w/ cord reel: (Instructor-Side) Cart Power Strip #1 Cart Power Strip #2 7-outlet Power Strip Cord Reel Plug into wall outlet Figure 4A 0110116R1 Page 7 of 11 0110116R1 Page 7 of 11...
- Page 8 #55441 InTouch 40 w/ cord wraps: (Instructor-Side) Cart Power Strip #1 Cart Power Strip #2 Plug into wall outlet outlet Cord Wrap Brackets 7-outlet (see below) Power Strip Figure 4B Cord Wrap Brackets on lower side of cart Figure 4C 0110116R1 Page 8 of 11 0110116R1 Page 8 of 11...
-
Page 9: Door Stop Adjustment
8-32 x 1/2" PHM Screws Divider Panel Removal Dividers (4 Req'd) The divider panels can be removed or reconfigured to accept a wide variety of tablets and devices. A. To adjust or remove the dividers, remove the (4) 8-32 x 1/2" PHM screws securing the divider stop bracket. - Page 10 InTouch 40 Laptop Cart Options Pull-out Instructor Shelf Additional Steel Handle 15' Retractable Cord Reel (15-amp) InTouch40 Tablet Cart w/ options Pull-out Instructor Shelf Additional Steel Handle 15' Retractable Cord Reel Kit Replacement Key Set (for Instructor Laptop or storage) (mounts on left or right-max 2 per unit) (15-amp) 55142...
-
Page 11: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! We guarantee all Spectrum products to be free of all defects in materials and workmanship, for the original owner, for a period of ten years. Any item deemed defective by Spectrum or the original manufacturer, under normal use conditions, will be repaired or replaced at Spectrum’s discretion.
