Owner's Manual

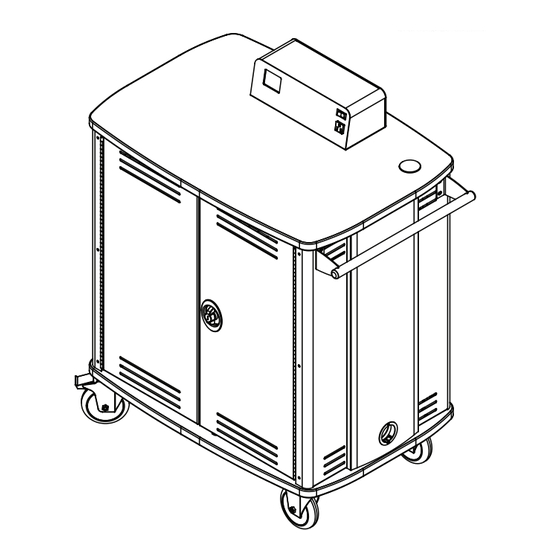

InTouch 20 Cart with Sync / Charge
InTouch 20 Cart with
™
Sync / Charge
System
55436
with cord reel
55437
with cord wraps
CAUTION:
Before using this product, read this manual and follow
all safety and operating instructions.
Before you begin, please make sure all parts and
proper quantities are included. Any parts damaged
during shipment must be reported within 15 days of
receipt. To report information regarding damages or if
you have any questions, please call 1-800-235-1262.
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
Chippewa Falls, WI 54729, USA
™
System for iPads
®
0113214R7 Page 1 of 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spectrum Industries 55436
Summary of Contents for Spectrum Industries 55436
- Page 1 To report information regarding damages or if you have any questions, please call 1-800-235-1262. To purchase parts or accessories, please contact us at www.spectrumfurniture.com 1-800-235-1262 Thank you for purchasing Spectrum products! Spectrum Industries, Inc Chippewa Falls, WI 54729, USA 0113214R7 Page 1 of 10...
-
Page 2: Hardware Package Contents
Safety • Read this owner’s manual before assembly or operation. • Do not allow children to move cart. • Move slowly and carefully when mobile. • For indoor use only. Do not install or store the unit where it will be exposed to weather. Keep unit dry. •... - Page 3 2. iPad Charger Wiring (student-side) Open the student-side doors. Place up to 20 iPads in the cart. Figure 2. Leave doors open. Wire Management Tray iPads (Pulls out from Instructor-side) Figure 2 0113214R7 Page 3 of 10...
- Page 4 3. iPad Wiring (instructor-side) A. Open the instructor-side doors and pull out the wire management tray(s). B. Measure out the length of USB cord shown in Figure 3A for each iPad. (approximately 10-11”) C. Insert the cord end (wide connector) through the opening in the tray and feed through the 10-11” of cord length. Figure 3B. D.
- Page 5 Sync / Charge & USB Power Unit Wiring blue wire sync / charge unit white wire USB cable (5 per USB power unit) power plug 2-amp auxiliary outlet USB power unit USB ports for iPads power plug white wire blue wire Figure 5 0113214R7 Page 5 of 10...
- Page 6 ™ Sync / Charge Unit Note: For best syncing results, use an Apple Mac product as the host computer with enough power switch memory to download to iPads. Windows- based products have limitations on quantity of auxiliary outlet iPads they can sync at one time. (2 amp) touch screen intro on power up...
-
Page 7: Door Stop Adjustment
Rotate the door stop until the door is positioned correctly. Re-tighten the JC bolt securely. Figure 8 Cord reel operation (#55436 only) Operating Instructions: 1. To latch cord - Pull cord out to full length. Allow the cord to retract 1-2 feet back into the reel. - Page 8 Moving the cart 1. Before moving the unit, unplug all power cords and wrap power cord or retract power cord into the reel (if equipped). 2. Be sure the casters are in the unlocked position and the doors closed. 3. Move the cart slowly and carefully. 4.
-
Page 9: Troubleshooting
Troubleshooting Note: For best syncing results use a high-powered Apple Mac product as host computer when downloading your files to the iPads through Apple Configurator software. Symptom Problem Solution Make sure all power cords are connected and plugged into a ‘hot’ wall outlet. Turn on/off On / off switch does not light up, and/or touch No power to control box or system has switch off and back on to reset breaker. -
Page 10: Warranty
Warranty WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products are manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). Our Customer Service Help Line 1-800-235-1262 is ready to provide immediate attention to any questions, comments or concerns.
