Chapter 3 Main System Application

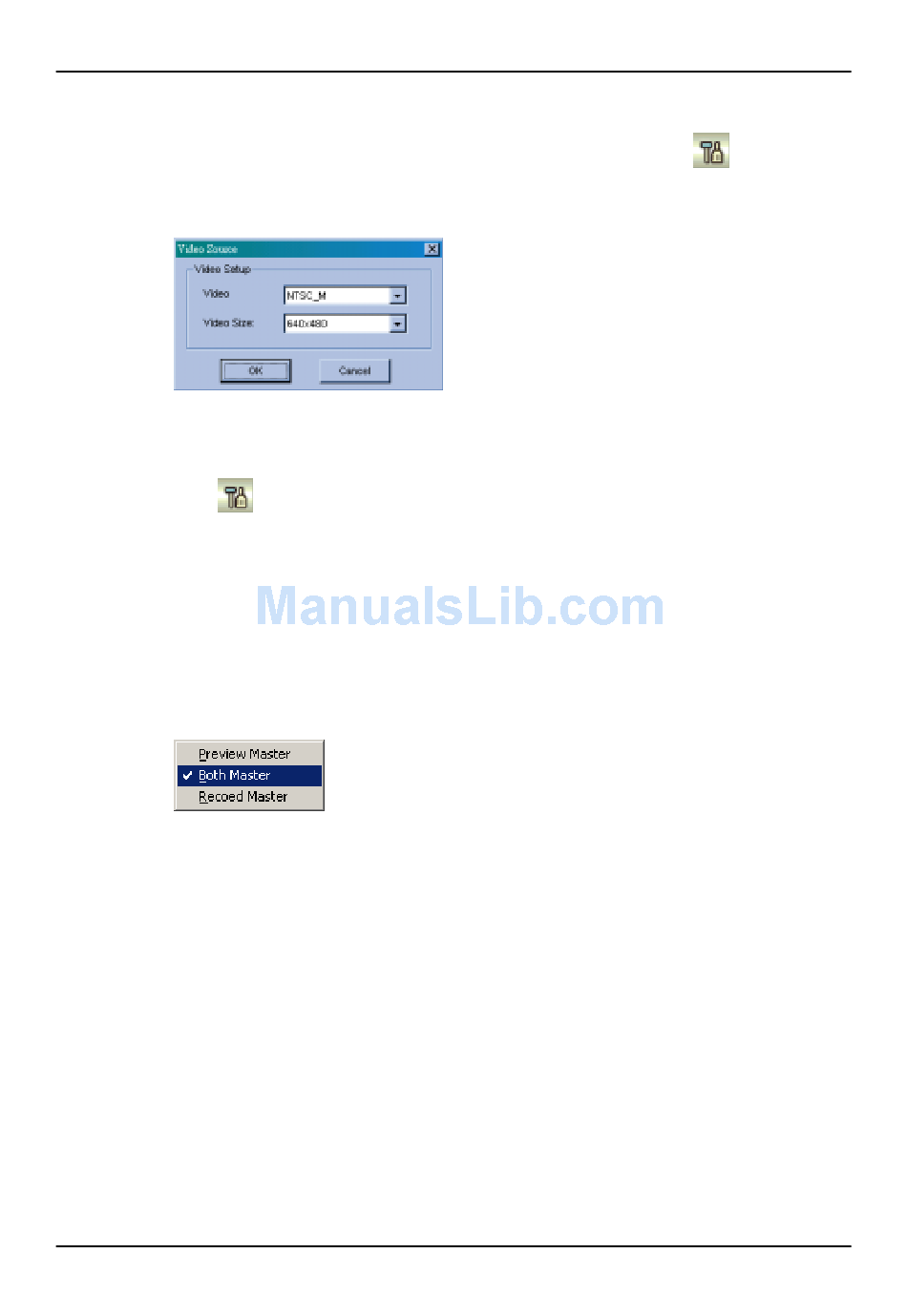

Video Source Setup

Your GV-System supports both NTSC and PAL video standards. Click [Configure] button,
select [Video Source], and use the [Video Standard] drop down menu in the dialog box to
select the correct standard for your camera.

Performance

Click [Configure] button then select "Performance" and the following menu will appear.
This function is only available to GV-650, GV-700, GV-750 and GV-800.
Preview Master: The Display speed increases because the system resource will focus on
the monitoring after clicking Preview Master icon.
Both Master: Both display and recording speed is at the average because the system
resource is allocated equally.
Record Master: The recording speed increases because the system resource will focus on
the recording after clicking on Record Master icon.
Page 47
