Chapter 1 Hardware Installation

1.1.5 Install GV-650 / GV-750 / GV-800 Hardware

The GV-650, GV-750, and GV-800 are identical in card layout; the only difference is in the
performance. All three models support the optional Real Time Display card and audio
recording card. The standard model starts from 4 ports with optional expansion to 8, 12, and
16 ports.
1. Power-off the PC.
2. Insert PCI card into PCI slots.
3. Turn on PC power. Windows will automatically detect the existing cards.
4. Now select the driver path in the CD directory \Driver\GV250, 600, 650, 700, 750, 800 to
install the driver.

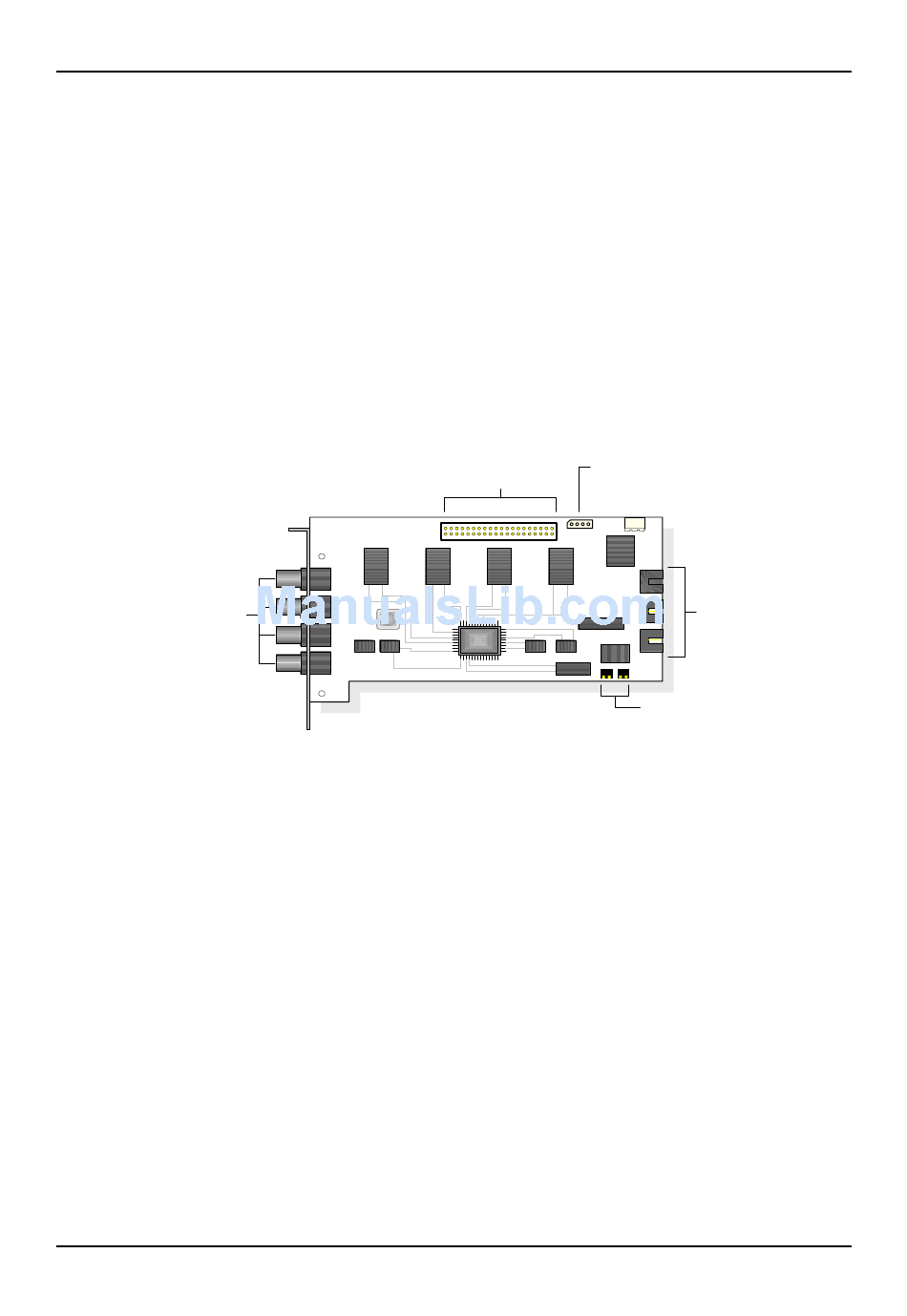

Real Time Display Card Audio Input Connector
Connector
Video Extension Port
Video Input
Watchdog Jumper
GV-650/GV-750/GV-800
Video Capture Card
