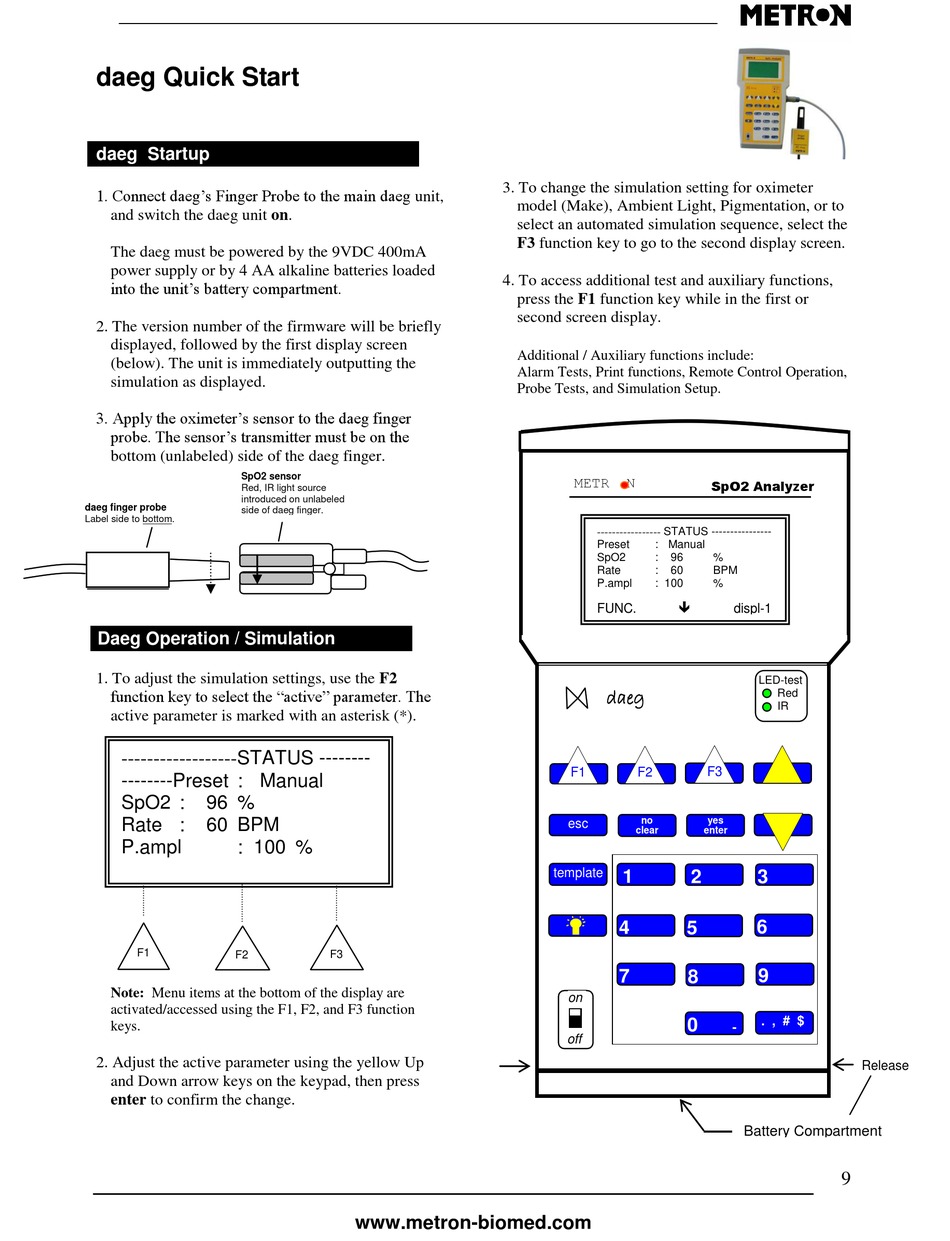

daeg Quick Start

daeg Startup
1. Connect daeg's Finger Probe to the main daeg unit,
and switch the daeg unit on.
The daeg must be powered by the 9VDC 400mA
power supply or by 4 AA alkaline batteries loaded
into the unit's battery compartment.
2. The version number of the firmware will be briefly
displayed, followed by the first display screen
(below). The unit is immediately outputting the
simulation as displayed.
3. Apply the oximeter's sensor to the daeg finger
probe. The sensor's transmitter must be on the
bottom (unlabeled) side of the daeg finger.
SpO2 sensor
Red, IR light source
introduced on unlabeled
daeg finger probe
side of daeg finger.
Label side to bottom.
Daeg Operation / Simulation
1. To adjust the simulation settings, use the F2
function key to select the "active" parameter. The
active parameter is marked with an asterisk (*).
------------------STATUS --------
--------Preset : Manual
SpO2 : 96 %
Rate : 60 BPM
P.ampl : 100 %
FUNC.
displ-1
F1
F2
Note: Menu items at the bottom of the display are
activated/accessed using the F1, F2, and F3 function
keys.
2. Adjust the active parameter using the yellow Up
and Down arrow keys on the keypad, then press
enter to confirm the change.
 
F3
www.metron-biomed.com
3. To change the simulation setting for oximeter
model (Make), Ambient Light, Pigmentation, or to
select an automated simulation sequence, select the
F3 function key to go to the second display screen.
4. To access additional test and auxiliary functions,
press the F1 function key while in the first or
second screen display.
Additional / Auxiliary functions include:
Alarm Tests, Print functions, Remote Control Operation,
Probe Tests, and Simulation Setup.
METR N
----------------- STATUS ----------------
: Manual
Preset
SpO2 : 96
Rate : 60
P.ampl : 100
 
FUNC.
daeg
F1 F2
no
esc
clear
template
1
ABC
4
JKL
7
STU
on
off
SpO2 Analyzer
%
BPM
%
displ-1
LED-test
Red
IR
F3
yes
enter
2 3
DEF GHI
6
5
MNO PQR
9
8
YZ?
VWX
. , # $
0
_-
/
Release
Battery Compartment
