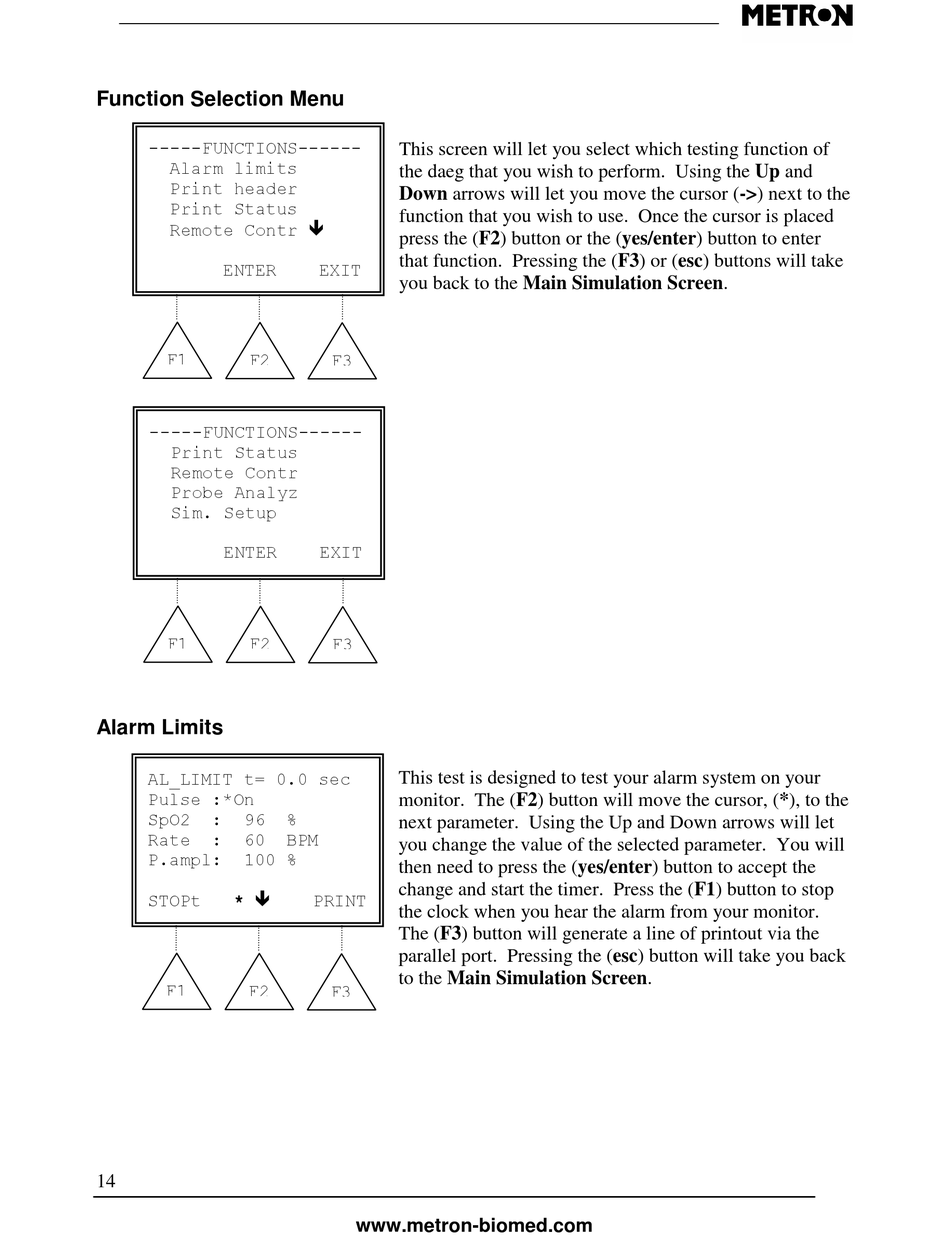

METRON daeg SPO2 User Manual page 14

Function Selection Menu
-----FUNCTIONS------
Alarm limits
Print header
Print Status
Remote Contr 
ENTER
F1 F2
-----FUNCTIONS------
Print Status
Remote Contr
Probe Analyz
Sim. Setup
ENTER
F1
F2
Alarm Limits
AL_LIMIT t= 0.0 sec
Pulse :*On
SpO2 : 96
Rate : 60
P.ampl: 100 %
* 
STOPt
F1 F2
14
This screen will let you select which testing function of
the daeg that you wish to perform. Using the Up and
Down arrows will let you move the cursor (->) next to the
function that you wish to use. Once the cursor is placed
press the (F2) button or the (yes/enter) button to enter
that function. Pressing the (F3) or (esc) buttons will take
EXIT
you back to the Main Simulation Screen.
F3
EXIT
F3
This test is designed to test your alarm system on your
monitor. The (F2) button will move the cursor, (*), to the
%
next parameter. Using the Up and Down arrows will let
BPM
you change the value of the selected parameter. You will
then need to press the (yes/enter) button to accept the
change and start the timer. Press the (F1) button to stop
PRINT
the clock when you hear the alarm from your monitor.
The (F3) button will generate a line of printout via the
parallel port. Pressing the (esc) button will take you back
to the Main Simulation Screen.
F3
