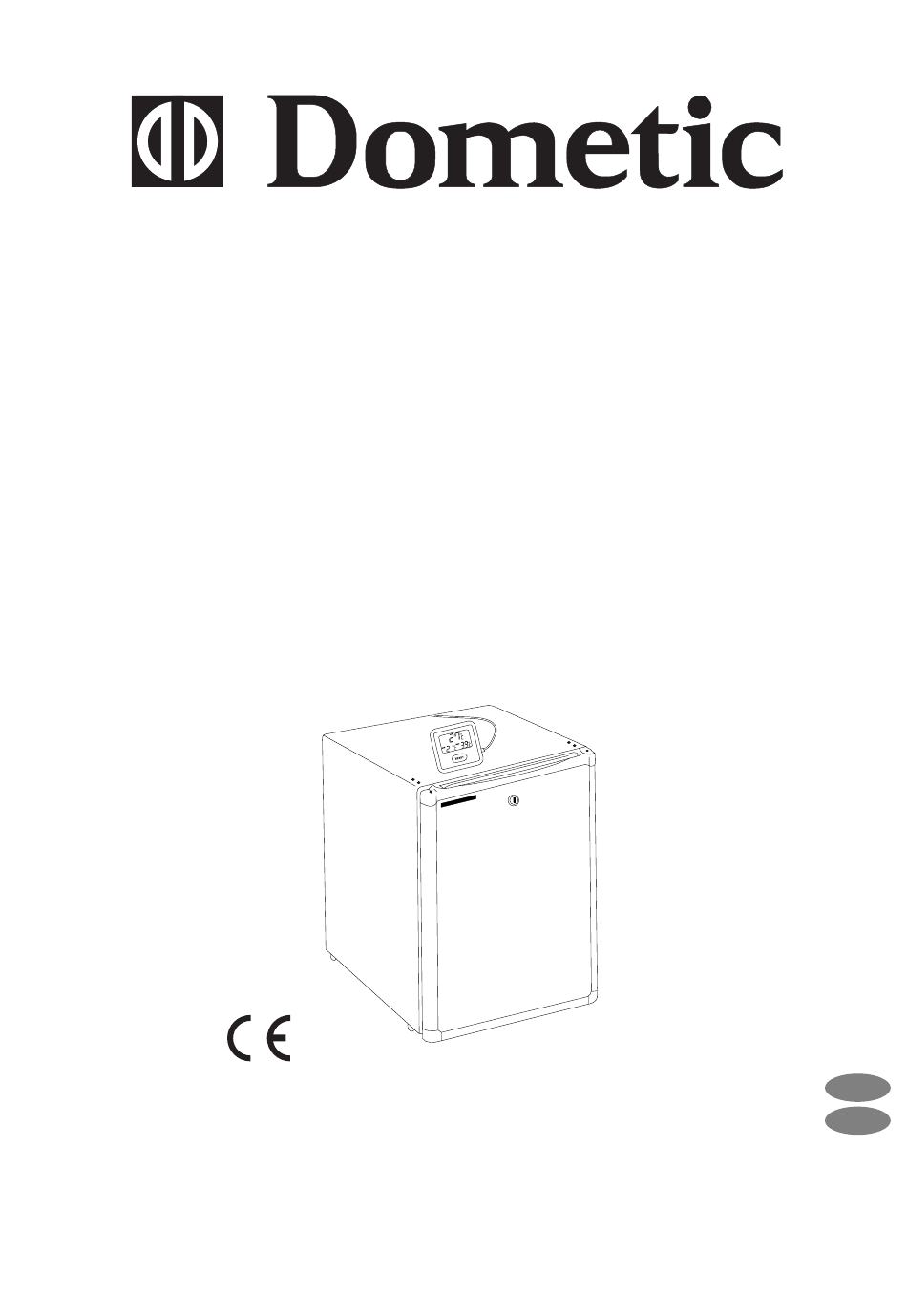

- Page 1 Health Care refrigerator RA 122 H, MR 60 Operating Instructions 207.4489.05...
- Page 2 Please read these operating instructions carefully before putting the refrigeration unit into operation. If you later sell or dispose of it, please ensure that the new owner receives these operating instructions. Please follow the installation details below carefully Guarantee is valid for products installed as described only.
-
Page 3: Table Of Contents
CONTENT CONTENT 1. Unpacking 2. View of the appliance 3. Cleaning 4. Positioning the appliance 4.1. Installation instruction 5. Using the appliance 5.1. Temperature regulation 6. Changing the feet 7. Thermometer 8. Useful suggestions 9. Defrosting, cleaning and maintenance 10. Customer service 11. -
Page 4: Unpacking
Figure 1. 1. door lock 3. thermostat knob 4. evaporator 2. thermometer 5. hinge plate DOMETIC RT DO NOT ACCEPT LIABILITY FOR LOSS OR DAMAGE OF KEYS. HOWEVER WE WOULD BE HAPPY TO SUPPLY A COMPLETE LOCK AND KEY REPLACEMENT. -
Page 5: Cleaning
3. Cleaning Clean the refrigerator thoroughly at intervals, as necessary. Remove the shelves; these, the cabinet interior and the door should be washed with a warm solution of sodium bi-carbonate. Finally wipe over with a cloth rinsed in warm water only, and dry with a clean cloth. -
Page 6: Using The Appliance
3. Ventilation must be provided as shown in alternatives A, B, C or D (fig 2-3) 4. The ventilation duct must at least measure 105mm x the width of the refrigerator 5. Only the entire cooling unit must project into the duct as shown 6. -
Page 7: Changing The Feet
6. Changing the feet Should you wish to install your Health Care refrigerator, you will not need the 40-mm feet. After having removed the 40-mm feet, you can then re-attach the 12-mm feet, located inside the 40-mm feet, to the front and rear fixing points. -
Page 8: Customer Service
In the event of a fault developing, contact your nearest Service Centre-see local telephone directory. 11. Putting into operation Technical data: Model RA 122 H MR 60 Type MF20-60 MF20-60 Gross volume 31 litre... -
Page 9: Connecting To Electrical Mains
11.1 Connecting to electrical mains The appliance may only be operated from nominal voltage mains as shown on the data plate. The appliance mains plug may be connected to a mains socket earthed in accordance with regulations. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 10: Environmental Protection Information
12. Environmental protection information The appliance does not contain any CFCs/HCFCs. Ammonia (natural hydrogen and nitrogen compound) is used as a refrigerating agent in the refrigeration unit. The ozone-friendly cyclopentane is activated as a motive agent for the PU foam insulation. Sodium chromate is used for corrosion protection (less than 2 weight % of the coolant).
