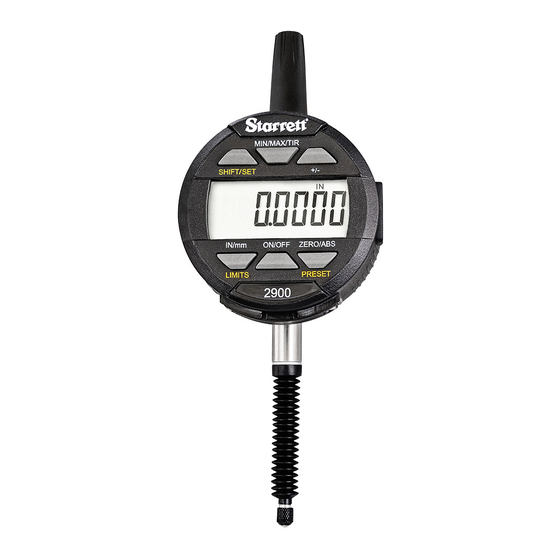

- Page 1 User Manual 2900 Capacitive Series Electronic Indicator IP67 IP67 2900-3-1 2900-3M-25 2900-3ME-25 2900-5-1 2900-5M-25 2900-5ME-25 starrett.com...
-
Page 2: Table Of Contents
2900 Capacitive Series Indicator User Manual Table of Contents Guidelines for Indicator Care ................. 2 2900 Capacitive Series Indicator Models ............3 Button Functions ................... 4 Indicator Components, Dimensions & Layout ..........5 Operating Instructions ................... 5 Setting the PRESET Function* ............... 6 Setting MIN/MAX Limits (Go/No Go)* ............. -
Page 3: 2900 Capacitive Series Indicator Models
Standard Features 2900-3M-25 09964 .01mm 25mm Metric Standard Features 2900-3ME-25 09975 .0005"/.01mm 1”/25mm English/Metric Advanced Features 2900-5-1 09967 .0005"/.01mm 1"/25mm .375" English Advanced Features 2900-5M-25 09968 .01mm 25mm Metric Advanced Features 2900-5ME-25 09978 .0005"/.01mm 1”/25mm English/Metric 2900-5-1 2900-5M-25 2900-3-1 2900-3M-25 starrett.com... -
Page 4: Button Functions
2900 Capacitive Series Indicator User Manual Button Functions functions printed in yellow; LIMITS and PRESET are used in conjunction with the SHIFT/ SET button (also yellow). To enable these functions press the SHIFT/SET button first. The SET (S) icon will appear in the top left corner. -
Page 5: Indicator Components, Dimensions & Layout
The measured value will be shown on the LCD. 9. Press and hold the ON/OFF button to turn the indicator off. If left unattended, it will turn off automatically in 30 minutes. starrett.com... -
Page 6: Setting The Preset Function
2900 Capacitive Series Indicator User Manual Setting the PRESET Function* 1. To set a value, press and hold the ZERO/ABS button until the ABS icon appears in the upper right corner of the LCD (right). The values can be SET to: +/-99.99999" or +/-9999.999mm. 2. - Page 7 To capture the maximum limit. Then press The LIMIT icon will stop flashing. The Indicator is now set up with a Press maximum and minimum limit range To exit the LIMIT mode. Press * Available on 2900-5 Advanced Features Models starrett.com...
-
Page 8: Displaying Min/Max/Tir Values
2900 Capacitive Series Indicator User Manual Displaying MIN/MAX/TIR Values* (TIR is “Total Indicator Reading”) Pressing the MIN/MAX/TIR button displays the MIN/ MAX/TIR values most recently measured. Press once for MIN (above right), twice for MAX (middle right) and three times for TIR (lower right). Press a fourth time to exit. -
Page 9: Battery Installation
To order CR2032 batteries, specify: PT99492. EDP 65650 Parts & Accessories 2900 Series indicators include a Lug-On- Center back. It is interchangeable with a number of separately available backs including Lug-Off-Center, Flat, Adjustable Bracket, Post-Type Lug, and the Screw-type Lug. -
Page 10: Appendix A: Technical Specifications
2900 Capacitive Series Indicator User Manual Appendix A: Technical Specifications Power Requirements and Current Consumption Battery 2 – CR2032 Lithium Coin Cells Capacity 240 mAh Automatic Sleep Time 30 minutes of non-use SPC Serial Output 18 ASCII Characters 1 Space character 2 Status characters indicating the operating mode BLANK Normal mode Displacement outside Lower Limit... -
Page 11: Appendix B: Serial Output Connector
No ingress of water when submerged to 1m deep for 30 minutes IP67 rating Spindle Bellows assured only Back-lug with Gasket if all parts Stem Cap listed right are Data Output Cover or Data Cable with Gasket attached and Battery Door with Gasket tightly secured starrett.com... - Page 12 The L.S. Starrett Company 2900 121 Crescent Street Form 978 Athol, MA 01331 1M/T 10/12 © Tel: (978) 249-3551 The L.S. Starrett Company 2012 starrett.com Specifications subject to change.
