USER
MANUAL
MSX-AI-5000
Edge AI vision system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSX-AI-5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Addi-Data MSX-AI-5000

Summary of Contents for Addi-Data MSX-AI-5000

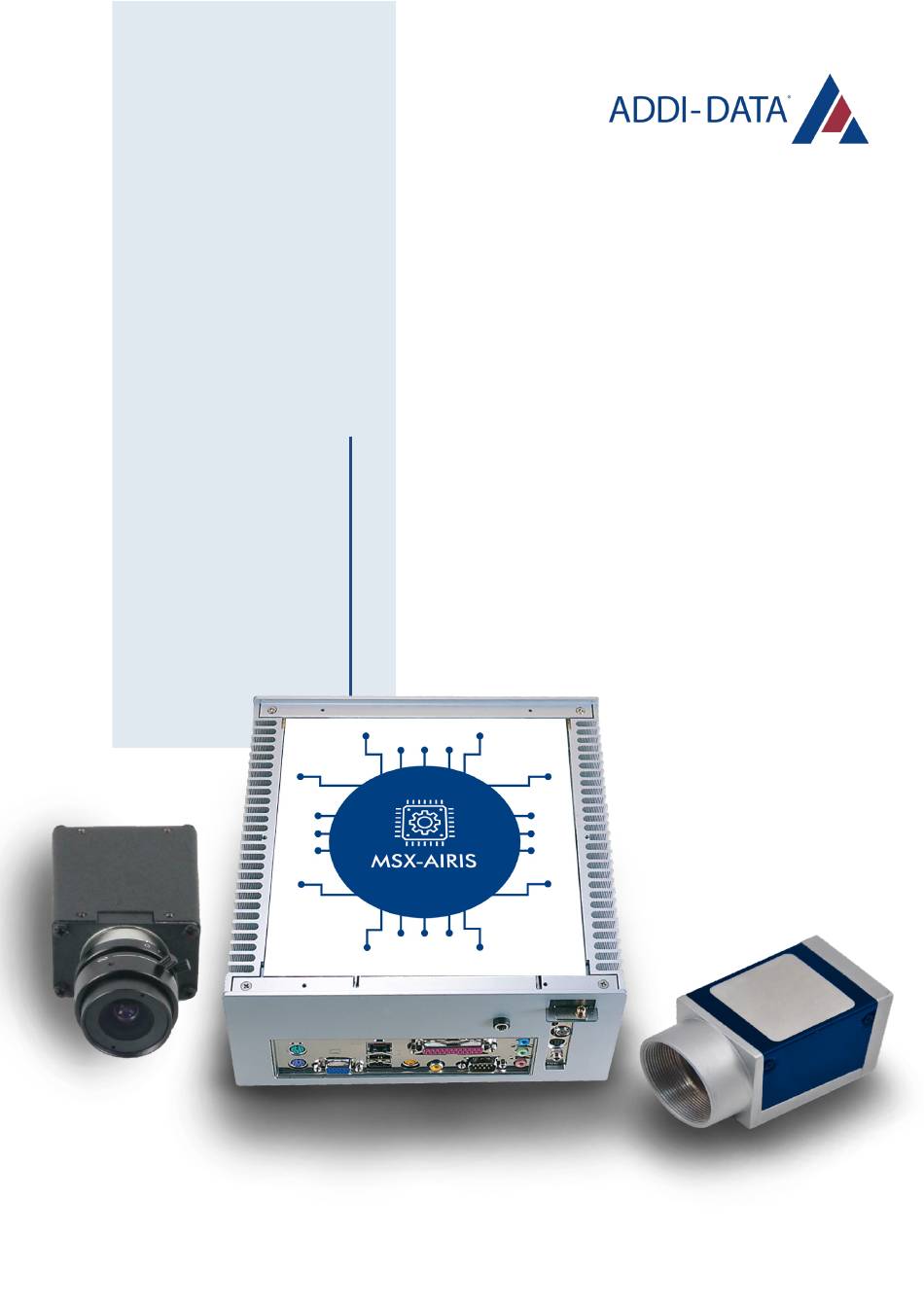

  • Page 1 USER MANUAL MSX-AI-5000 Edge AI vision system...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product information ..............3 - Warranty and liability ............... 3 - Copyright ................. 3 - ADDI-DATA software product licence ........4 - Trademarks ................4 Brief description ................5 - Features .................. 5 - Included components ............... 5 - Optional components ..............

  • Page 3: Product Information

    The user is not permitted to make changes to the product beyond the intended use, or to interfere with the product in any other way. ADDI-DATA shall not be liable for obvious printing and phrasing errors. In addition, ADDI DATA, if legally permissible, shall not be liable for personal injury or damage to materials caused by improper installation...

  • Page 4: Addi-Data Software Product Licence

    The software must only be used to set up the ADDI-DATA products. Reproduction of the software is forbidden (except for back-up and for exchange of faulty data carriers).

  • Page 5: Brief Description

    BRIEF DESCRIPTION MSX-AI-5000 edge vision systems are intended to capture video streams from several industrial cameras, to run embedded vision algorithms in real-time, and to visualize the ongoing processing as a live stream. The system comes with two user interfaces: an Android application and a web browser interface. They allow you to setup, monitor and live visualize the machine vision applications.

  • Page 6: Connecting The Peripherals

    CONNECTING THE PERIPHERALS Power supply Connect the power supply cable to the DC IN 12~24V port of the module and to your power grid. Ethernet If you need to establish a wired connection, plug the Ethernet cable to the module’s LAN port and to your internal Ethernet network.

  • Page 7: Download The Android Application

    DOWNLOAD THE ANDROID APPLICATION The Android application can be downloaded from the Google Play Store by searching for "Addi-Data". You can also simply scan this QR Code to download it.

  • Page 8: Android Application User Guide

    ANDROID APPLICATION USER GUIDE Connection to the system Turn on the MSX-AI-5000 and wait a few minutes for the system to boot up. There are 2 options to connect the system to the application: • by Wi-Fi hotspot • by local Ethernet network...

  • Page 9: Wi-Fi Hotspot

    If you want to connect by local Ethernet network, please go to the next section. In the Wi-Fi menu of your device, connect to the Wi-Fi network named ADDI-DATA-XXXXXX. The default password is the serial number. Since this hotspot doesn’t provide internet connection, your device may display an error message.

  • Page 10: Local Ethernet Network

    (GPS and media file) and start the application. Make sure that your device is in the same Ethernet subnet as the MSX-AI-5000. If not, you can modify the range of IP addresses to scan within the "Advanced settings"...

  • Page 11: Select Agent(S)

    Select agent(s) Click on "DETECT AGENTS" to search for devices on the Ethernet network. Select the agent of your choice. At this step, you have access to the following information: the name of the agent, the MAC adress and the type of connection with the icons.

  • Page 12: Create A New Account

    Create a new account If you start the application for the first time, you have to create an account. If you already have an account, please go to the next section. To create an account, all fields are mandatory. The name field must contain between 3 and 30 characters. The field for the email address must contain "@".

  • Page 13: User Login

    There are differents ways to access to the menu of the application. You can either click on the ADDI-DATA logo at the top left corner, or just swipe left to right to open menu and swipe right to left to close menu.

  • Page 14: Camera Settings

    Camera settings Access to camera settings Within the menu, click on the "Smart sensors" tab to access the sensor settings.

  • Page 15: Cameras Configuration

    Configure camera(s) Select the camera you want to configure. A symbol for each camera appears in the right top corner, it represents the type of connection of the camera. You can set different parameters depending on the cameras. The updates are displayed in real-time.

  • Page 16: Task Launch

    At this step, you can see diffrent parameters which can be modified in real time. With this you can adjust the exposure manually or just put an automatic exposure. Here you can adjust the gain of the video stream to manage the visual noise. You can adjust the temperature, red for warm temperature and blue for cold temperature.

  • Page 17: Add A Task

    Add task(s) Click on "ADD TASK". Select the task of your choice. To illustrate this user guide, we have selected the task "Check the conformity of plastic cover parts".
  • Page 18 Select the camera(s) on which you want to run the task and click on "NEXT".

  • Page 19: Configuration Of A Task

    Configuration of the task Click on "+" to add a zone on the video stream and set the zone manually. You can adjust parameters. Some tasks do not have specific settings. Click here to switch to fullscreen. That way setting the zone(s) becomes easier.
  • Page 20 You can set several zones for the same camera. Simply repeat the previous step. Click on "EDIT" to modify the zone’s name or click on "DELETE" to delete the zone.

  • Page 21: Watch A Task

    Watch the task • Click on "COMPLETE" to validate the setting of your zone(s). • Click on and then on "WATCH" to visualize the video stream. Click on the return button of your phone to return to the page "Running Tasks" and add or delete task(s).

  • Page 22: Delete A Task

    Delete a task To delete a task, select it and click on "DELETE". This way, all parameters are deleted. If you have deleted the task by error, you have to create it again. You can add a new or an other task too.

  • Page 23: Mqtt Reporting Settings

    MQTT reporting settings Access to MQTT settings Within the menu, click on the "Agent settings" tab to open the general settings of the MSX-AI-5000.

  • Page 24: Mqtt Parameters

    MQTT parameters Click on "Modify settings" and then on "MQTT". Set the "Mode" parameter to the "Manual" value, and fill in the settings. Contact your system administrator to find out the different parameters to set.

  • Page 25: Return Of The Material

    RETURN OF THE MATERIAL Before returning your Edge AI Vision System, you should read the following checklist: • Specify the reason for returning your Edge AI Vision System (e.g. exchange, hardware update, end of subscription), the contact person in your company including his/her phone number and e-mail address, as well as the mailing address for a potential new delivery.

  • Page 26: Contact And Support

    CONTACT AND SUPPORT Please feel free to contact us if you have any questions. GERMAN OFFICE FRENCH OFFICE ADDI-DATA GmbH ADDI-DATA S.A.S France Airpark Business Center 9 Avenue de la Forêt Noire Airport Boulevard B210 67000 Strasbourg 77836 Rheinmünster France...
