Summary of Contents for Brook Zero-Pi

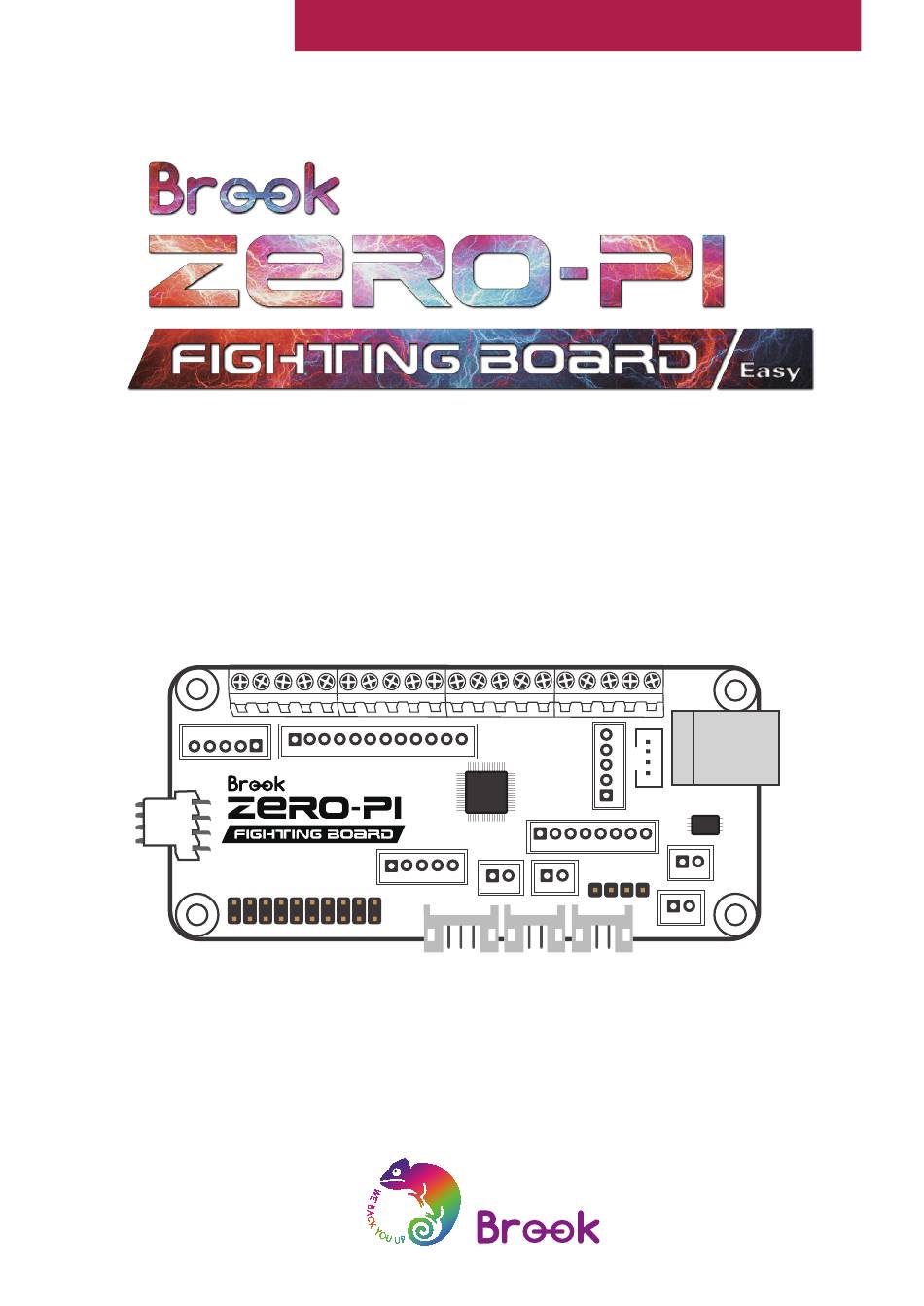

- Page 1 NS / PS3 / PS2 / PS / PC(X-Input) / Retro Gaming System USER GUIDE ver.22.01 A-C1049-200701-V1.0...
-
Page 2: Table Of Contents
Production induction ..................Function ......................How to connect ....................J1(J1-1/J1-2/J1-3) USB for PS3 ..............J2(J3) LED Display ..................Button configuration ..................J4(J13+J14) header ..................J16 Screw Terminal ..................J7(J8+J11) Turbo Key function ..............J12 How to switch between LS/RS/DP mode ........... -
Page 3: Production Induction

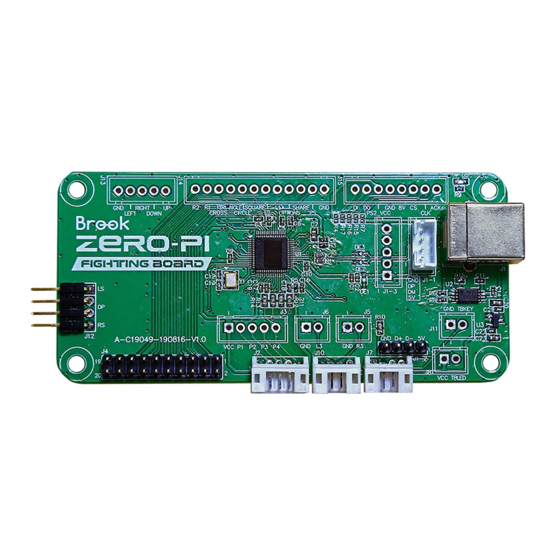

Production induction The ZERO-Pi fighting board supports to be used wired on NS/PS3/PS2/PS/ PC(X-Input)/Retro Gaming System, it also supports LED, and turbo function. Function Support NS/PS3/PS2/PS/ Support Player LEDs PC(X-Input)/Retro Gaming System Full-Compatible with BROOK Fighting Cable Built-in SOCD cleaner... -
Page 4: J1(J1-1/J1-2/J1-3) Usb For Ps3
J1(J1-1/J1-2/J1-3) USB Connectors Four usb connection selections for NS/PS3/PC(X-Input)/Retro Gaming Emulator J2(J3) LED Display Select J2 or J3 for Player LED LED ON LED OFF PS/PS2 Button configuration SELECT / BACK L3 / LTSB / LSB Touch Key PS / XBOX Home R3 / RTSB / RSB Turbo Key LS / DP / RS... - Page 5 Switch Stick in DP D-PAD D-PAD D-PAD LTSB RTSB BACK SELECT SELECT SELECT START START START START (SELECT & 3P) CAPTURE (SELECT & 4P) XBOX Home Home LX / LY Stick in LS LX / LY LX / LY LX / LY RX /RY Stick in RS RX /RY...
-
Page 6: J4(J13+J14) Header
J4(J13+J14) header According to your preference to connect Brook Fighting Board Cable to J4 or J13 + J14 4K / L2 / LT / ZL 3K / R2 /RT / ZR 2K / / B / A 1K / / A / B... -
Page 7: J16 Screw Terminal
J16 Screw Terminal 4K / L2 /LT / ZL 3K / R2 /RT / ZR 2K / / B / A 1K / / A / B 4P / L1 / LB / L 3P / R1 / RB /R 2P / / Y / X 1P /... -
Page 8: J12 How To Switch Between Ls/Rs/Dp Mode
J12 How to switch between LS/RS/DP ●Mode LS, RS, DP Emulate (For J12 DP Mode Only) For those who don’t have LS,RS,DP switch, it’s able to press combo keys for 3 seconds to swich between LS,RS,DP modes. OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB... -
Page 9: J15 For Ps/Ps2
For connecting to PS/PS2 DO 8V GND PS2 VCC CS NC ACK Zero-Pi Fighting Board support auto-detect & manual to select Switch & PS3 consoles. If you want to switch mode manually, hold on following button then plug into consoles:... -
Page 10: 中文 產品介紹
產品介紹 ZERO-Pi格鬥板支援NS/PS3/PS2/PS/PC(X-Input)主機與復古遊戲模擬器， 允許你的大搖台以有線連接方式進行遊戲，支援LED與連射功能！ 功能說明 支援NS/PS3/PS2/PS/PC(X-Input)主機與復古遊戲模擬器 支援使用者LED顯示 與BROOK Fighting Cable完美匹配 支援 SOCD cleaner 提供多種USB接頭 便利安裝設計 (USB Type-B/5-pin header connector/4-pin header connector/4-pin) 提供連發功能 輕鬆更新韌體 板面說明 4K / L2 /LT / ZL 3K / R2 /RT / ZR 2K / / B / A... -
Page 11: J1(J1-1/J1-2/J1-3) Usb對應Ps3
J1(J1-1/J1-2/J1-3) USB 接頭 ZERO-Pi Fighting Board提供四種不同的USB連接方式對應 NS/PS3/PC(X-Input)/ Retro Gaming Emulator，可從中自行選用。 J2(J3) LED 顯示說明 J2與J3均為Player LED顯示功能，可從中自行選用。 LED ON LED OFF PS/PS2 按鍵對應列表 SELECT / BACK L3 / LTSB / LSB Touch Key PS / XBOX Home R3 / RTSB / RSB... - Page 12 Switch Stick in DP D-PAD D-PAD D-PAD LTSB RTSB BACK SELECT SELECT SELECT START START START START (SELECT & 3P) CAPTURE (SELECT & 4P) XBOX Home Home LX / LY Stick in LS LX / LY LX / LY LX / LY RX /RY Stick in RS RX /RY...
-
Page 13: J4(J13+J14) 按鍵Pin Out
J4(J13+J14) 按鍵 PIN OUT 直接連接J4時推薦使用專用排線：Brook Fighting Board Cable。 根據您的需求也可使用J13加上J14來替代J4的功能。 4K / L2 / LT / ZL 3K / R2 /RT / ZR 2K / / B / A 1K / / A / B 4P /L1 / LB / L... -
Page 14: J16 端子台
J16 端子台 4K / L2 /LT / ZL 3K / R2 /RT / ZR 2K / / B / A 1K / / A / B 4P / L1 / LB / L 3P / R1 / RB /R 2P / / Y / X 1P / START / +... -
Page 15: J12 Ls/Rs/Dp切換開關功能
J12 LS/RS/DP 切換開關功能 DP Mode（預設）：搖桿輸入對應至D-pad輸出 LS Mode：搖桿輸入對應至左3DVR （Lx、Ly）輸出 RS Mode：搖桿輸入對應至右3DVR （Rx、Ry）輸出 OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X 4K/L2/LT 3K/R2/RT DOWN 2K/O/B 1K/X/A OPTIONS/ START + LEFT and press for 3 seconds OPTIONS START SHARE OPTIONS 4P/L1/LB 3P/R1/RB 2P/ /Y 1P/ /X... -
Page 16: J15 對應Ps/Ps2
J15 對應 PS/PS2 連接PS/PS2時請使用此接頭進行連接。 DO 8V GND PS2 VCC CS NC ACK Zero-Pi Fighting Board支援自動檢測和手動選擇Switch與PS3主機。 如果要手動切換模式，請按住以下按鈕，然後插入主機： 1P : PS3 1K : Switch...
