- Page 1 ALPHA LITE ALPHA LITE USER MANUAL USER MANUAL BOOK BOOK P S S E R I E S P S 7 5 0 W P S 7 5 0 W...
- Page 2 Product name. Product name. PS750W PS750W Precautions 〔 WARNING 〕 Do not open or disassemble the cover to reduce the risk of electric shock. Please wear safety equipment such as safety helmet during work. Be sure to fix the safety chain on the product when installing and moving. Please install the signs below for people to bypass when install the product on high truss.
-
Page 3: Fixture Information
ALPHA LITE ┃ USER MANUAL BOOK C o n t e n t s Safety Information Fixture Information Extra Function Fixture Information Sleep Mode Function RDM Function Fixture Exterior View Dimensions Dimming Speed Setup Master Function Technical Specifications Fixture ID Number Setup... - Page 4 Product name. Product name. PS750W PS750W Product name. PS750W ⇒ Mainly used in broadcast studio and stage ⇒ Light texture similar to halogen lamp ⇒ 1CH mode available as halogen lighting ⇒ Excellent light quality, and high-efficiency/high CRI design ⇒ 2900~6000K color temperature control function ⇒...
-
Page 5: Fixture Exterior View

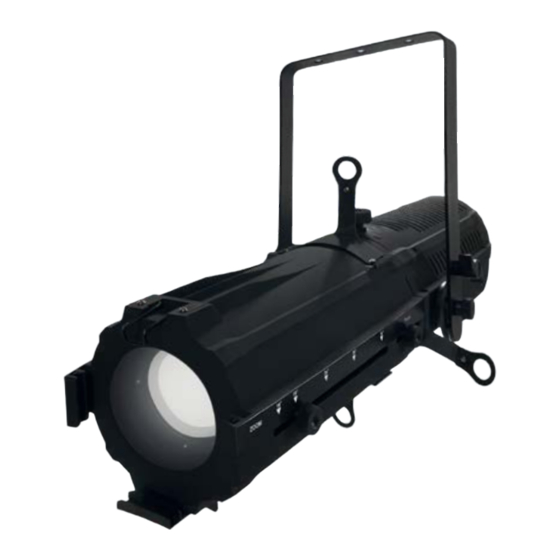

ALPHA LITE ┃ USER MANUAL BOOK Fixture Exterior View Smart Touch LCD Screen Yoke Fixed Knob Connector Panel... - Page 6 Product name. PS750W Dimensions...
-
Page 7: Technical Specifications
ALPHA LITE ┃ USER MANUAL BOOK Technical Specifications 400W CSP/COB LED LED Chip Type 50,000 Estimated LED Lifetime (hours) 2,900~6,000K (VCT) White Light (K) CRI 97 / TLCI 97 Color Rendition (%) 0~100 (16-bit) Dimming (%) 100 / 3.9 Lens Diameter (mm/inch) 18~38 / 5~10 / 9~18 Beam Angle ( °) -
Page 8: Power Connection
Product name. PS750W Power Connection AC power at 100-240V, 50-60Hz POWER ON/OFF SWITCH DMX OUT C-TYPE PORT POWER IN (for ADMINISTRATOR ONLY) DMX IN ※ Do not connect USB without administrator's permission. 1. Observe the proper voltage rang. WARNING 2. If power is supplied outside the range, noise may be generated from the SMPS. 3. -
Page 9: Dmx Connection
ALPHA LITE ┃ USER MANUAL BOOK DMX Connection 3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs. Connect the controller to a lighting, or lighting fixture to other lighting fixture. If user uses a standard DMX controller, the DMX output of the controller can connect directly to the DMX input of the first fixture in the DMX chain. - Page 10 Product name. PS750W Unlocking When the fixture is turned on, the Smart Touch screen automatically locked. To unlock the touch screen, touch the finger icon( ) three times. If you do not touch for 30 seconds, the lock is reset. 〔...
- Page 11 ALPHA LITE ┃ USER MANUAL BOOK Screen Instructions 〔 Main Screen (Unlocked) 〕 〔 Setting Screen 〕 Display DMX MODE or USER MODE or COLOR MODE. Current Mode Display current channel mode. *Only display on DMX MODE Current Channel Mode Display current DMX512 Address.
- Page 12 Product name. PS750W Menu Tree [ Main screen ] Home DMX512 Mode DMX mode select DMX address input Information DMX channel value User Mode Intensity setup Color temperature setup No applicable model Tint setup Information Description of each function No applicable model Color Mode RGB color setup Saturation setup...
-
Page 13: Product Information
ALPHA LITE ┃ USER MANUAL BOOK Main Screen by Mode & Product Information Main Screen by Mode Information HOME DMX MODE USER MODE COLOR MODE The current mode is displayed in the upper left corner of the main screen among DMX MODE,... -
Page 14: Dmx Mode
Product name. PS750W DMX Mode Channel Change & Address Setup DMX MODE : It is used to adjust value by DMX512 signal. HOME DMX512 MODE Move to the DMX channel change screen. In DMX512 MODE screen, user can select DMX channel mode on top tap. Input DMX512 address by pressing the number pad. - Page 15 ALPHA LITE ┃ USER MANUAL BOOK User Mode Setup & Intensity / CCT Adjust * If the equipment does not support COLOR MODE, the Tint function does not work. USER MODE : It is used when the user directly manipulates the equipment.
-
Page 16: Extra Function
Product name. PS750W Extra Function – Sleep Mode / Master / RDM / Dimming Speed Move to additional settings other than the main icon. HOME SETTING SETTING screen Touch ON/OFF the function you want to change among SLEEP ▶ MODE, MASTER, and RDM MODE Active in Orange Set ON/OFF’... -
Page 17: Master Setup
ALPHA LITE ┃ USER MANUAL BOOK Extra Function – Sleep Mode / Master / RDM / Dimming Speed Master Setup The master slave function allows to synchronize and control all connected lighting • fixtures through the DMX signal without a console connection. - Page 18 Product name. PS750W Fixture ID & Label Setup Move to fixture management number setting screen. HOME FIXTURE ID Move to input screen that can change the number Input the desired number 001 to ▶ 9999 and press Enter Move to the FIXTURE ID screen that displays the large size ▶...
-
Page 19: Error Information
ALPHA LITE ┃ USER MANUAL BOOK Error Information Temperature Sensor Detects the temperature of the current fixture(LED source, housing) and displays it on the Smart Touch LCD screen. If the temperature If it exceeds exceeds 45˚C 46~69˚C 70˚C 85˚C 75˚C... -
Page 20: Dmx Protocols
Product name. PS750W DMX Protocols (1/2) Channel Mode Mode Channel DMX Value Function 0~255 0~100 Dimmer Mode Channel DMX Value Function 0~255 0~100 Dimmer Color 0~255 0~100 Temperature(CCT) - Page 21 ALPHA LITE ┃ USER MANUAL BOOK DMX Protocols (2/2) 2 Channel Mode : White Color Temperature DMX Value Function DMX Value Function DMX Value Function Dimmer 0~100% 4350K 5850K 0~255 116~119 236~239 2900K 4400K 5900K 120~123 240~243 2950K 4450K 5950K...
- Page 22 Product name. PS750W RDM Protocols (1/3) Parameter ID Discovery command command command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL DEVICE_LABEL SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION STATUS_MESSAGES [ Lamp Controls ] Control Value Description User Setting Remarks Property (Example) Device identification Identify device Identify On...
- Page 23 ALPHA LITE ┃ USER MANUAL BOOK RDM Protocols (2/3) Value User Device Property Description Remarks (Example) Setting Model number Device Model Description PS750W Disable of the device Name of the Manufacturer Label ALPHA LITE Disable manufacturer ex) Input : PS123 ·...
- Page 24 Product name. PS750W RDM Protocols (3/3) [ Sensor ] Value Device Sensors Description User Setting Remarks (Example) Current fixture Sensor Temp 64℃ Disable temperature [ Error Message ] Condition Level Description Display Sensor Over Temp Warning Fixture temperature 46 ~ 69˚C Orange message Sensor Over Temp Error...
- Page 25 ALPHA LITE USER MANUAL BOOK 82-2-6317-0464 <Tel > 82-2-2039-0464 <Fax> hello@alpha-lite.net <E-mail> www.alpha-lite.net <Web> 2-4 Floor, 5-8, Gyeongin-ro 88-gil,Yeongdeungpo-gu,Seoul,Republic of Korea, 07363...
