- Page 1 ALPHA LITE ALPHA LITE USER MANUAL USER MANUAL BOOK BOOK P S S E R I E S P S 7 5 0 C P S 7 5 0 C...
- Page 2 Product name. Product name. PS750C PS750C Precautions 〔 WARNING 〕 Do not open or disassemble the cover to reduce the risk of electric shock. Please wear safety equipment such as safety helmet during work. Be sure to fix the safety chain on the product when installing and moving. Please install the signs below for people to bypass when install the product on high truss.
-
Page 3: Fixture Information
ALPHA LITE ┃ USER MANUAL BOOK C o n t e n t s Safety Information Fixture Information Extra Function Sleep Mode Function Fixture Information Fixture Exterior View RDM Function Dimming Speed Setup Dimensions Technical Specifications Master Function Fixture ID Number Setup... - Page 4 Product name. Product name. PS750C PS750C Product name. PS750C ⇒ Mainly used in broadcast studio and stage ⇒ Light texture similar to halogen lamp ⇒ 1CH mode available as halogen lighting ⇒ Excellent light quality, and high-efficiency/high CRI design ⇒ 2500~10000K color temperature control function ⇒...
-
Page 5: Fixture Exterior View

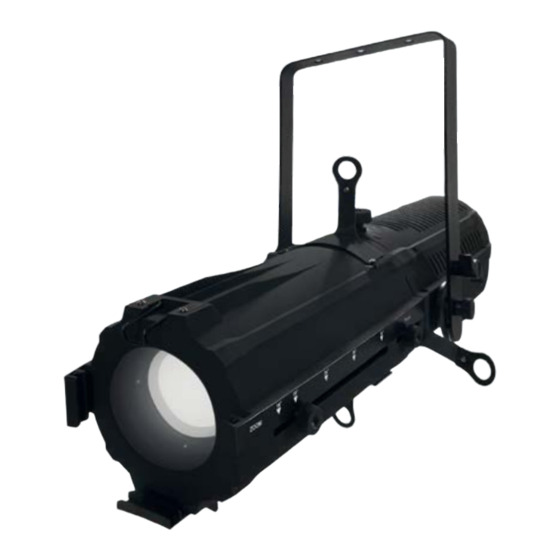

ALPHA LITE ┃ USER MANUAL BOOK Fixture Exterior View Smart Touch LCD Screen Yoke Fixed Knob Connector Panel... - Page 6 Product name. PS750C Dimensions...
-
Page 7: Technical Specifications
ALPHA LITE ┃ USER MANUAL BOOK Technical Specifications 350W CSP LED LED Chip Type 50,000 Estimated LED Lifetime (hours) 2,500~10,000 (VCT) Full RGBALC LED White Light (K) Full RGB+Amber+LIme+Cyan Full Color Light (6Color Gamut with Hue and Saturation Control) CRI 95~98... -
Page 8: Power Connection
Product name. PS750C Power Connection AC power at 100-240V, 50-60Hz POWER ON/OFF SWITCH DMX OUT C-TYPE PORT POWER IN (for ADMINISTRATOR ONLY) DMX IN ※ Do not connect USB without administrator's permission. 1. Observe the proper voltage rang. WARNING 2. If power is supplied outside the range, noise may be generated from the SMPS. 3. -
Page 9: Dmx Connection
ALPHA LITE ┃ USER MANUAL BOOK DMX Connection 3-pin or 5-pin XLR sockets are equipped for DMX input and output, depending on user needs. Connect the controller to a lighting, or lighting fixture to other lighting fixture. If user uses a standard DMX controller, the DMX output of the controller can connect directly to the DMX input of the first fixture in the DMX chain. - Page 10 Product name. PS750C Unlocking When the fixture is turned on, the Smart Touch screen automatically locked. To unlock the touch screen, touch the finger icon( ) three times. If you do not touch for 30 seconds, the lock is reset. 〔...
- Page 11 ALPHA LITE ┃ USER MANUAL BOOK Screen Instructions 〔 Main Screen (Unlocked) 〕 〔 Setting Screen 〕 Display DMX MODE or USER MODE or COLOR MODE. Current Mode Display current channel mode (only display on DMX MODE) Current Channel Mode Display current DMX512 Address.
- Page 12 Product name. PS750C Menu Tree [ Main screen ] Home DMX512 Mode DMX mode select DMX address input Information DMX channel value User Mode Intensity setup Color temperature setup Tint setup Information Description of each function Color Mode RGB color setup Saturation setup White setup Full screen...
-
Page 13: Product Information
ALPHA LITE ┃ USER MANUAL BOOK Main Screen by Mode & Product Information Main Screen by Mode Information HOME DMX MODE USER MODE COLOR MODE The current mode is displayed in the upper left corner of the main screen among DMX mode, user mode and color mode, and the DMX address number of the equipment is displayed in the middle with a yellow number. -
Page 14: Dmx Mode
Product name. PS750C DMX Mode Channel Change & Address Setup DMX MODE : It is used to adjust value by DMX512 signal. HOME DMX512 MODE Move to the DMX channel change screen. In DMX512 MODE screen, user can select DMX channel mode on top tap. Input DMX512 address by pressing the number pad. - Page 15 ALPHA LITE ┃ USER MANUAL BOOK User Mode Setup & Intensity / CCT / Tint Adjust USER MODE : It is used when the user directly manipulates the equipment. HOME USER MODE Move to user-operable screen to change Intensity/CCT/Tint. Activate control bar and adjust value directly 'Current Intensity' according to selected function.
- Page 16 Product name. PS750C Color Mode Setup & RGB / Hue / Saturation / White Adjust COLOR MODE : It is used when the user directly manipulates the equipment. HOME COLOR MODE Move to user-operable screen to change Hue/Saturation COLOR MODE screen Touch the function you want to change Active in Orange ▶...
-
Page 17: Extra Function
ALPHA LITE ┃ USER MANUAL BOOK Extra Function – Sleep Mode / Master / RDM / Dimming Speed Move to additional settings other than the main icon. HOME SETTING SETTING screen Touch ON/OFF the function you want to change among SLEEP ▶... -
Page 18: Master Setup
Product name. PS750C Extra Function – Sleep Mode / Master / RDM / Dimming Speed Master Setup The master slave function allows to synchronize and control all connected lighting • fixtures through the DMX signal without a console connection. If a problem occurs in the console or communication line, it is possible to control •... - Page 19 ALPHA LITE ┃ USER MANUAL BOOK Fixture ID & Label Setup Move to fixture management number setting screen. HOME FIXTURE ID Move to input screen that can change the number Input the desired number 001 to ▶ 9999 and press Enter Move to the FIXTURE ID screen that displays the large size ▶...
-
Page 20: Error Information
Product name. PS750C Error Information Temperature Sensor Detects the temperature of the current fixture(LED source, housing) and displays it on the Smart Touch LCD screen. If the temperature If it exceeds exceeds 45˚C 46~69˚C 70˚C 85˚C 75˚C or less is cyan is yellow or more is red the actual LED... -
Page 21: Cross Fader
ALPHA LITE ┃ USER MANUAL BOOK Cross Fader & Color Macro Cross Fader [In 4 or 7 channel mode] - When the DMX value of channel 3(Cross Fader) is 0, the set color temperature(CCT) is displayed by channel 2. - When the DMX value of channel 3 is 255, only Red(channel 4), Green(channel 5), Blue(channel 6) and White(channel 7) color values are displayed. -
Page 22: Dmx Protocols
Product name. PS750C DMX Protocols (1/4) Channel Mode Mode Channel DMX Value Function 0~255 0~100 Dimmer Mode Channel DMX Value Function 0~255 0~100 Dimmer Color Temperature 0~255 See DMX Protocols (2) (CCT) 0~119 / 120~255 See DMX Protocols (3) Tint Mode Channel DMX Value... - Page 23 ALPHA LITE ┃ USER MANUAL BOOK DMX Protocols (2/4) 3 & 5 & 12 Channel Mode : Color Temperature Function Function Function Function Function Value Value Value Value Value 2500 4000 5500 5500 5500 204~205 51~52 102~103 153~154 5550 2550...
- Page 24 Product name. PS750C DMX Protocols (3/4) 3 & 5 & 12 Channel Mode : Color Macro DMX Value Color Value Color Macro DMX Value Color Value Color Macro 1 - 6 131 - 134 7 - 12 135 - 138 13 - 18 139 - 142 19 - 24...
- Page 25 ALPHA LITE ┃ USER MANUAL BOOK DMX Protocols (4/4) 3 & 5 & 12 Channel Mode : Tint / 12 Channel Mode : Strobe [ Tint ] Mode DMX Value Output Value Function 0~10 No Effect 11~20 (-)1.00 Full Magenta 21~119 (-)0.99 ~ (-)0.01...
- Page 26 (Example) Setting Model number Device Model Description PS750C Disable of the device Name of the Manufacturer Label ALPHA LITE Disable manufacturer ex) Input : PROFILE123 · Name : PROFILE123 · Management # : 123 Fixture name and Device Label PROFILE123...
- Page 27 ALPHA LITE ┃ USER MANUAL BOOK RDM Protocols (3/3) [ Sensor ] Value Device Sensors Description User Setting Remarks (Example) Current fixture Sensor Temp 64℃ Disable temperature [ Error Message ] Condition Level Description Display Sensor Over Temp Warning Fixture temperature 46 ~ 69˚C...
- Page 28 ALPHA LITE USER MANUAL BOOK 82-2-6317-0464 <Tel > 82-2-2039-0464 <Fax> hello@alpha-lite.net <E-mail> www.alpha-lite.net <Web> 2-4 Floor, 5-8, Gyeongin-ro 88-gil,Yeongdeungpo-gu,Seoul,Republic of Korea, 07363...
