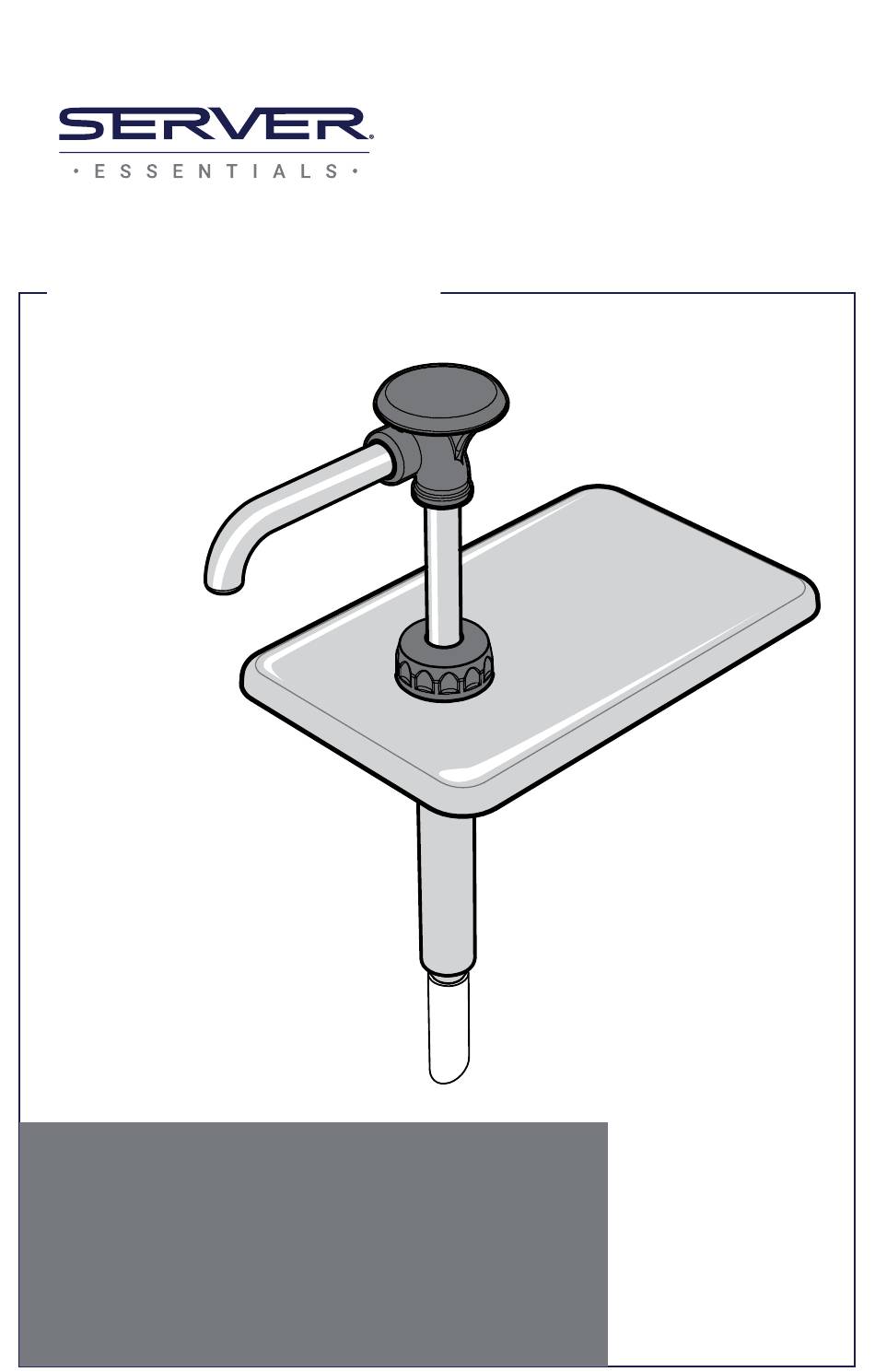

1/9-Size Jar Pump
MODEL: BP-1/4
88150
Thank You

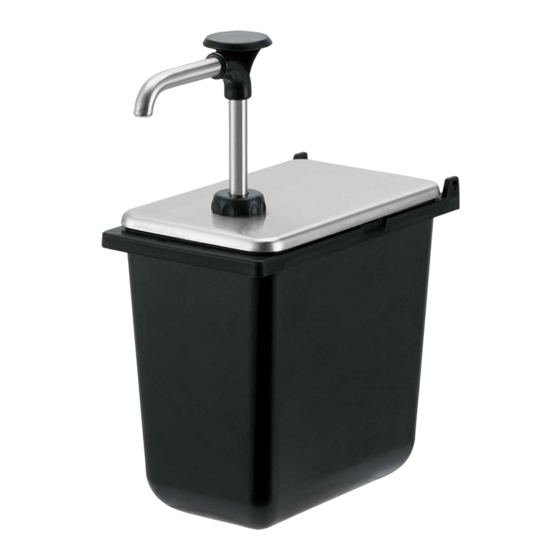

For purchasing our Stainless Steel Hybrid Pump. Pair
it with our 1/9-size jar to serve more in less space; fit
wherever 6" deep 1/9-size pans are used.
CONSISTENT 1/4-OUNCE PORTIONS—SERVE BETTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BP-1/4 and is the answer not in the manual?

Questions and answers

Related Manuals for Server BP-1/4

Summary of Contents for Server BP-1/4

  • Page 1 1/9-Size Jar Pump MODEL: BP-1/4 88150 Thank You For purchasing our Stainless Steel Hybrid Pump. Pair it with our 1/9-size jar to serve more in less space; fit wherever 6" deep 1/9-size pans are used. CONSISTENT 1/4-OUNCE PORTIONS—SERVE BETTER...
  • Page 2 NSF International lists this pump as: Be aware of the product you are serving and the “Not acceptable for dispensing potentially temperature the product is required to maintain. hazardous foods.” Server Products, Inc. cannot be responsible for the serving of potentially hazardous product. Page 2...
  • Page 3 ASSEMBLY PRACTICE SAFETY. WASH ALL PARTS PROPERLY BEFORE USE. See page 5. INSTALL SEAL onto head assembly piston. Apply small amount of food equipment lubricant inside seal. Flared end of seal should face away from piston head. INSTALL PINCH VALVE Apply small amount of food equipment lubricant inside bottom of piston.
  • Page 4 DISASSEMBLY During disassembly, collect small parts in a container to prevent loss. REMOVE PUMP from 1/9-size jar. SEPARATE CYLINDER ASSEMBLY, LID AND HEAD Loosen locking collar to release. REMOVE PINCH VALVE from head assembly. REMOVE SEAL from head assembly by pressing it down and off with thumb.
  • Page 5 CLEANING YES! FLUSH & RINSE all pump surfaces with hot water. Use dishwashing soap, Place lower end of pump into container hot water of hot water and operate pump until all and nylon brush remaining product is expelled and only hot water is discharged.

  • Page 6: Clean-In-Place

    CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from discharge...

  • Page 7: Troubleshooting

    TROUBLESHOOTING UNIT DISPENSES LITTLE OR NO PRODUCT? INCONSISTENT PORTIONS? • Clean pump. • Ensure jar is not empty and has enough product to pump. • Ensure unit is assembled correctly. TIP: Seal has a slight taper. Install with flat side towards top, flared side down.

  • Page 8: Need Help

    SERVER PRODUCTS GENERAL SERVICE, LIMITED WARRANTY REPAIR OR RETURNS Before sending an item to Server Products, contact Customer Care to request a Return Authorization Number. The RA Number ensures proper processing and a prompt turnaround. Repaired units are typically shipped out within 48 hours of receipt.
