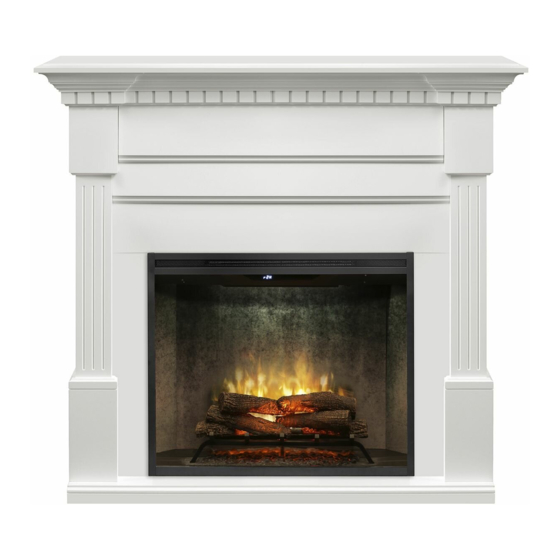

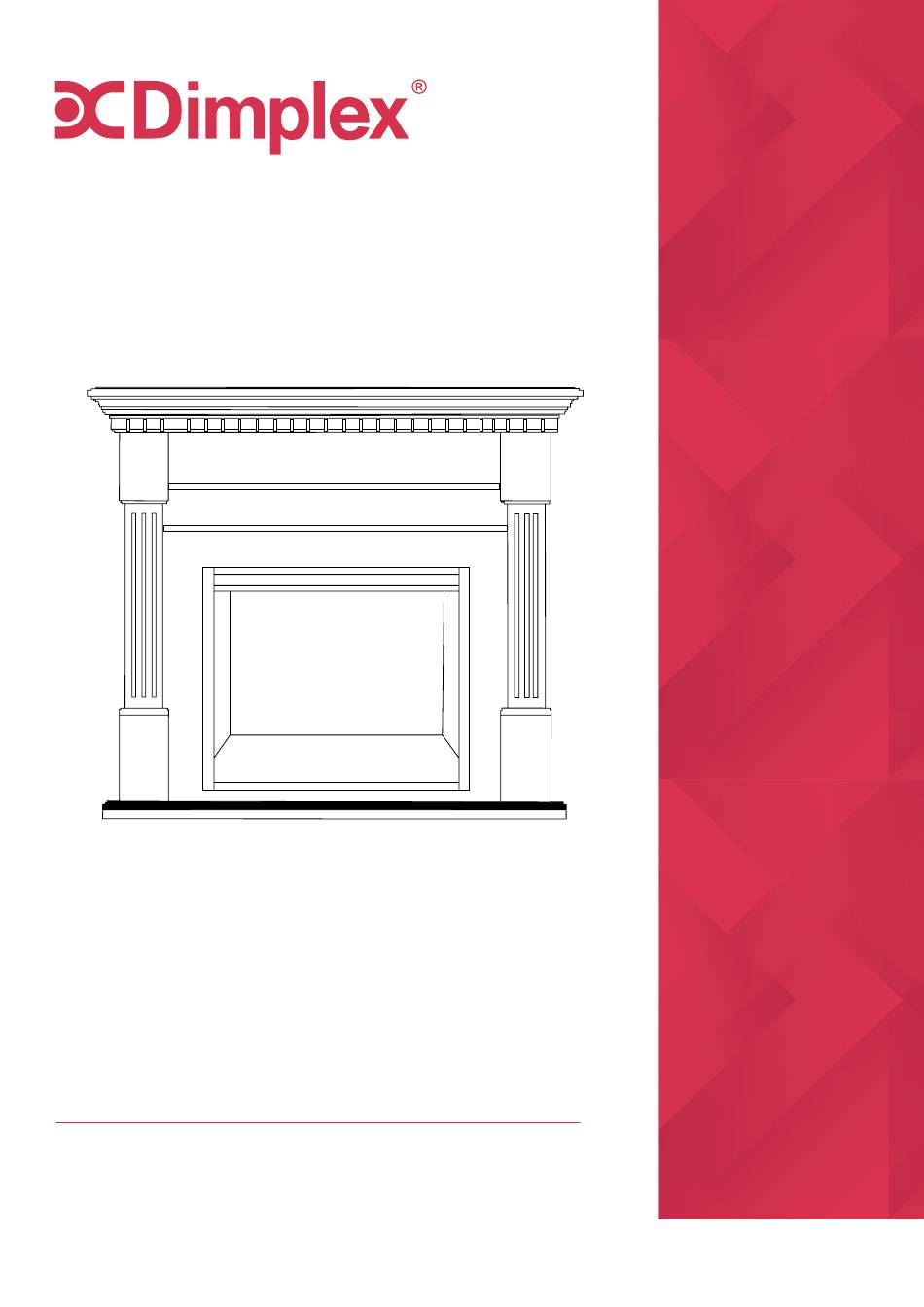

- Page 1 INSTRUCTION MANUAL Caden 2kW Revillusion Suite Model: CDN20-AU For domestic household use only. 8/54993/0 Iss2 OCN 11823...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 service agent or a similarly qualified person in order to avoid a hazard. • Keep the supply cord away from the front of the appliance. • Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specifications
Specifications Model no. CDN20-AU Colour/Finish Natural White Dimensions 1446w x 460d x 1257h Watts 2000 Heat Settings Thermostat Control Remote Control Warranty 2 years Dimensions (w x d x h) 150 x 150 x 510mm For greater precision, please always refer to the rating label placed on the product. - Page 6 Setup & Product Dimensions Operation Temperature -20°C to 40°C Fixed Wiring In such instances this appliance must be installed by a suitably quailified installer and the means for disconnection must be incorporated in the fixed wiring in accord- ance with the local wiring rules. WARNING Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electric shock, or injury to persons.
- Page 7 Setup & Product Dimensions Fitting WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND ON THIS PRODUCT. WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION.
- Page 8 Touch Panel & Remote WARNING The Revillusion Electric Firebox must be installed properly before it is used. CAUTION Except for installation and cleaning described in this manual, an authorized service representative should perform any other servicing. The manual controls for the Revillusion Electric Firebox are located on the front panel.
-
Page 9: Operation
Operation Icon Function Description Press to activate the current standby state (On/Off). • Standby State On Press to turn everything Off. Press again to activate the previous state. • Standby State Off Press to activate the previous state. Power/ -If the flame effect was On, the previous heat setting Standby will be activated (On or Off). - Page 10 Operation Icon Function Description Press multiple times to change the flame base colors Color from Red to Blue to Off. (The first segment on the Themes display will change from "r" to "b" to blank) This feature is active only when the flame effect is On. Press multiple times to change the LEDs on the sides and back of the unit from Midnight mode to white to 360' Light...
- Page 11 Cleaning Over time, dust can accumulate on the logs, grate & base which can effect performance. It is recommended to clean the unit at least once a month. CAUTION: ALWAYS Turn the unit OFF and disconnect the appliance from the power supply before undergoing any cleaning and maintenance.
-
Page 12: Maintenance
Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
