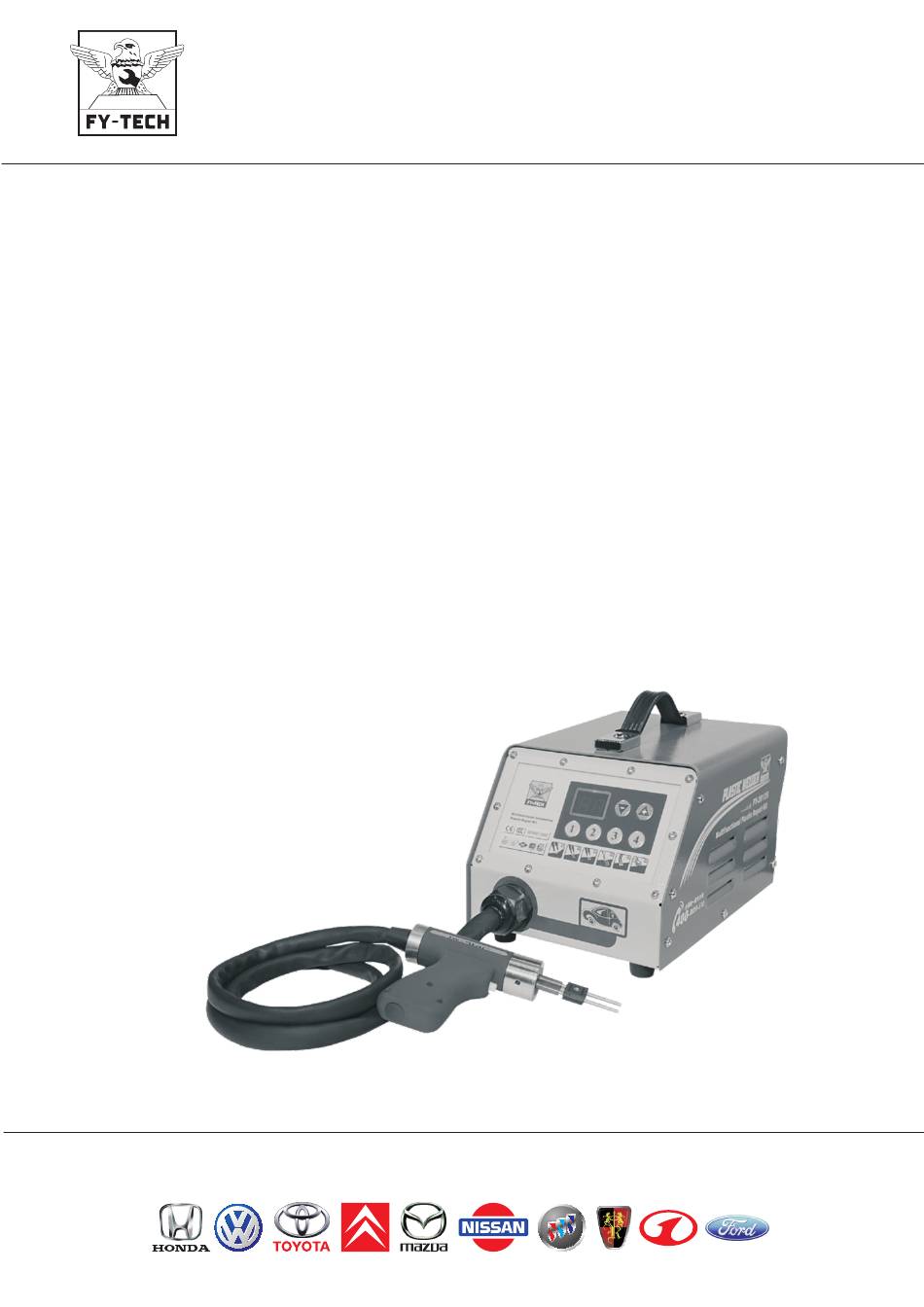

- Page 1 Multifunctional Automotive Plastic Welder Owner’s Manual FY-2012S The equipment is approved by following car manufacturers (China)
-
Page 2: Table Of Contents
Contents 、Safety Precaution Symbols 2、Installation 1)Specifications 2)Duty Cycle and Overheating 3)Machine Installation 、Controls Control Panel Instruction 、Staple Gun Staple Gun and Adapter 、Operation 1)Tools Selection 2)Preparation, Making Repair... -
Page 3: Safety Precaution Symbols
Safety Precautions Symbols Protect yourself and others from injury, read and follow these precautions before installation and operation. Electric shock can kill: 1、Do not touch live electrical parts。 Read instructions. 2、Wear dry,hole-free insulating gloves and 1、Read owner's Manual before using or servicing body protection. -
Page 4: Specifications
Installation 1. Specifications FY-2012S Model AC220V 50/60Hz Input Voltage 1. 5A Input Current Output Voltage 2. 6V Output Current 5-30A Weight 4. 8kg Measurement 250x180x135mm NO.2... -
Page 5: Duty Cycle And Overheating
2、Duty Cycle and Overheating The system will automatically shut off the welder when a pre- programmed temperature is reached. Automatic alert will be shown on the display. The welder can be used again after cooling down. Overheating Weld again Stop working Wait fifteen minutes Reduce amperage or for unit to cool... -
Page 6: Machine Installation
3、Machine Installation 1) Open the package and find out the owners manual。 2) Check the supplied accessories according to packing list that attached to this manual. 3) Properly install this equipment as following diagram. Inspect the unit for any problems.If so, contact your local distributor or service agency. -
Page 7: Control Panel Instruction
Operation 1、Controls 1, 2, 3, 4: Temperature adjustment 5: Display 6: Temperature decrease 7: Temperature increase NO . 5... -
Page 8: Staple Gun
Staple Gun 1. Staple gun and adapter 1. Trigger switch 2. Electrode 3. Electrode adapter 4. Staple 5. Staple 6. Hole locations of contact prong N O.6... -
Page 9: Operation
Operation 1. Tool Selection A. Reinforcing cracks at inside corners, curved areas and other complex shapes. B. Repairing cracks in rigid plastic. C. Repairing multiple cracks and complete breaks in rigid plastic. D. Cutting off staple legs E. Polishing surface N O.7... -
Page 10: Preparation, Making Repair
Operation 2. Preparation Always clean the plastic part surface being repaired of any grease, dirt, film or other contaminates before beginning. 3. Making Repairs Plug the power cord into a grounded outlet. Place the desired staple configuration into one of three hole locations in the contact prongs, choosing the hole location that provides the best access to the damage.
