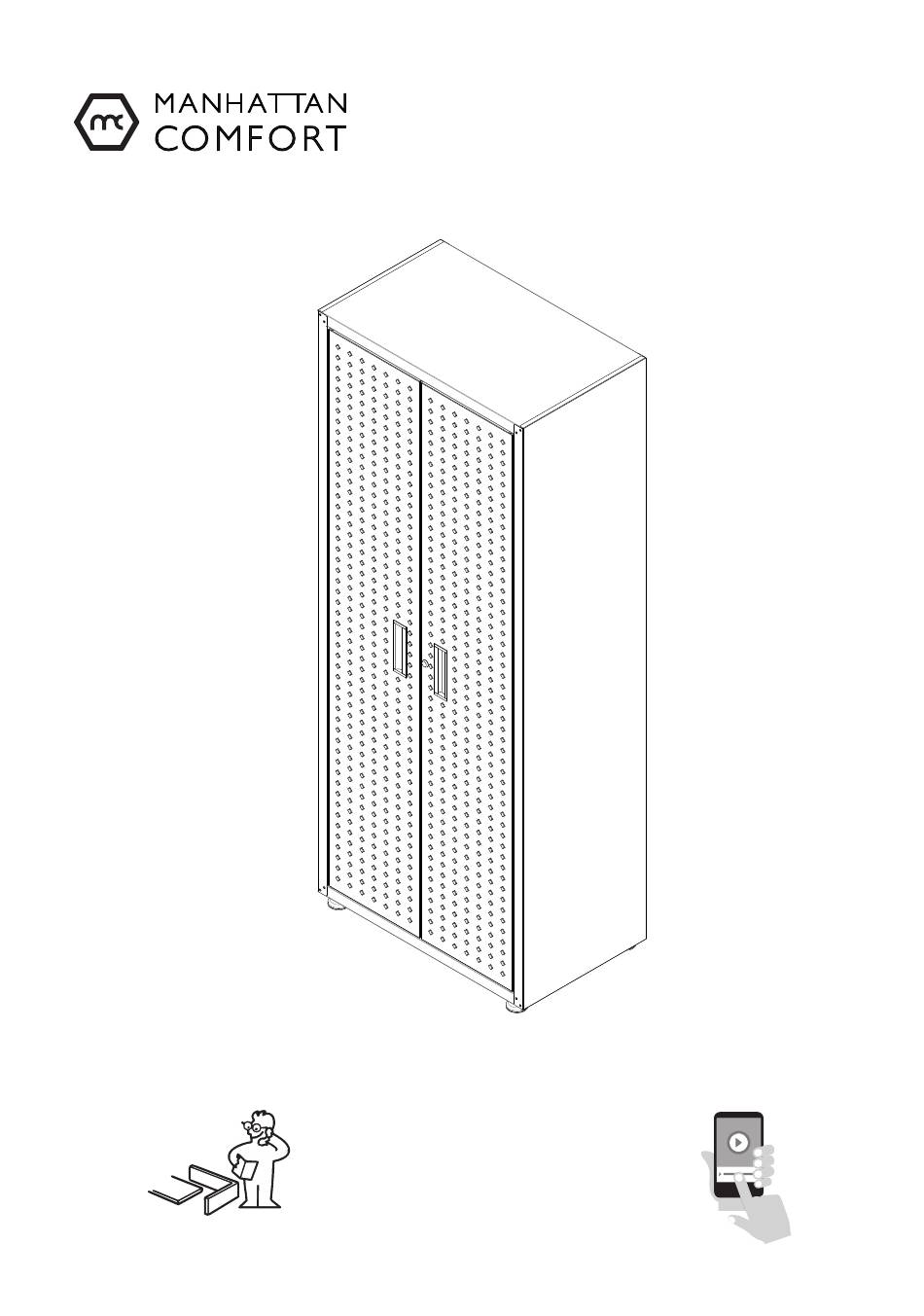

- Page 1 1000008413 -15/03/2018 ASSEMBLY HANDBOOK- FORTRESS 74.8" TALL GARAGE CABINET 1GMCF Stuck? Questions? We are here to help. 1-888-230-2225 View our assembly video online help@manhattancomfort.com www.manhattancomfort.com...
- Page 2 In order to ease the assembly, you should separate and identify the parts first Necessary hardware for the assembly, leveling and safety ½” * Included in the kit * Not included in the kit Do not place the parts directly onto the floor. Use a cardboard sheet or a mat to place the parts, during the separation and assembly.
-
Page 3: Hardware List
ASSEMBLY HANDBOOK TALL CUPBOARD - FORTRESS 74.8" TALL GARAGE CABINET Upper Back 3000007264 Wall Fixation Support 3000007235 3000007270 Side WARNING 3000007251 Central Back 3000007252 Left Shelf Maximum weight 3000007282 Right Shelf supported by Side 3000007281 Central Back 3000007251 shelf 3000007252 Central Back 3000007252 Lower Back... - Page 4 STEP 1 1 - Fit part P5 inside part P1 2 - Fit both parts in the frontal side, with STEP 2 1 - Fit part P7 inside part P1 2 - Fit both parts in the frontal side, with part F1...
- Page 5 STEP 3 1 - Fit part P1 to part P5 and P7 2 - Fit part P1 to parts P5 and P7 at the frontal side, with F1 STEP 4 1 - Turn the cupboard with the back side 2 - Fit parts P1 to parts P5 and P7 with upwards 180°...
- Page 6 STEP 5 1 - Fit part P8 into part P5 and parts P1 2 - Check that all fits are supported over the bolts 3 - After fitting the parts, screw the bolts until locked WARNING Position part P8 on the P4 side for mounting the cabinet.
- Page 7 STEP 7 1 - Fit parts P11 inside parts P1 and P8, as illustrated here below. Check that all fits are supported over the bolts 2 - After fitting the parts, screw the bolts until locked STEP 8 1 - Fit part P9 inside parts P1, P11 and P7. Check that all fits are supported over the bolts.
- Page 8 STEP 9 1 - To assembly the cabinet with shoe fit the accessory in part P7 as illustrated here below and turn to screw. To level the height or the cabinet, turn the shoe either clockwise or counterclockwise to align it. STEP 10 1- Turn the cupboard so that it will stand in the position of use 2- Fix F7 to parts P1, as shown here below...
- Page 9 STEP 11 1 - Fit the lower part P20 in diagonal position to insert it inside the cupboard 2 - Lean part P20 in part P1 and place it over the F7 detailed in the figure here below 3 - Lower the other side of part P20, leaning it over the left F7 4 - Repeat above steps for all parts P20 and P21 STEP 12 1 - Align part P16 at an approximate height of...
- Page 10 1 - Insert the metal part of the bushing into 2 - Pull the bushing driving it against the wall STEP 13 and then push the plastic ring the hole until it overcomes the wall. until it leans close to the wall Plastic ring WALL WALL...
- Page 11 STEP 15 1 - To assembly the doors, fit door P24 lower hinge bolt inside the bushing fixed in part P7 2 - Then, pull down the pin of door P24 upper hinge; align the door and release the pin to fit the bushing fixed in part P5 1º...
- Page 12 STEP 17 1 - Fit F12 to the inside of part P25, with F2 2 - Adjusting the position of the locking tongue STEP 18 1 -Insert product log...
