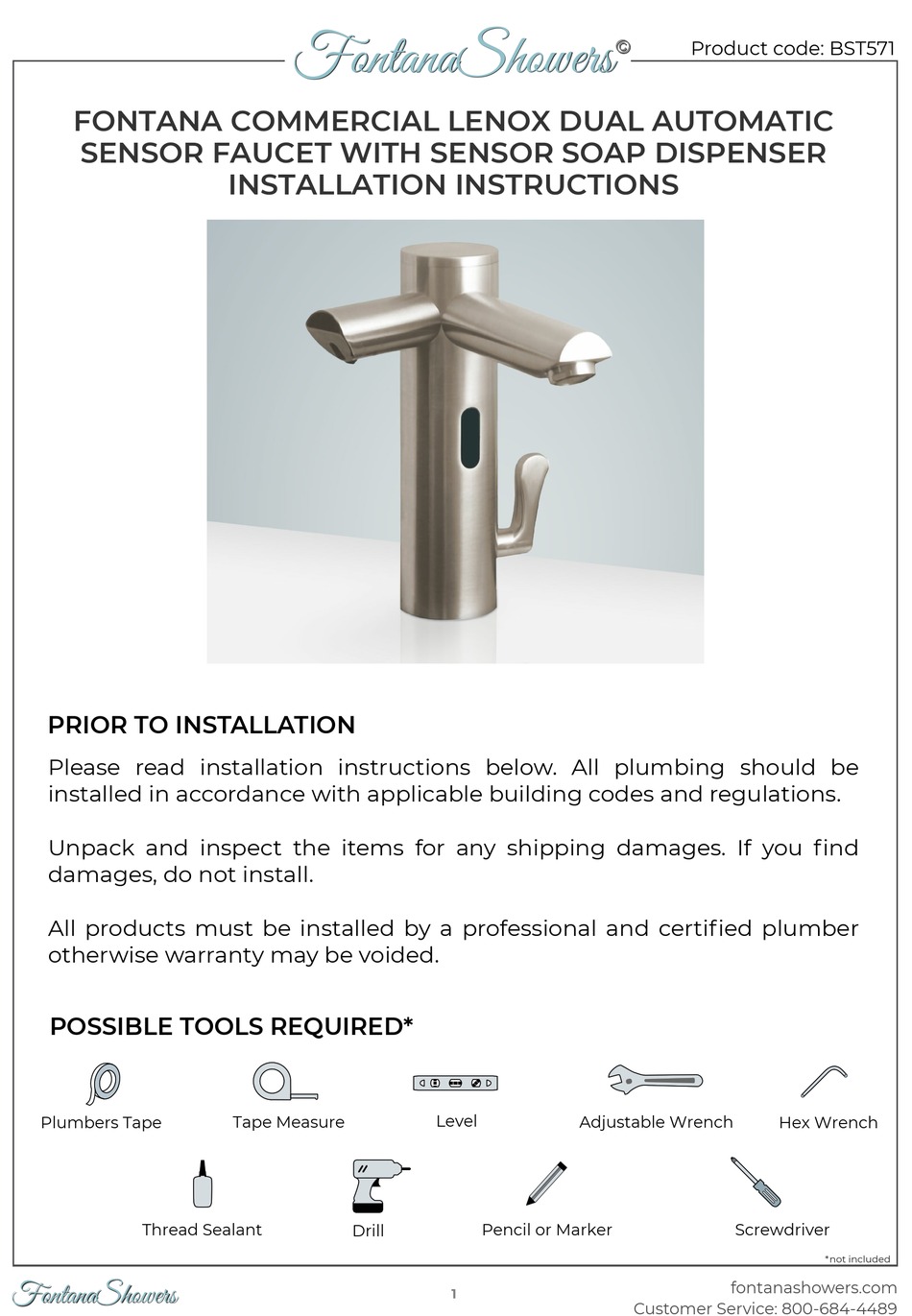

FONTANA COMMERCIAL LENOX DUAL AUTOMATIC
SENSOR FAUCET WITH SENSOR SOAP DISPENSER
PRIOR TO INSTALLATION
Please read installation instructions below. All plumbing should be
installed in accordance with applicable building codes and regulations.
Unpack and inspect the items for any shipping damages. If you find
damages, do not install.
All products must be installed by a professional and certified plumber
otherwise warranty may be voided.
POSSIBLE TOOLS REQUIRED*
Plumbers Tape
Thread Sealant
FontanaShowers
FontanaShowers
FontanaShowers
FontanaShowers
INSTALLATION INSTRUCTIONS
Tape Measure
Drill
Level
Adjustable Wrench
Pencil or Marker
1
©
©
Product code: BST571
Hex Wrench
Screwdriver
fontanashowers.com
Customer Service: 800-684-4489
*not included

Advertisement

loading
Need help?

Need help?

Do you have a question about the BST571 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fontana Showers BST571

  • Page 1 FontanaShowers FontanaShowers © © Product code: BST571 FONTANA COMMERCIAL LENOX DUAL AUTOMATIC SENSOR FAUCET WITH SENSOR SOAP DISPENSER INSTALLATION INSTRUCTIONS PRIOR TO INSTALLATION Please read installation instructions below. All plumbing should be installed in accordance with applicable building codes and regulations.
  • Page 2 FontanaShowers FontanaShowers © © Technical Information Faucet Size Power: DC:6V(4AA alkaline battery) AC:220V-240V; 50/60HZ Water Consumption: 0.05Mpa-0.6Mpa Detection Zone: 16-32 cm or adjustable Motor valve lifespan: up to 500000 flushes Battery lifespan: 100000 cycles Static Power Consumption: 0.36mw Working Power consumption: 0.5mw Inductive Opening Time: <...
  • Page 3 FontanaShowers FontanaShowers © © Step 1: Step 2: fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
  • Page 4 FontanaShowers FontanaShowers © © Step 3: Temperature Control Manual temperature control handle allows users to set preferred temperature. Waterpipe Instructions 1. Screw the hose into the corresponding screw-hole of the faucet body. Fix the o-ring into the bottom groove of the faucet body. 2.
  • Page 5: Installation

    FontanaShowers FontanaShowers © © Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose. Installation: Deck mounted Power Supply Options: ∙ IP67 Dual power input box with a 9V battery (battery not included) ∙...
  • Page 6 FontanaShowers FontanaShowers © © 5. Connect Sensor Cable and Dispenser Cable Connect the sensor cable from the spout to the sensor cable on the pump. Push the two connections together and tighten the connecting ring to ensure the two connections are locked together.
  • Page 7 FontanaShowers FontanaShowers © © Installation of Soap Bottle Install the bracket Insert the pump Insert the locking on the wall onto the bracket plate into bracket Soap Refill Process Affix the bottle with Unscrew the Add soap into full soap onto the pump, empty bottle.
  • Page 8 FontanaShowers FontanaShowers © © Deck Mounted Faucet Battery Box Battery case Battery case cover - + Screws + - Batteries fontanashowers.com FontanaShowers FontanaShowers Customer Service: 800-684-4489...
  • Page 9 FontanaShowers FontanaShowers © © 1. Remove cover of battery case. 2. Install four (4) D size alkaline batteries. Anode Cathode Note: Make sure the batteries are installed in correct orientation (polarity). 3. Replace battery case cover. 4. Tighten screws. The standard life cycle time is 2 years, based on average use 2000 times/month. Place hands immediately Predetermined amount If more soap is needed,...
  • Page 10: Operation

    FontanaShowers FontanaShowers © © Commissioning Sequence Care & Cleaning Before using the soap dispenser for the first time, • Always wipe your fixture down with a soft cloth the following sequence must be carried out. after each use to prevent mineral build-up and - Fill the bottle full of soap.
