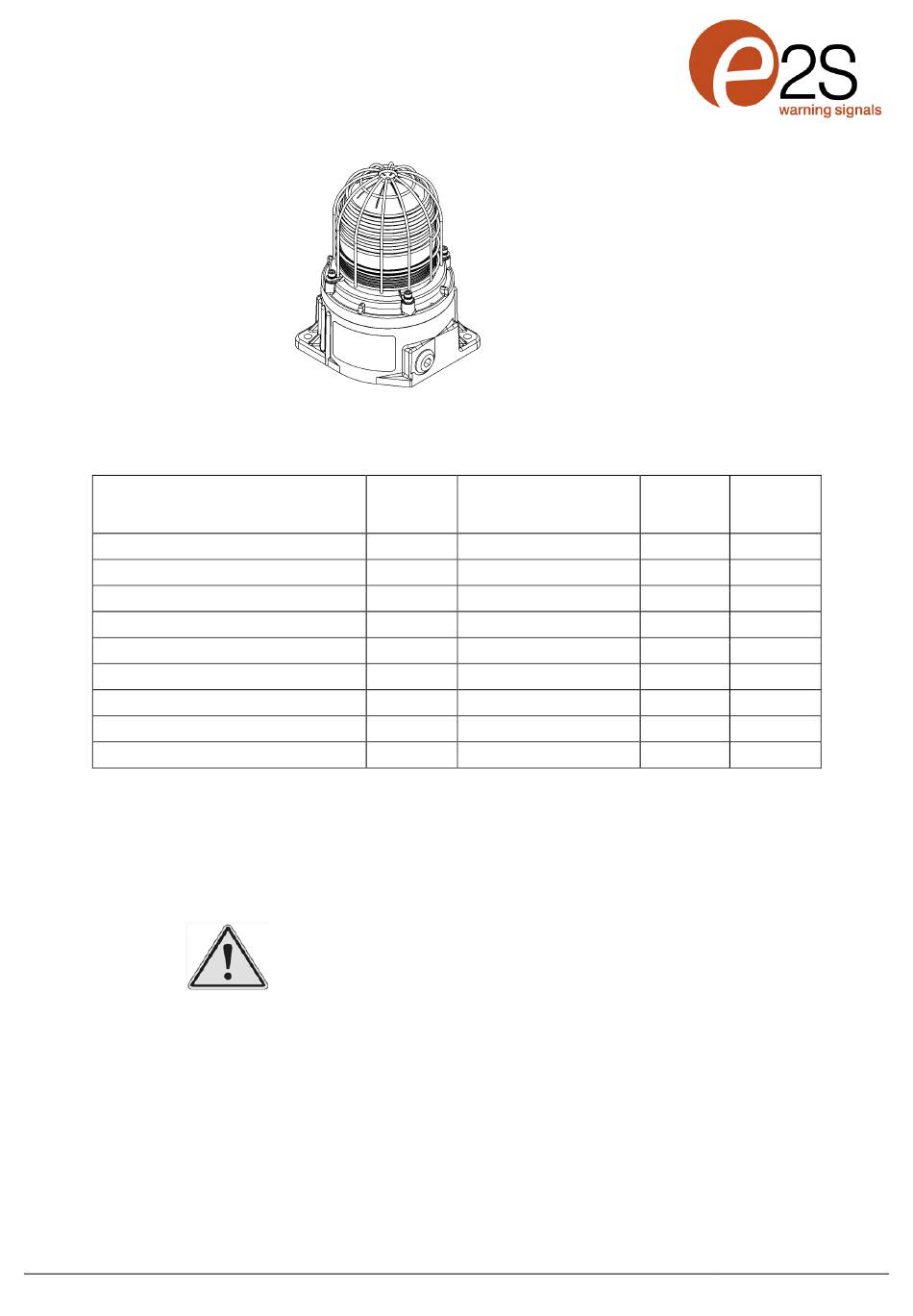

INSTRUCTION MANUAL
GNExB2X05, GNExB2X10 & GNExB2X15
Flameproof Xenon Beacons with relay / telephone initiation
For use in Flammable Gas and Dust Atmospheres
1) Product Table
GNExB2X05DC024-T
GNExB2X05AC115-T
GNExB2X05AC230-T
GNExB2X10DC024-T
GNExB2X10AC115-T
GNExB2X10AC230-T
GNExB2X15DC024-T
GNExB2X15AC115-T
GNExB2X15AC230-T
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable
size, length and quantity of beacons on each circuit.
2) Warnings
• POTENTIAL ELECTROSTATIC CHARGING HAZARD –
CLEAN ONLY WITH A DAMP CLOTH.
• DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE
IS PRESENT.
• ALL ENTRIES M20 X 1.5MM.
• USE SUITABLE RATED CABLES AND CABLE GLANDS
IF TEMPERATURE EXCEEDS 70ºC AT ENTRY OR 80ºC
AT BRANCHING POINT.
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D156-00-581-IS
Model
Issue 1
GNExB2X05-T
GNExB2X10-T
GNExB2X15-T
Nom.
Voltage Range
Voltage
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
15-11-23
Nom.
Max
Operating
Current
Current*
295mA
350mA
140mA
200mA
70mA
100mA
605mA
710mA
220mA
300mA
130mA
180mA
835mA
920mA
310mA
420mA
170mA
230mA
www.e2s.com
Tel: +44 (0)208 743 8880
Sheet 1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for E2S GNExB2X05 Series
Summary of Contents for E2S GNExB2X05 Series
- Page 1 • USE SUITABLE RATED CABLES AND CABLE GLANDS IF TEMPERATURE EXCEEDS 70ºC AT ENTRY OR 80ºC AT BRANCHING POINT. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1...
- Page 2 Ambient Temperature Range -50°C to +70°C IP Rating IP6X to EN/IEC60079-0 IP66/67 to EN60529 European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1 15-11-23 Sheet 2 of 7...
-
Page 3: Special Conditions For Safe Use
Figure 2: Fixing Location for B2 Beacon. carried out by a competent electrical engineer who has the necessary training. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1... - Page 4 4mm in size. Any other adapters used must be suitably rated as per the applicable standards. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1 15-11-23...
- Page 5 Position B (default) 06-001 H2 Header Positions Fig 8: Header H1 and H2 Positions European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1 15-11-23 Sheet 5 of 7...
-
Page 6: Maintenance, Overhaul And Repair
(0000) = All off activation signal. 0000 1000 0100 1100 0010 1010 0110 1110 1111 European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS Issue 1 15-11-23 Sheet 6 of 7... - Page 7 To reattach the lens, the fixings MUST be in the order shown in figure 10. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D156-00-581-IS...
- Page 8 16/03/2023 WRITTEN CONSENT. IMPRESS HOUSE STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER ALTERNATIVE MATERIAL AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET APPROVED DATE ALERTALARM RANGE D250-06-001 WWW.E2S.COM NTS 1 16/03/2023 R.N.POTTS...
-
Page 9: Eu Declaration Of Conformity
Manufacturer: European Safety Systems Ltd. Impress House, Mansell Road, Acton London, W3 7QH United Kingdom Authorised Representative: E2S Warnsignaltechnik UG Charlottenstrasse 45‐51 72764 Reutlingen Germany Equipment Type: GNExB1X05 ... - Page 10 EU Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐037_Issue_H Quality Assurance Manager Date and Place of Issue: London, 03/12/2021 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐037_Issue_H (GNExB, GNExJ).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
- Page 11 Other Standards and Regulations EN 60529:1992+A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-098_Issue_A (GNExB, GNExJ UKCA).docx - Page 1 of 2 -...
- Page 12 Martin Streetz Document No.: DC-098_Issue_A Quality Assurance Manager Date and Place of Issue: London, 24/02/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-098_Issue_A (GNExB, GNExJ UKCA).docx - Page 2 of 2 - QAF_252_Issue_5...
