Repair Procedures
RP5 – G4 Meter Empty Capacitance Calibration (Figure 9)
a. Completely empty dewar.
NOTE: The meter must first be calibrated empty and then the
span must be set for your particular model. The unit must be
empty, warm, and dry for calibration.
b. Allow dewar to warm to room temperature.
c. Enter Calibration Mode
1. Press and hold the hidden calibrate button located on the
center of the meter face.
2. While holding the calibrate button, press and hold the
green operate button.
3. Continue holding both buttons until LED 1 and LED 8 al-
ternately flash. The meter is now in calibration mode.
4. Release both buttons.
d. Press and hold the hidden calibrate button for 3 seconds. LED
1 will flash for 3 seconds followed by a short pause.
NOTE: Step d must be performed within 45 seconds or calibra-
tion mode will exit.
e. If successful, LED 1 will flash again for 3 seconds and exit
calibration mode storing the new empty value.
f. If calibration is unsuccessful, multiple LEDs will flash. The
LEDs indicate what error has occurred (see Table 2).
RP6 – G4 Meter Span Setting Adjustment (Figure 9)
a. Enter Calibration Mode

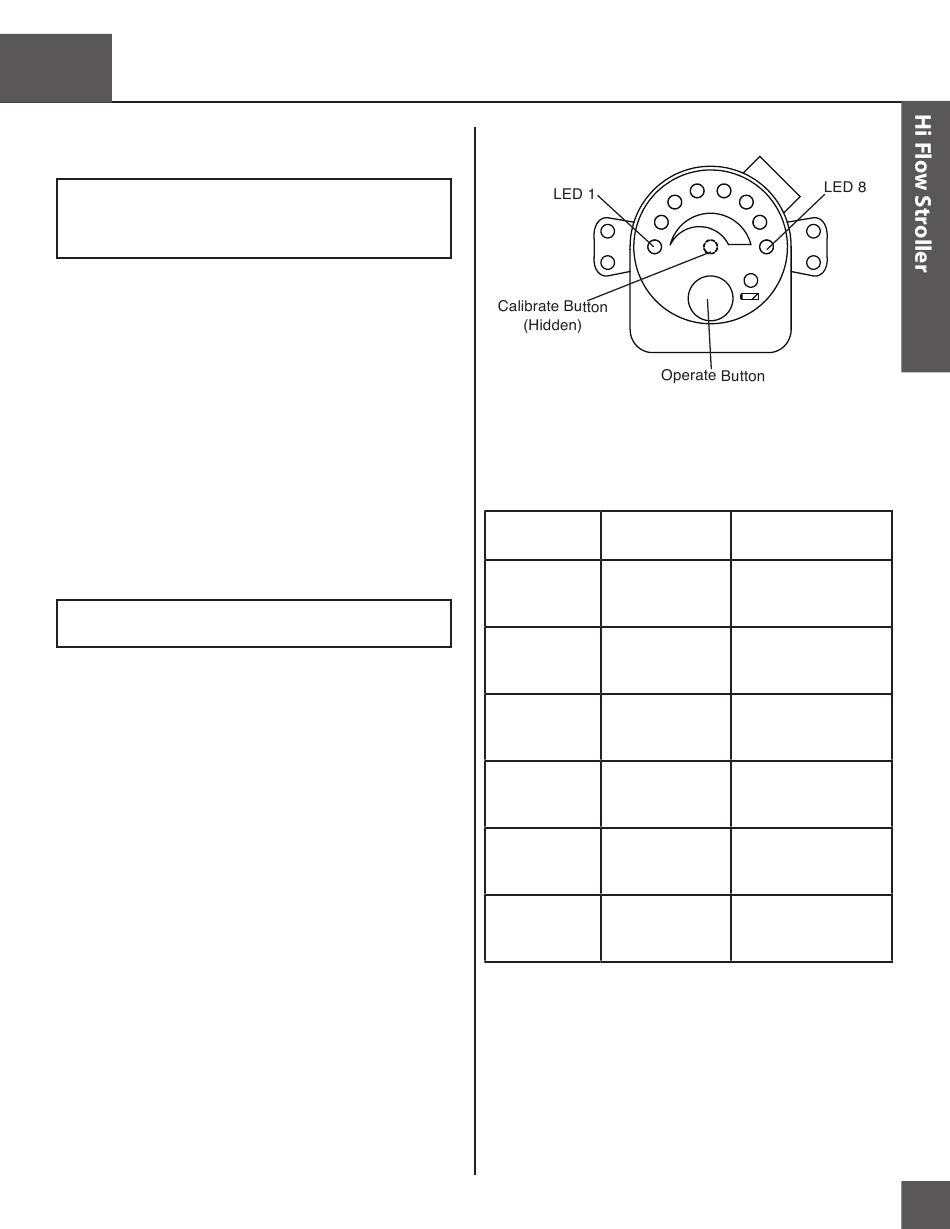

FIGURE 9: G4 Meter
TABLE 2: Calibration Error Codes
Error Code Reason for Fault
Empty to full span is
LED 1 & LED 4
too low.
LED 2 & LED 3 Open Circuit
Empty capacitance
LED 6 & LED 7
is too high.
Empty to full span is
LED 5 & LED 8
too high.
LED 2, LED 4 &
High Capacitance
LED 6
Calibrated full value
LED 1, LED 3,
less than empty
LED 5 & LED 7
value.
Hi Flow Stroller Technical Service Manual • PN 14314465 Rev F
Solution
Ensure tank is empty.
Recalibrate.
Check meter connections
and wire integrity.
Remove moisture
from inner vessel.
Decontaminate probe.
Ensure tank is empty.
Recalibrate.
Remove moisture
from inner vessel.
Decontaminate probe.
Dry harrness assembly.
Decontaminate.
