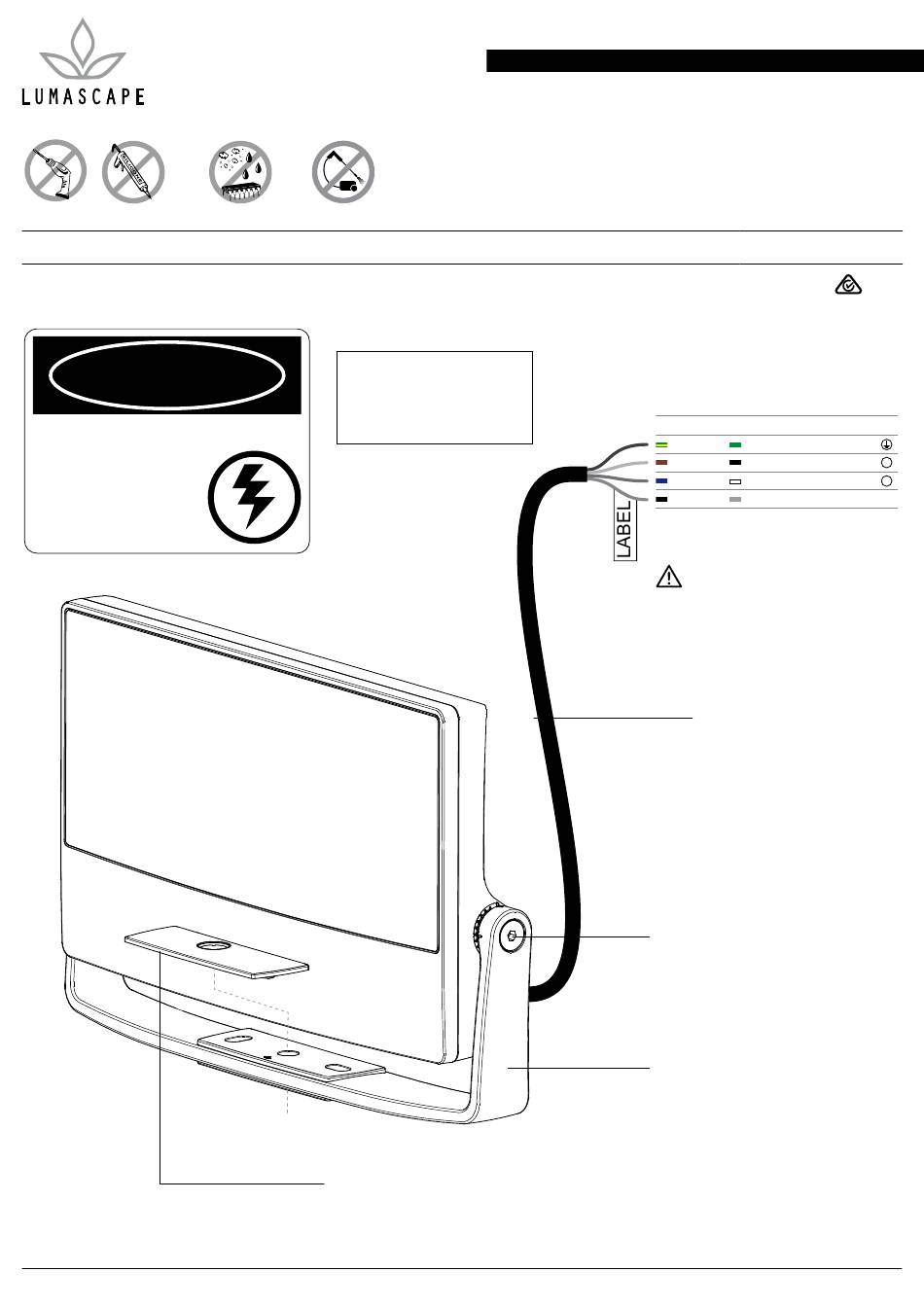

Lumascape LS9160 Installation Instructions

Lumascape
Brisbane Technology Park
18 Brandl Street, Eight Mile Plains, QLD 4113, Australia
T +61 7 3854 5000
F +61 7 3854 5001
E sales@lumascape.com.au
W www.lumascape.com.au
NO POWER DO NOT USE SILICONE KEEP ELECTRONICS FREE
TOOLS
ON OUTSIDE SURFACE FROM DIRT AND MOISTURE
LS9160 | LS9180 Facade Luminaire
Warranty void if not installed as per installation instructions
DANGER
ISOLATE LUMINAIRE FROM POWER
Failure to isolate power
supply before installation or
maintenance may result in
fire, serious injury, electric
shock, death and may
damage the luminaire.
www.lumascape.com.au
DO NOT HOSE OR
PREASSURE CLEAN
WARNING
Connecting the luminaire
incorrectly can lead to permanent
damage and void warranty.

Washer Plate (Q6 Luminaire Only)

Use washer plate when attaching the mounting bracket to an accessory
or when mounting to any mounting surface using a countersunk screw.
INSTALLATION INSTRUCTIONS
INSTALLATION TYPE Surface Mount
SUPPLY VOLTAGE 110-240 V AC, 50/60 H
INSTRUCTIONS COVER Single Colour

Wiring Details

CE Color Code
* Data wire must be appropriately insulated if not connected.

Locking Screw

Use Allen key to lock luminaire
tilt into place after adjusting.

Mounting Bracket

Use to attach luminaire to
suitable mounting surface.
FACADE LIGHT
MODEL LS9160 | LS9180
IP RATING IP66
Single Colour Dim
RGBx
Tunable White
UL / ETL Color Code Designation
Green / Yellow Green Earth / Ground
Brown Black Active / Live
Blue White Neutral
Black Grey Data *
Operating voltage on this wire is 24 V. Incorrect wiring will
damage luminaire and void warranty. Do not Hi-Pot test.
Bootlace ferrules must be ued on all wires
when connecting in terminal blocks.

Luminaire Cable

Connect to a suitable power
supply in accordance with
local wiring rules.
N653
L
N
IN0174 17511
