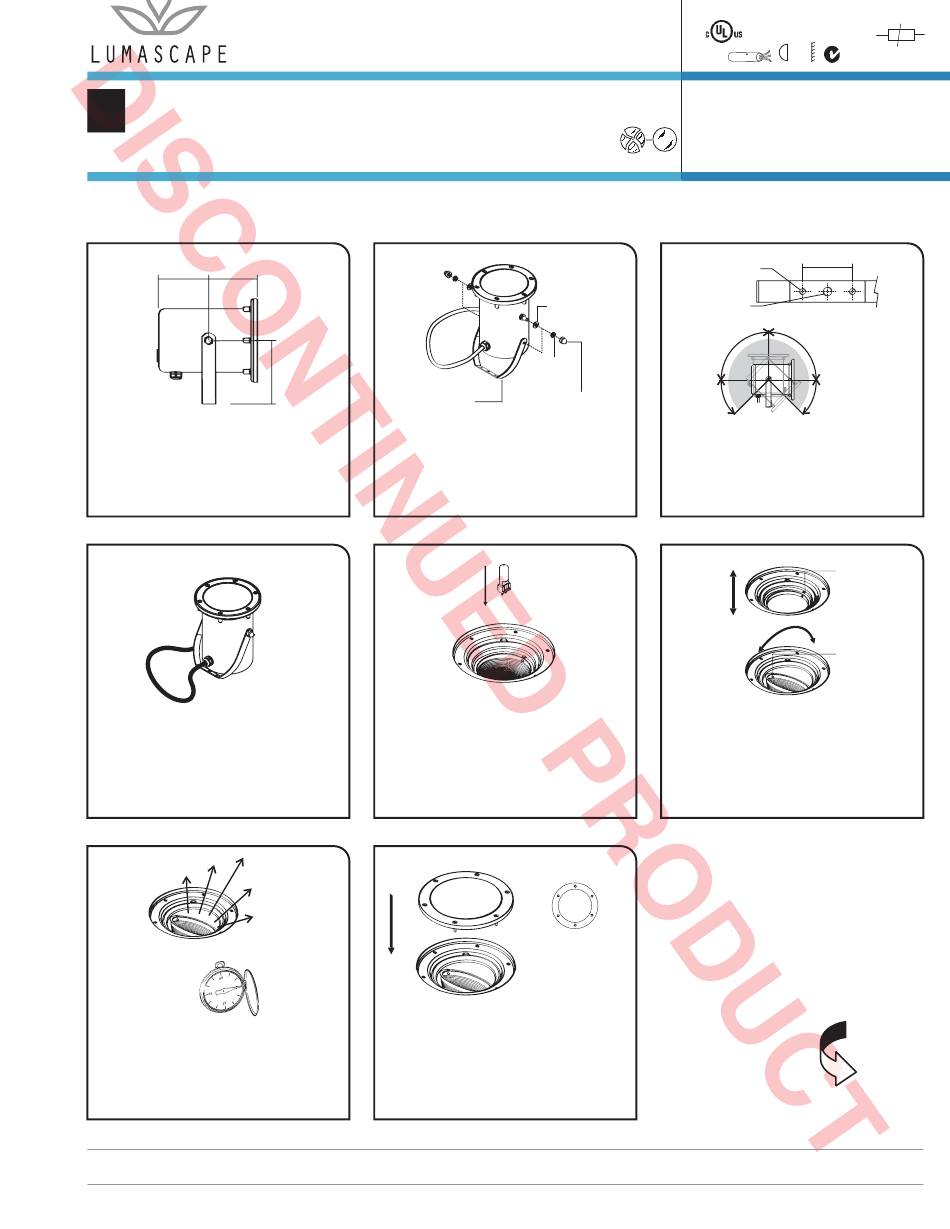

Lumascape LS345 Instructions

IMPORTANT INSTRUCTIONS
A
START
For Installation LS345: MH, UNDERWATER
HERE
Warning: The Luminaire should only be used complete with its protective shield (cover)
To avoid potential unsafe lamp failure, the luminaire should be switched off at least once a week
WARNING
If cable damaged replace with cable supplied by LUMASCAPE only.
DO NOT SHORTEN, INTERFERE OR DISCONNECT CABLE FROM FITTING. WARRANTY WILL BE VOID IF
CABLE ASSEMBLY IS TAMPERED WITH.
1
100MM 100-250MM
(3.93IN) (3.93-9.84IN)
Locate Fixtures
Site fixture in proximity to cabling.
Use discretion in locating fixtures as
glass can become very hot and may
burn.
4
Connect Supply
Connect fixture to supply cable according to
local wiring rules.
7
10-15 MIN.
Test Fixture
Test to ensure fixture is operational. Allow to
burn for 10-15 minutes to allow any
moisture in fixture to evaporate.
LUMASCAPE LUMASCAPE
HEAD OFFICE SYDNEY - NSW
T 07 3286 2299 F 07 3286 6599 T 02 9519 6860 F 02 9519 8834
Lumascape Lighting Industries 2006 ©
2
160MM
(6.3IN)
BRACKET
Mount Bracket to Fixture
Mount bracket supplied to fixture using
the M10 dome nuts and washers as
shown
5
Insert Lamp
Check lamp WATTAGE, VOLTAGE, and
TYPE, and insert into lampholder (refer to
lamp manufacturers documentation for
handling precautions).
8
Seal Fixture
Ensure seal and sealing surface is clean.
Clean glass if necessary. Tighten lid screws
using the 3mm Allen key supplied.
Lumascape recommends tightening in the
above Torque Pattern to 2.5 - 3 N.m.
DO NOT OVER TIGHTEN.
www.lumascape.com.au
LUMASCAPE H.I. LIGHTING
LUMASCAPE AGENT - WA
MELBOURNE - VIC
T 03 9686 1900 F 03 9686 1700 T 08 9321 5422 F 08 9321 5881
3
FLAT
WASHER
SPRING
WASHER
DOME NUT
6
Adjust Gimbal Position.
Adjust the vertical position of the gimbal to
minimise glare, and tighten locking screw.
Rotate gimbal to desired direction and
tighten locking screw.
Torque Pattern
1
3
6
5
4
2
LIGHTING PARTNERS AUSTRALIA NQ LIGHTING
LUMASCAPE AGENT - SA LUMASCAPE AGENT - NTH QLD
T 08 8232 0074 F 08 8232 0076 T 07 4031 4490 F 07 4031 5933
FOR UNDERWATER USE
1m
A.C.N. 010 572 773
t 90 C t 90 C
Lumascape Lighting Industries Pty Ltd
38-44 Enterprise Street, Cleveland, QLD 4163, Australia
PO Box 1875, Cleveland D.C., QLD 4163, Australia
T 07 3286 2299
F 07 3286 6599
E sales@lumascape.com.au
W www.lumascape.com.au
70MM (2.75IN)
2 X 8MM
12MM
BRACKET TOP VIEW
o
90
o
90
o o
30
30
Mount Fixture
Mount fixture to secure surface.
Orientate fixture as required and
tighten nuts
GIMBAL
LOCKING
SCREW
GIMBAL
ROTATION
LOCKING
SCREW
Further
information
over page
C1612US - 2006_07_REV001
LUMASCAPE USA INC
ECC LIGHTING
LUMASCAPE AGENT - NZ Free Call 1-866-695-LUMA(5862)
T 09 379 9680 F 09 308 9328 T 1-(650)-595-LUMA(5862) 1-(650)-595-5820
o
90
C1613 - 2007_01_REV-003
