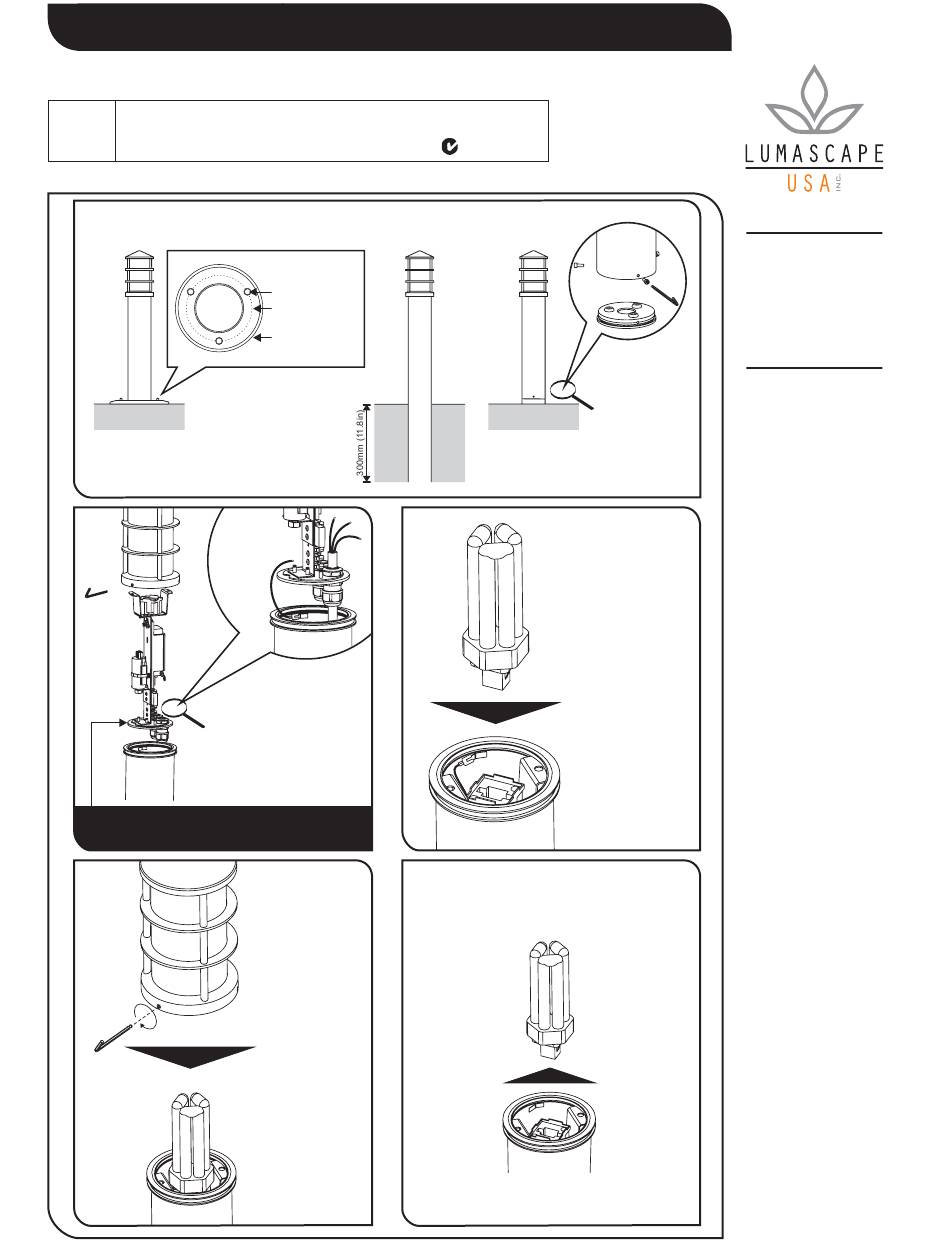

IMPORTANT INSTRUCTIONS
For Installation LS482
MODELS
LS482
Mains Voltage depicted 12V version available
Check fixture for wattage.
Note: To achieve IP66 rating, use round cable (size 5-10mm) to suit entry gland supplied with fixture.
1
Surface Mount Plate
not supplied by
Lumascape
2
Remove lid from fixture
and pull out gear tray.
Pull cable through gland
and tighten.
Connect leads to
terminal block.
Slide gear tray back into
mounting pole.
Warning
Rubber seal protects gear tray from moisture.
Do not use force. Make sure seal fits tightly against pole.
4
Direct Burial Post
Hole Size Ø11mm
PCD Ø120mm
Outside Diameter
Ø150mm
3

Wire up fixture

Fit cover & seal
1
Open fixture as shown in
Put lid on fixture
and seal by
2
Remove old lamp from fixture as shown below.
tightening all
three screws
around the base.
3
Insert lamp into fixture as shown in
4
Seal fixture as shown in
A.C.N. 010 572 773
Discreet Mount
Mounting fasteners
not supplied by
Lumascape
Insert lamp into fixture
Check wattage and
insert lamp into fixture.
Test to ensure lamp and
fixture is operational.
step 2
.
step 4
step 5
.
LUMASCAPE USA INC.
US Head Office
1300 Industrial Rd., Unit #19
San Carlos, CA 94070
USA
Telephone
1-(650)-595-LUMA(5862)
Fax
1-(650)-595-5820
www.lumascape.com
Free Call
1-866-695-LUMA(5862)
(US & Canada)
.
C1317US - 2006_07_REV001
