Technical Documentation

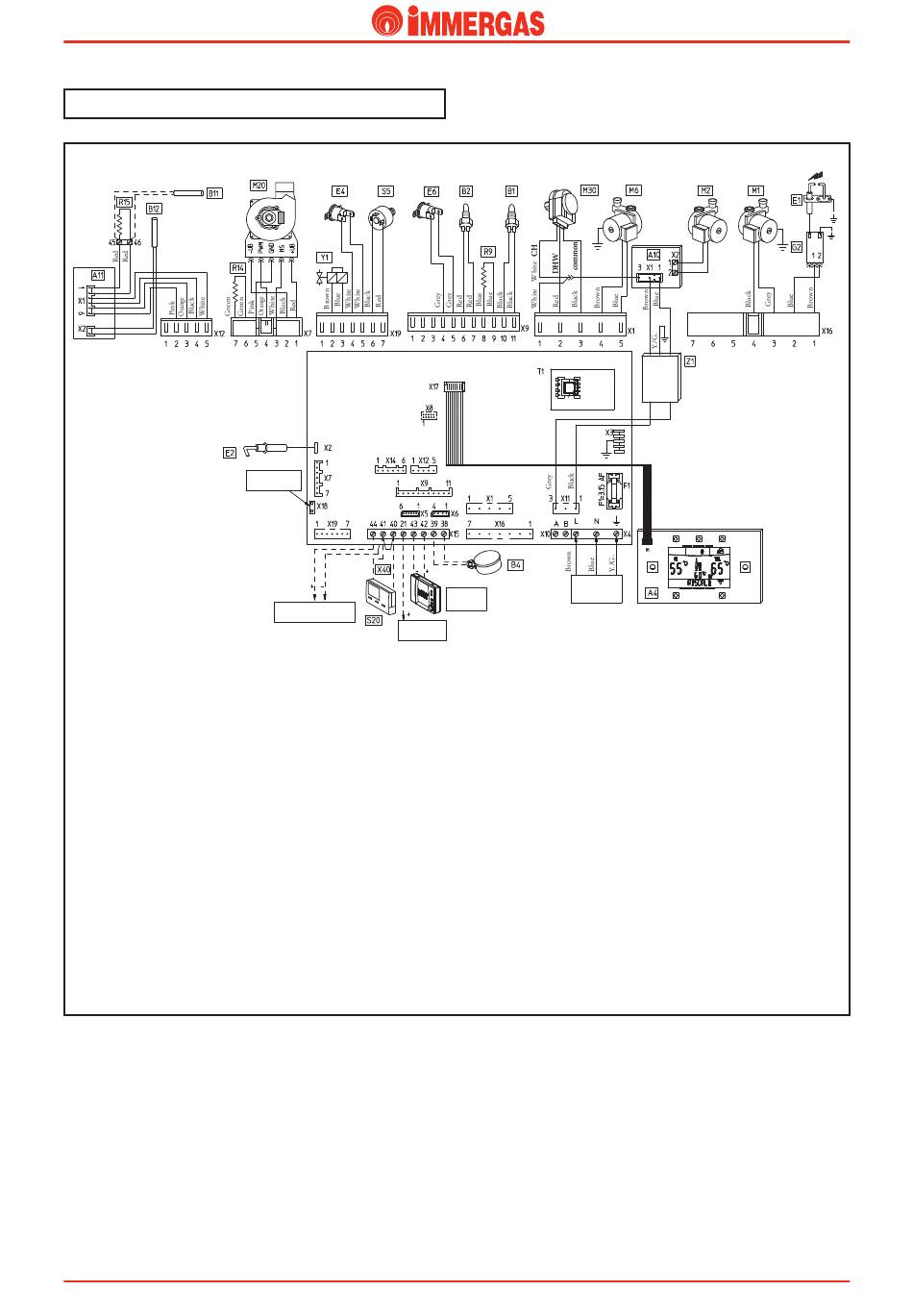

Electric circuit
Key:
A4 - Display board
A10 - Pump relay board
A11 - PT1000 interface board
B1 - Flow probe
B2 - Domestic hot water probe
B4 - External probe (optional)
B11 - Solar collector probe (PT1000)
B12 - Cylinder solar probe (PT1000)
E1 - Ignition electrodes
E2 - Detection electrode
E4 - Safety thermostat
E6 - Flue safety thermostat
F1 - Phase fuse
G2 - Igniter
M1 - Boiler pump
STHSC ed 0710
N FAN REVS
IMG BUS
CONNECTION
STATE
SIGNAL
Technical Documentation
Orange
230 Vac
50 Hz
Super CAR
power supply
Remote control
(Optional)
M2 - CH pump
M6 - Solar circuit pump
M20 - Fan
M30 - Three-way valve
R9 - Return probe resistance
R14 - Solar configuration resistance
R15 - Solar collector probe resistance
S5 - System pressure switch
S20 - Room thermostat (optional)
Super CAR - SUPER CAR remote control (optional)
T1 - Boiler card transformer
X40 - Room thermostat jumper
Y1 - Gas valve
Z1 - Anti-jamming filter
36
Brown
Blue
HERCULES Solar 26 1A
