Acuity Brands nLIGHT rSI 2S Manual

SPECIFICATIONS (rSI)
Electrical Specifications
Mechanical
Environmental Warranted Operating Temperature
Contains FCC ID: 2ADCB-RMODIT3
Contains IC: 6715C-RMODIT3
IFT #: RCPNLNL20-2057
Acuity Brands Lighting Inc. RMODIT3
In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the radiator shall not be less than
20cm during normal operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
SAVE THESE INSTRUCTIONS AND DELIVER TO OWNER AFTER INSTALLATION
• To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions, and other hazards please read all warnings and instructions
included with and on the fixture box and all fixture labels.
• Before installing, servicing, or performing routine maintenance upon this equipment, follow these general precautions.
• Installation and service should be performed by a qualified licensed electrician.
• Maintenance should be performed by qualified person(s) familiar with the products' construction & operation & any hazards involved. Regular maintenance programs recommended.
• To be installed to a circuit with overvoltage control to Overvoltage category Cat.III or less, minimum suppression rating 6.0 kV for a 600 V ac rms system voltage
• DO NOT INSTALL DAMAGED PRODUCT! This product has been properly packed so that no parts should have been damaged during transit. Inspect to confirm. Any part damaged
or broken during or after assembly should be replaced.
CAUTION: RISK OF PRODUCT DAMAGE
√ Electrostatic Discharge (ESD): ESD can damage product(s). Personal grounding equipment should be worn
during all installation or servicing of the unit.
√ Do not touch individual electrical components, as this can cause ESD and affect product performance.
√ Do not stretch or use cable sets that are too short or are of insufficient length.
√ Do not tamper with contacts.
√ Do not modify the product.
√ Do not change or alter internal wiring or installation circuitry.
√ Do not use product for anything other than its intended use.
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2022 Acuity Brands Lighting, Inc. All rights reserved. Rev. 05/30/2023
IS-RSI-002

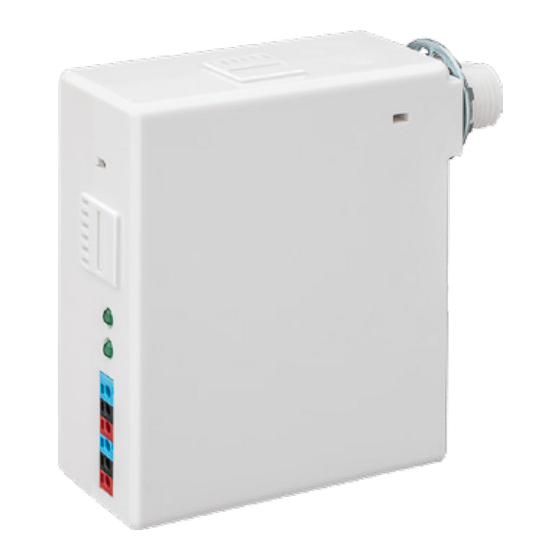

rSI 2S
Analog and dry contact input device
Operating Voltage 120-480VAC
Output Ratings 24VDC, 1mA source current per scene input
Mounting
1/2" Knockout (7/8" hole)
Connection Type Line and Low Voltage Leads
-20°C to 60°C
Standards/ Ratings RoHS, FCC / IC / IFETEL
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible
que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o
dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS!
C US LISTED
Full warranty terms located at: www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
TITLE 20/24
√ Disconnect or turn off power before installation or servicing.
√ Verify that supply voltage is correct by comparing it with the
√ Make all electrical and grounded connections in accordance with
√ All wiring connections should be capped with UL approved
√ All unused connector openings must be capped.
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY
• DO NOT USE OUTDOORS.
• DO NOT MOUNT NEAR GAS OR ELECTRIC HEATERS.
• EQUIPMENT SHOULD BE MOUNTED IN
• THE USE OF ACCESSORY EQUIPMENT NOT
Actual performance may differ as a result of end-user environment and application.
WARNING - RISK OF ELECTRIC SHOCK
product information.
the National Electrical Code (NEC) and any applicable local code
requirements.
recognized wire connectors.
IMPORTANT SAFEGUARDS
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
INCLUDING THE FOLLOWING:
LOCATIONS AND AT HEIGHTS WHERE IT WILL NOT
READILY BE SUBJECTED TO TAMPERING BY
UNAUTHORIZED PERSONNEL.
RECOMMENDED BY THE MANUFACTURER MAY
CAUSE AN UNSAFE CONDITION.
WARRANTY
5-year limited warranty.
Note: Specifications subject to change without notice.
WARNING - RISK OF BURN or FIRE
√ Do not exceed maximum wattage, ratings, or published
operation conditions of product.
√ Do not overload.
√ Follow all manufacturer's warnings, recommendations
and restrictions to ensure proper operation of product.
CAUTION - RISK OF INJURY
√ Wear gloves and safety glasses at all times when
installing, servicing or performing maintenance.
1 of 3
