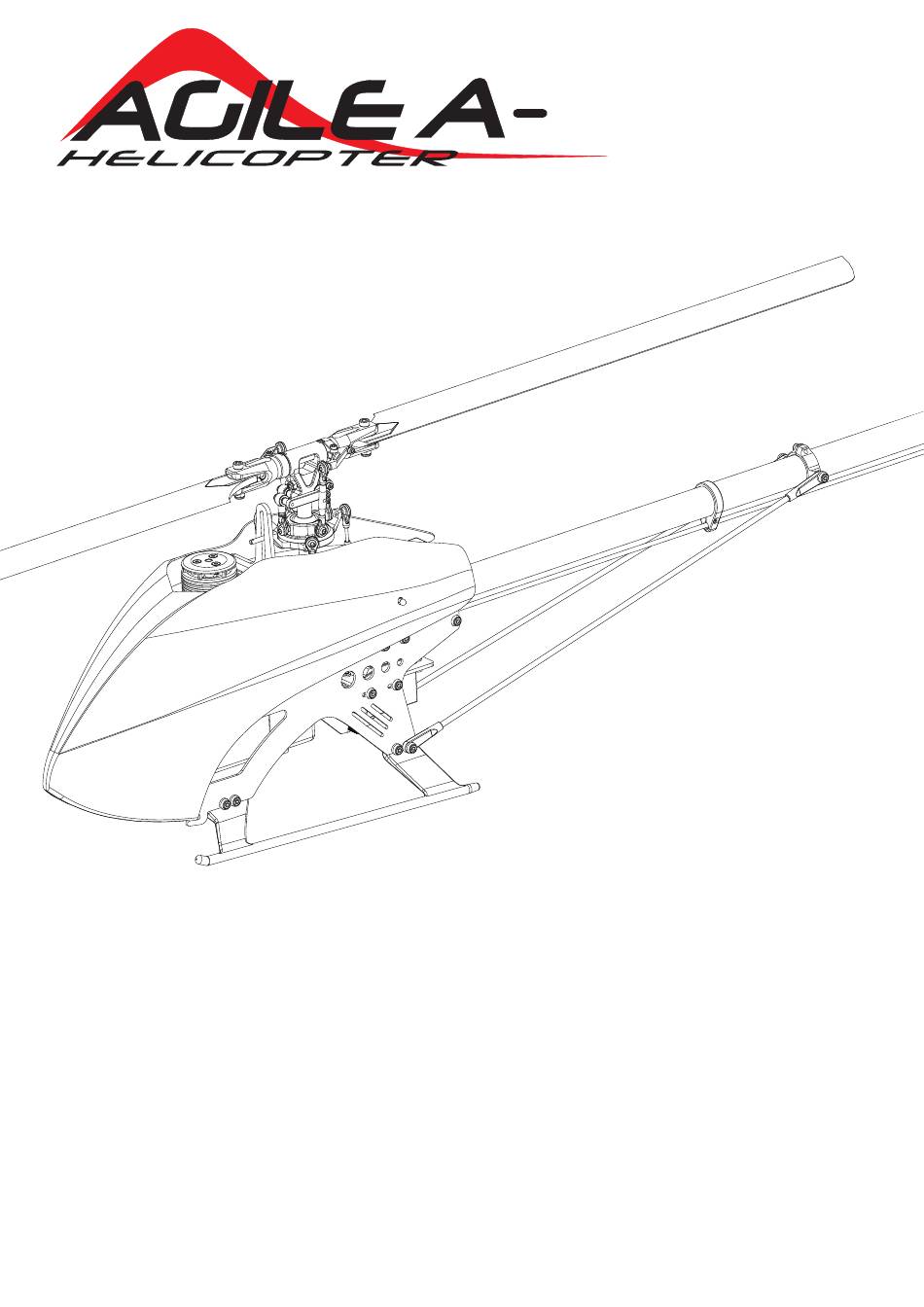

KDS Agile A-3 Instruction Manual

Hide thumbs

page of 24

/ 24
Bookmarks

Quick Links

Download this manual

使用说明书

INSTRUCTION MANUAL

机身长度：690mm

机身高度：200mm

机身宽度：100mm

主旋翼直径：Ø808

主旋翼长度：360mm

尾旋翼直径：Ø169mm

尾旋翼长度：63mm

马达齿：19T

马达KV ：2520-1880KV

传动齿轮：(19/50)(15/66)

传动比：19T(11.57:1)

尾传动比：4.24:1

起飞重量：1100g

电池：22.2V 1450-2000mAh

电调：60A

Thank you for buying Agile products. Please read this

manual carefully before assembling. We recommend that

you keep this manual for future reference regarding tuning

and maintenance.

感谢您选购 KDS AGILE产品，请您详细的阅读完这

本说明书之后再进行组装以及操作这台直升机，同时

请您妥善的保存这本说明书，作为日后进行调整以及

维修与参考。

Length：690mm

Height：200mm

Width：100mm

Main Rotor Diameter：Ø808

Main Blade Length：360mm

Tail Rotor Diameter：Ø169mm

Tail Blade Length：63mm

Motor Pinion：19T

Motor KV：2520-1880KV

Driving Gear：(19/50)(15/66)

Gear Ratio：19T(11.57:1)

Tail Gear Ratio: 4.24:1

Flying Weight: 1100g

Battery：22.2V 1450-2000mAh

ESC：60A

：

Version No

20211010

Table of Contents

Summary of Contents for KDS Agile A-3

Page 1 感谢您选购 KDS AGILE产品，请您详细的阅读完这本说明书之后再进行组装以及操作这台直升机，同时...
Page 2: Safety Notes
Congratulations on your purchase of the Agile A 3 remote controlled helicopter kit. Agile A 3 is proudly manufactured by KDS Model. Our goal was to offer you something different with a minimum of parts, easy maintenance, and outstanding flying performances. It’s time to fly different!...
Page 3 3 遥控直升机，AGILE A 3 由KDS 模型生产制造完成。我们的目标是用最少的配件，为客户提供高质量产品，容易维护以及达到出色的飞行效果。...
Page 4: Safety Check Before Flying
PREVENT MOISTURE R/C models are composed of many precision electrical components. lt is critical to keep the model and associated equipment away from moisture and other contaminants. The introduction or exposure to water or moisture in any form can cause the model to malfunction resulting in loss of use, or a crash.
Page 5 勿不当使用本产品请勿自行改造加工，任何的升级改装或维修，请使用KDS产品目录中的零件，以确保结构的安全，请确认于产品界限内操作，请勿过载使用，并勿用于安全，法令外其它非...
Page 6: Equipment Required For Assembly
4.Equipment Required for Assembly RADIO TRANSMITTER AND ELECTRONIC EQUIPMENT REQUIRED FOR ASSEMBLY •Brushless electric motor: 2520-1880KV (3mm Bolt holes, 16-19mm mount width, 3.5mm motor shaft) •Speed controller: minimum 60A (ESC specs limits should be rated accordingly to the maximum amps handling by the motor) •Lipo Batteries: 6s 1450-2000 mAh •Electronic flybarless system •3 pcs swashplate +1 pcs tail servo's...
Page 7 5.飞机所需的配置发射机和电子配件 • 无刷马达：2520-1880KV（3mm 螺丝孔，16-19mm安装宽度，3.5mm马达轴） • 电子调速器：最低60A • 锂电池：6S 1450-2000mAh • 3个十字盘舵机+1个锁尾舵机 • 360mm 主旋翼碳纤桨叶 •...
Page 8 7. 组装说明 ASSEMBLY SECTION 轴承杯头内六角螺丝 Bearing Hexagon socket head φ5Xφ10X4 cap screws 止推轴承 M2X8 Thrust bearing 杯头内六角螺丝 F5-10M Hexagon socket head 垫片 cap screws Washer M2X4 φ5Xφ7X0.5 主桨夹轴承 Main blade grip Bearing φ5Xφ10X4 止推轴承滚珠涂润滑油大桨夹支臂 Thrust bearings need lubricating oil Main blade grip arm 球头...
Page 9 7. 组装说明 ASSEMBLY SECTION 杯头内六角螺丝 Hexagon socket head cap screws M2X8 法兰轴承轴承 Flange Bearing Bearing φ2.5Xφ6X2.5 φ2Xφ5X2.5 FBL转接臂 FBL Radius head FBL摇臂 FBL Radius arm 机米螺丝 Set screw M2X10 球头扣 Bail link 杯头内六角螺丝 Hexagon socket head cap screws M2.5X16 防松螺母M2.5 Locknut 杯头内六角螺丝...
Page 10 7. 组装说明 ASSEMBLY SECTION 球头 D BALL D 十字内盘上盖 Swashplate upper cap 关节轴承 Knuckle bearing 球头 D BALL D 十字外盘 Swashplate outer plate 限位销 Locking pin 十字内盘下盖轴承 Swashplate under plate Bearing φ20Xφ27X4 圆头螺丝 Round head screw M2X4 Have "A" sign ball link pointing out 球头扣有“A”字面朝外...
Page 11 7. 组装说明 ASSEMBLY SECTION 轴承尾皮带压轮 Bearing Tail Belt wheel φ2Xφ5X2.5 铝套 Aluminum sleeve 尾摇臂固定座 Rocker arm mount 尾轴 Tail shaft 皮带 φ4X55 Belt 2m-1068 尾波箱 Tail gear box 机米螺丝杯头内六角螺丝 Set screw Hexagon socket head M3X3 cap screws M2X22 半圆头内六角螺丝...
Page 12 7. 组装说明 ASSEMBLY SECTION 沉头内六角螺丝 Countersunk head socket screw 球头 C M2*7 Bails 外径大垫片外径小 Larger ID Smaller ID Washer 3X5X0.5 垫片 Washer 2X5X0.8 尾中联 Tail rotor hub 轴承 Bearing 尾桨夹杯头内六角螺丝 φ3Xφ6X2.5 止推轴承 Tail blade grip Hexagon socket head 轴承...
Page 13 7. 组装说明 ASSEMBLY SECTION 杯头内六角螺丝 Hexagon socket head cap screws M2X6 螺丝垫片 Screw gasket 碳纤垂直翼 CF Vertical stabilizer 杯头内六角螺丝 Hexagon socket head cap screws M2.5X10 尾管 Tail boom 杯头内六角螺丝 Hexagon socket head cap screws M2X6 尾推杆 CF Rudder control rod φ...
Page 14 7. 组装说明 ASSEMBLY SECTION 杯头内六角螺丝 Hexagon socket head cap screws M3X14 皮带压轮轴承 Belt wheel Bearing 铜套 φ8Xφ16X5 Copper sleeve 轴承 Bearing φ5Xφ10X4 铜套 Copper sleeve 轴承 Bearing φ3Xφ7X3 主轴轴承下座 Servos under mount 杯头内六角螺丝 Hexagon socket head 拔销帽 cap screws Aluminum Battery stop handle M2.5X12 弹簧固定座...
Page 15 7. 组装说明 ASSEMBLY SECTION 舵机固定座 Servo mount 主轴轴承上座轴承 Main shaft under mount Bearing φ5Xφ10X4 轴承 Bearing 杯头内六角螺丝 φ8Xφ16X5 Hexagon socket head cap screws M2.5X6 十字盘导轨 Swashplate Anti-rotation bracket 舵机固定支架 servo mounting frame 杯头内六角螺丝 Hexagon socket head cap screws M2X6 杯头内六角螺丝...
Page 16 7. 组装说明 ASSEMBLY SECTION 无刷马达 Brushless motor 马达齿轮(3.5mm) Drive pinion 19T 机米螺丝 Set screw M3X3 沉头内六角螺丝 Countersunk head 此螺丝待装入机身调紧同步带后再锁紧 socket screw After the motor belt is installed and M3*6 adjusted, tighten double head screws 15mm Page 15...
Page 17 7. 组装说明 ASSEMBLY SECTION 半圆头内六角螺丝半圆头内六角螺丝 Hexagon socket screws Hexagon socket screws M2X5 M2X5 侧板电池板滑轨电池板滑轨 Main frame Battery plate slippery course Battery plate slippery course 沉头内六角螺丝 Countersunk head socket screw 电子放置板 M2.5*6 CF electronic plate After the Main frame set is assembled, the side panels need to be 90 degrees vertical 机身组装好后两侧板须水平面垂直成90度...
Page 18 7. 组装说明 ASSEMBLY SECTION 螺丝垫片 Screw gasket 脚架杯头内六角螺丝脚架 Landing gear Hexagon socket head Landing gear 脚架固定座 cap screws Landing gear mount M2.5X10 轴承 Bearing φ8Xφ14X4 轴承 one-way bearing φ8Xφ14X8 主齿轮固定座 Main gear hub 轴承 Bearing φ10Xφ15X4 Page 17...
Page 19 7. 组装说明 ASSEMBLY SECTION 主齿轮66T Main gear 单向轴承套 One-way bearing center shaft 半圆头内六角螺丝 Hexagon socket screws 皮带轮72T M2.5X5 Belt pulley 72T 皮带在尾管内不能有扭绕现象，尾管前端皮带和尾桨转动如图示为正确方向 Belt shall not be crossed twisted in the tail boom, the front end and tail rotor shall rotate correctly as shown 机米螺丝...
Page 20 7. 组装说明 ASSEMBLY SECTION 杯头内六角螺丝 Hexagon socket head cap screws M2.5X6 尾舵机固定板 CF Tail servo mount 尾舵机固定座 Tail servo mount 舵机 Servo 杯头内六角螺丝 Hexagon socket head cap screws M2X6 螺丝垫片 Screw gasket 杯头内六角螺丝 Hexagon socket head cap screws M2.5X6 舵机装入机架前需调舵机中位设置好 Please adjust the middle position of the servo's before installing it Page 19...
Page 21 7. 组装说明 ASSEMBLY SECTION 尾撑杆接头 Boom support head 尾撑杆 Tail boom brace rob 球头扣拉杆 Bail link Linkage Rod 20mm 杯头内六角螺丝 Hexagon socket head 螺丝垫片 cap screws Screw gasket M2.5X8 杯头内六角螺丝 Hexagon socket head cap screws M2.5X12 Page 20...
Page 22 7. 组装说明 ASSEMBLY SECTION 电池板导轨座 Battery guide block support 电池板固定座 Battery plate buckle mount 碳纤电池板 CF Battery plate 铝套 Aluminum sleeve 沉头内六角螺丝 φ2Xφ5X3 Countersunk head socket screw M2X6 沉头内六角螺丝 Countersunk head socket screw M2X6 电池 Battery 电池绑带 Battery Velcro 杯头内六角螺丝 Hexagon socket head 防松螺母M3 cap screws...
Page 23 7. 组装说明 ASSEMBLY SECTION 防松螺母M2 Locknut 碳纤尾旋翼63mm CF Tail Blades 63mm 杯头内六角螺丝 Hexagon socket head cap screws M2X12 无刷马达 Brushless motor 无副翼陀螺仪 Flybarless module 无刷电调锂电池 ESC(Speed controler) Battery Page 22...
Page 24 7. 组装说明 ASSEMBLY SECTION 机头罩 Canopy 头罩胶圈 Canopy rubber ring Page 23...
