Icom IC-F3001 Service Manual Addendum page 30

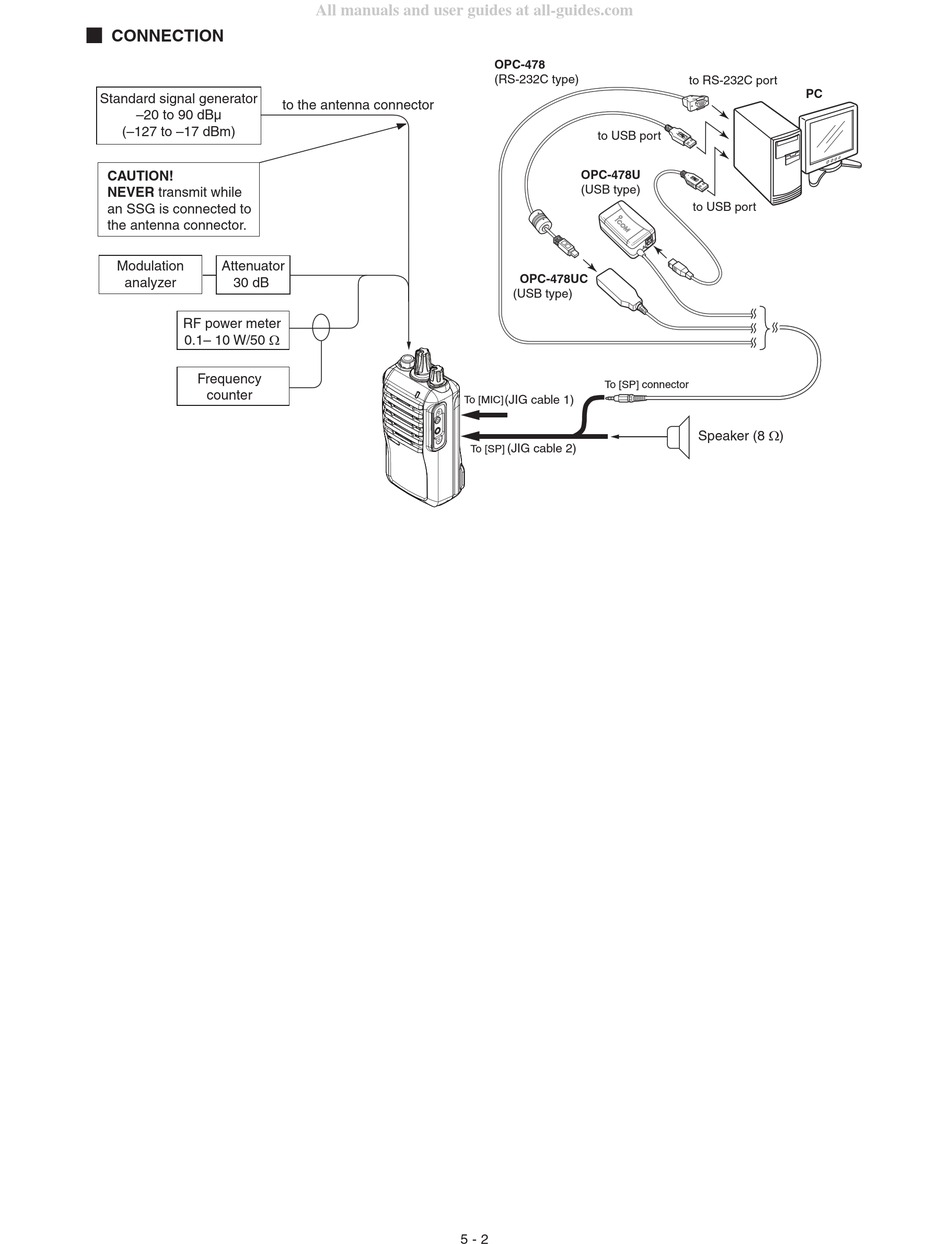

¤ CONNECTION
Standard signal generator
–20 to 90 dBµ
(–127 to –17 dBm)
CAUTION!
NEVER transmit while
an SSG is connected to
the antenna connector.
Modulation Attenuator
analyzer
30 dB
RF power meter
0.1– 10 W/50 Ω
Frequency
counter
All manuals and user guides at all-guides.com
to the antenna connector
5 - 2
OPC-478
(RS-232C type)
to USB port
OPC-478U
(USB type)
OPC-478UC
(USB type)
To [SP] connector
(JIG cable 1)
To [MIC]
(JIG cable 2)
To [SP]
to RS-232C port
PC
to USB port
Speaker (8 Ω)
