SECTION 3.

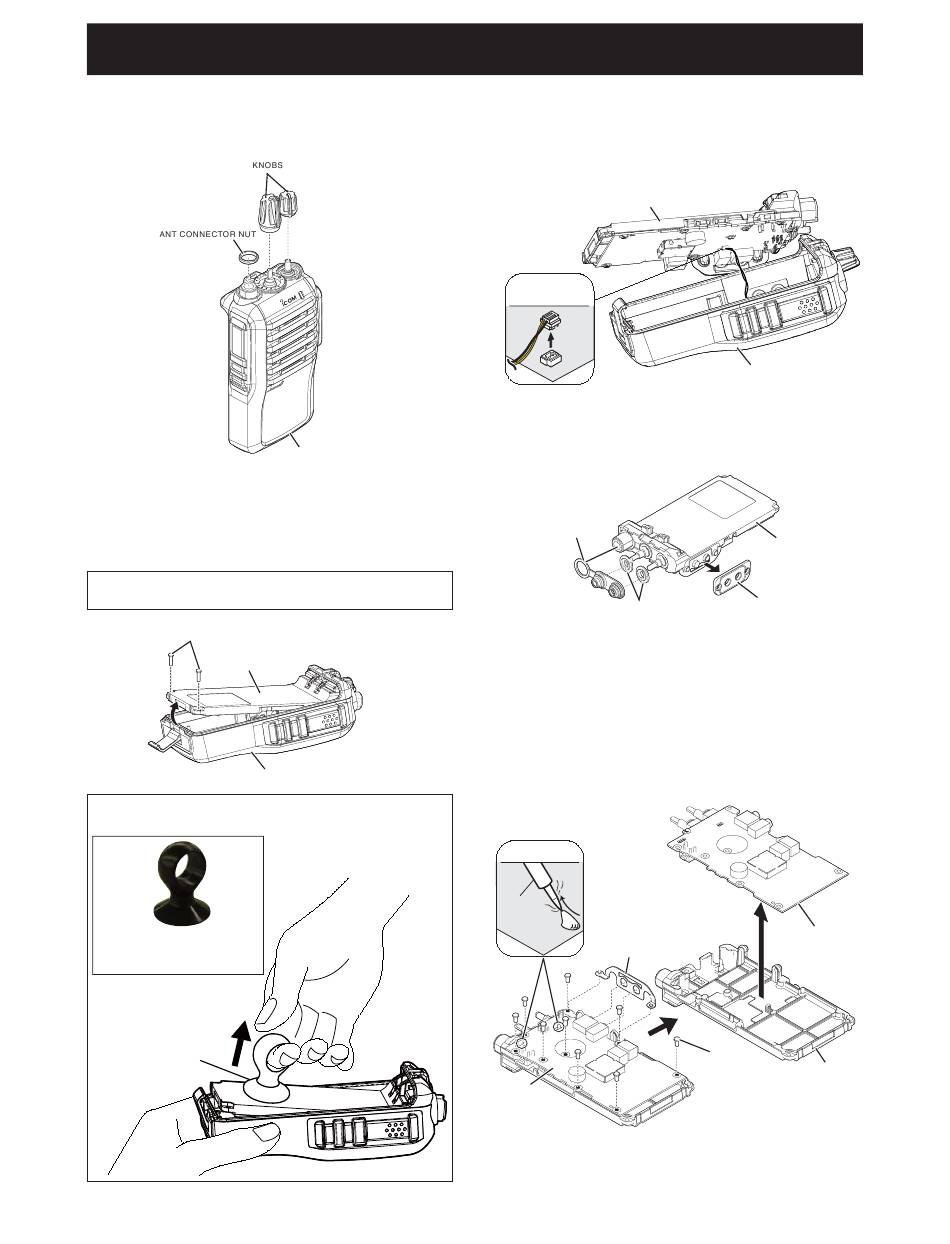

1. REMOVING THE CHASSIS
1) Remove the ANT connector nut and 2 knobs.
2) Remove 2 screws from the bottom of the CHASSIS.
3) Lift the bottom of the CHASSIS up in the direction
of the arrow.
BE CAREFUL to not pull out the speaker wire when
separating the CHASSIS and the FRONT PANEL.
SCREWS×2
CHASSIS
FRONT PANEL
For easy separation of the CHASSIS
Use a suction lifter to lift the bottom of the CHASSIS up.
Suction lifter
• Part name : EA950R-2
• Manufacture : ESCO CO.LTD
Suction lifter
All manuals and user guides at all-guides.com
DISASSEMBLY INSTRUCTION
FRONT PANEL
(Continued to the right above)
4) CAREFULLY lift the chassis out of the FRONT PANEL
and turn it over in order to unplug the speaker wire.
CHASSIS
SPEAKER
WIRE
5) Remove the seals and nuts from the CHASSIS.
TOP SEAL
NUTS×2
2. REMOVING THE MAIN UNIT
1) Remove the 9 screws and the side plate from the
MAIN UNIT.
2) Unsolder the 2 points shown, and then remove the
MAIN UNIT.
UNSOLDER
Solder
remover
SIDE PLATE
MAIN UNIT
3 - 1
FRONT PANEL
CHASSIS
SIDE SEAL
MAIN UNIT
SCREWS×9
CHASSIS
