Heat pump
HPM.Z
Assembly and operating instructions

Advertisement

Table of Contents
loading

Related Manuals for Kospel HPM.Z

Summary of Contents for Kospel HPM.Z

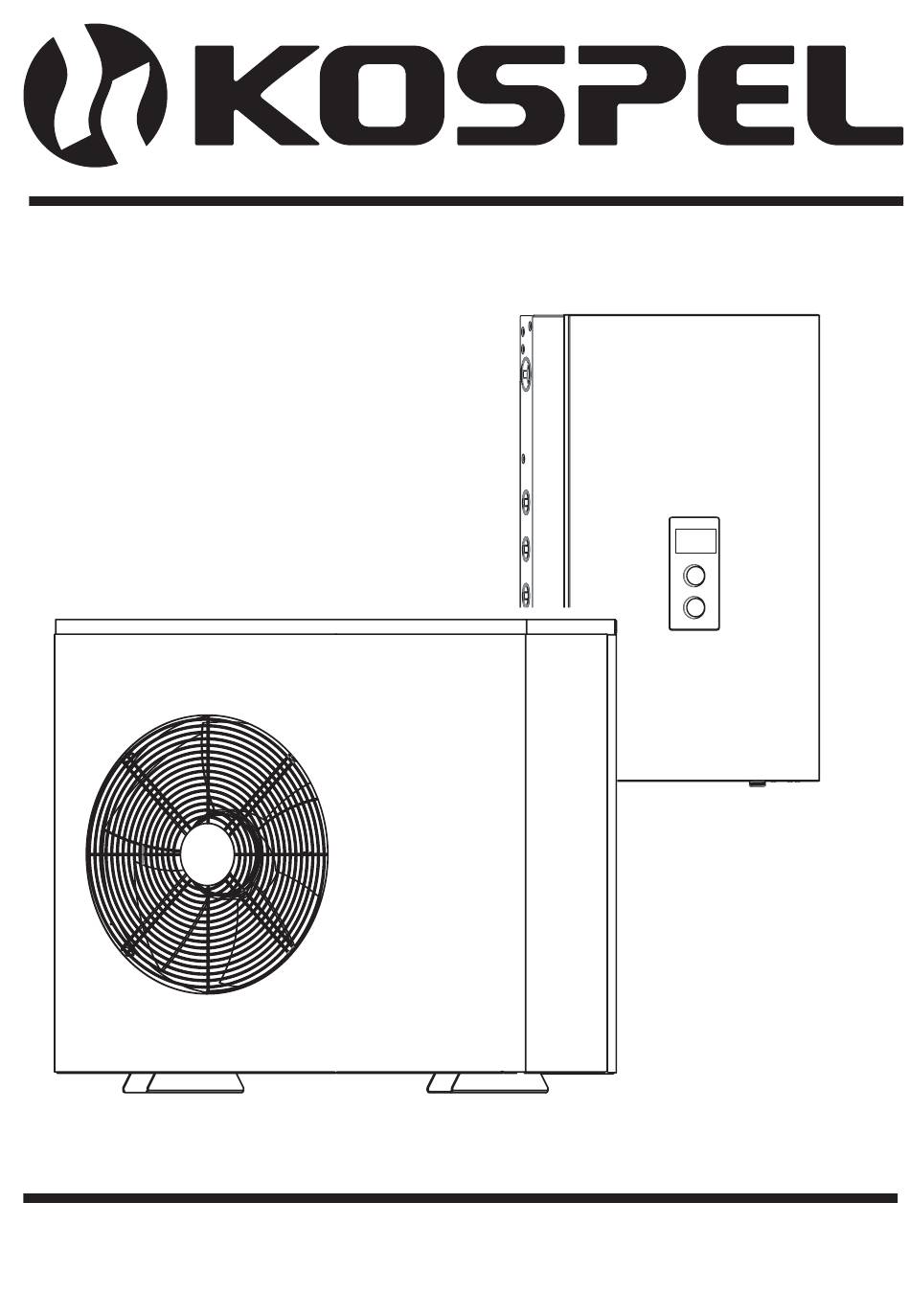

  • Page 1 Heat pump HPM.Z Assembly and operating instructions...
  • Page 2 Heat pump HPM.Z is a device hermetically sealed and contains fluorinated greenhouse gases. This appliance can be used by children aged from 3 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if...
  • Page 3 Description Heat pump HPM is a device used to heat/cool the building and heat the domestic hot water. Device is equipped with two units: outdoor unit HPMO, compressor heat pump. Operation of the device is based on taking heat from the environment and forwarding it to the heating circuit in the building.
  • Page 4 Conditions for use and reliable operation of the device Reading the contents of this instruction manual will enable proper installation and operation of the device, ensuring its long-term and reliable operation. The heat pump must be installed in accordance with the guidelines contained in this user manual.
  • Page 5 Fig.1 Module HPMO [10] - economizer [1] - ventilator [11] - pressure transducer [2] - reversing valve [12] - heating medium outlet G1" [3] - pressure switch [13] - connection strip (PNL, modbus) [4] - electromagnetic valve [14] - air vent socket (cork G1/2") [5] - compressor [15] - condenser [6] - liquid tank...
  • Page 6 Fig. 2 Module HPMI [1] - electrical connection [8] - safety valve [2] - thermal cut-off [9] - circulation pump [3] - expansion vessel [10] - CH valve [4] - automatic air vent [11] - DHW valve [5] - rated power [12] - control panel [6] - heating element [13] - device driver...

  • Page 7: Automatic Defrost

    Heating and DHW mode with the heat pump switched off When the outdoor temperature drops below the set shut-down temperature value, the heat pump is automatically turned off and cannot produce heating water. In this case, the heating and DHW mode is automatically performed by the additional electric heater of the indoor unit.
  • Page 8 Noise Sound pressure level for different distances from the device. Distance from the noise source r [m] Power level Directivity acoustic factor Lw [dB (A)] Sound pressure level Lp [dB (A)] Q = 2: freestanding heat pump on the outside of the building. Q = 4: heat pump on the building's wall.
  • Page 9 Fig.3 The assembly of outdoor unit HPMO Proposed distance from right, left, top and behind wall - 50cm, front - 3m [1] - concrete foundation [2] - gravel [3] - the pipe for the condensate [4] - gravel ground [5] - base [6] - vibration isolator air inlet ≥50cm...
  • Page 10 Fig.4 The assembly of indoor unit HPMI Ø50 cable entry on the back cover cable entry on the left side cover 4x dowel holes expansion bolts with a head hexagonal 300min. 300min. Fig.4a The assembly of outdoor unit HPMO mounting screw spacing location of the condensate drain socket refrigerant manometer electrical connection point...
  • Page 11 G1" DHW supply CH buffer supply G3/4" drainage of safety valve 55.8 158.3 G1" outdoor unit G1" circuit return (HPMO) cooling supply EN-102B_f.1296...
  • Page 12 Connection to the electric installation Fig.5 Outdoor unit HPMO connection communication cable connection power cord connection Fig.6 Indoor unit HPMI connection PCRK PCRK PCRK - circulation pump DHW PO - Circulation pump CH1 (radiator circuit) PG - Glycol pump TBCH TBCH PM - Mixing valve pump ZM - Mixing valve...
  • Page 13 Fig.7 Diagram of connection the heat pump to three-phase installation HPMI configuration of microswitches HPMO device driver [13] Fig.8 Diagram of connection the heat pump to one-phase installation HPMI configuration of microswitches HPMO device driver [13] EN-102B_f.1296...
  • Page 14 Connection of outdoor sensors and devices Circulation temperature sensors (TCRK) The assembly of sensor was shown on the diagram of hydraulic installation. The connection cable of the temperature sensor should be as short as possible, it should not be placed in close proximity to the power cords and twisted around other cords. Attention, the connection of the sensor is optional, in case of its absence, circulation pump works continuously according to circulation schedule.
  • Page 15 Outside temperature sensor (TZEW) The sensor should be mounted in a shaded place, on the north or north-west siede of the building's facade, away from windows and vents. The connection cable of the temperature sensor should be as short as possible, it should not be placed in close proximity to the power cords and twisted around other cords.
  • Page 16 Connection to the hydraulic installation The HPM heat pump can operate in a closed hydraulic installation system (minimum pressure of the heating medium is 0.6 bar). Hydraulic installation should be made in accordance with applicable standards. Wires connecting the heat pump to the indoor module should have an inside diameter of min. 25mm.
  • Page 17 Fig.9 An examplary diagram of an installation with a plane heating circuit / cooling circuit, radiator circuit, heating buffer and storage tank domestic hot water. . TPOK TZEW HPMI SWPC TCRK HPMO ZCWU PCRK NW co HP.HS.24 TZAS NW cwu ZA EA Fig.10 An examplary diagram of an installation with a plane heating circuit, radiator circuit, heating buffer, storage tank domestic hot water and cooling circuit with fan coil.

  • Page 18: Filling And Venting

    HPMO - heat pump (10kW A7/W35) HPMI - hydraulic module (4/6/8kW) KO - venting connection SZ - dirt separator TZEW - outside temperature sensor ZCWU - zone valve, loading the domestic hot water cylinder ZCO - zone valve, loading the buffer tank CH ZCH - zone valve, circuit cooling supply PHP - circulation pump OG - radiator heating...

  • Page 19: Maintenance

    Assessment of the assembly in terms of leaks, disturbing noises (e.g. noise at poor deaeration). Initial user instruction in the use of the HP system Record the relevant parameters in the Start-up chart form in the HPM.Z operating instruction. Zero Commissioning registration by the installation company in the Aura Kospel system, https://aura.kospel.pl/commission/createFromShortcut? shortcut_id = 27.
  • Page 20 Activities to be performed at the Zero Commissioning: Electrical system condition control • Measurement of the supply voltage of the HPMI indoor unit - _ _ _ V. • Checking the correctness of the installed electric wires in the internal HPMI unit (tightening the electric wires).

  • Page 21: Control Panel

    Control panel Use the operating dial [3] to set one of the modes: winter summer 9:37 Tu 04.02.2020 9:37 Tu 04.02.2020 5,1° 5,1° By turning the navigation dial [2] (left or right), 25.0° 25.0° 60° 60° with winter or summer mode active, change 24.2 24.2 °...
  • Page 22 MAIN SCREEN: 1 - heat reception signaling 2 - executing of a heating program 9:37 Tu 04.02.2020 9:37 Tu 04.02.2020 3 - immersion heater is turned on signaling 5,1° 5,1° 4 - compressor operation signaling 5 - realized temperature in the room signaling 25.0°...
  • Page 23 SETTINGS: Adjusting boiler parameters to user preferences. • Room temp. 9:37 Thu 22.04.2021 9:37 Thu 22.04.2021 Economy temp. , Comfort - , Comfort , Comfort + : setting temperature values available in schedules, Party, Holiday: select temperature parameters for programs. Settings Settings Cooling: room temperature setting in cooling...
  • Page 24 • DHW program (only available in DHW cylinder systems with internal adjustment activated No. 1...No. 8 > setting 8 daily programs. In each daily program there are 5 editable time frames, which can have one of the room temperature sets ( In any other case, the economy temperature will be activated ( 1 - the number of the time interval (max.5) 2 - start time of the selected temperature...
  • Page 25 • DISINFECTION (only available in systems with DHW): WEEK DAY: the day for disinfection during. TIME: the time it takes to disinfect with automatic program. WORKING TIME: time of disinfection (calculated from the moment the temperature has reached disinfection). AUTOMATIC WORK: Yes - automatic work start of disinfection at the set time (time, day of the week, beginning time) No - automatic disinfection turned off.
  • Page 26 SERVICE / CONFIGURATION: Configuration 9:37 Thu 22.04.2021 9:37 Thu 22.04.2021 Adaptation of the heat pump: Service / Configuration Service / Configuration * Changes in the configuration menu are possible after entering an access code. When prompted for an access code, turn the navigation dial to the required code and confirm the code by pressing the dial.
  • Page 27 • CH1 circuit: Heating curve no.: selection of a heating curve (see Chapter Heating curve). Note, the parameter is present when the control according to a curve is set heating [Configuration -> Heating -> Regulation type: Acc. curve], Curve offset: Heating curve offset (see section Curve heating). Note that the parameter is present when the control is set according to heating curve [Configuration ->...
  • Page 28 • Cooling: Type: Off: cooling function inactive, Fan coil, Plane. Temperature of the medium: temperature of the refigerant, Hysteresis: Hysteresis for the refigerant. • Cylinder: Time without immersion heater: the parameter defines the time after which the heat pump is supported it will be an additional source of heat (immersion heater) if it does not reach the set value water temperature in the tank.
  • Page 29 • Pumps: Pumps protection: short-term activation time of the circulation pumps with a longer one standstill (blocking protection), Venting: Off - venting turned off, CH1 - CH1 circulation venting enabled, CH2 - CH2 circulation venting enabled, VCH - cooling circuit venting enabled, During the venting procedure (10min) the heat pump in the hydraulic module runs alternately at maximum and minimum speed and the pumps the respective circuits are on.
  • Page 30 PARTY/HOLIDAY (available in the system with cylinder) Fast switching algorithm of work depending on 9:37 Thu 22.04.2021 9:37 Thu 22.04.2021 the needs. • PARTY: SET DURATION TIME [HOURS] (from 1 to 24 hours or until the user’s change). • HOLIDAY: SET DURATION TIME [DAYS] (from 1 to 60 days or until the user’s change).

  • Page 31: Protection Against Frost

    CH program CH program 1 0:00 - 23:59 CH program CH program 1 6:00 - 9:15 1 6:00 - 9:15 2 15:20 - 22:15 2 15:20 - 22:15 Protection against frost In stand-by and summer mode, if the room temperature drops below 7°C, the heating of the central heating circuit will be turned on.

  • Page 32: Heating Curve

    Heating curve Heat pump's controller is responsible for maintaining proper temperature in central heating installation depending on the outside temperature. While the temperature outside the facility is low, heat demand within the facility is higher, whereas while the temperature outside is high, analogically, there’s no need to maintain high temperature within the installation.

  • Page 33: Technical Data

    Technical data Outdoor unit HPMO-10 Rated heating output A+2/W35 4,2/9,5 Power consumption A+2/W35 w 1,2/2,9 Performance factorA+2/W35 3,6/3,2 Rated heating output A+7/W35 5,2/10,5 Power consumption A+7/W35 1,2/3,1 Performance factor A+7/W35 4,5/3,5 Rated heating output A-7/W35 2,7/7,3 Power consumption A-7/W35 1,2/2,7 Performance factor A-7/W35 2,2/2,7 Electrical values...
  • Page 34 Indoor unit HPMI Electrical installation Power supply 230V~ /400V 3N AC, 50Hz Safety class IP 22 Maximum rated power of electrical additional heater for 1F system min 3x6; max 3x10 Cross-section of power cable for 3F system min 5x4; max 5x10 for 1F system Circuit breaker rated current overcurrent...

  • Page 35: Product Card

    Product card (in accordance with EU Regulation 811/2013; Annex IV) Supplier's name or trademark KOSPEL Sp. z o.o. Supplier's model identifier HPMO-10 Seasonal energy efficiency class space heating for the model, in conditions temperate climate (*) Rated thermal power, including rated...
  • Page 36 Product card (in accordance with EU Regulation 811/2013; Annex IV) Supplier's name or trademark KOSPEL Sp. z o.o. Supplier's model identifier HPMO-10 Seasonal energy efficiency class space heating for the model, in conditions temperate climate (*) Rated thermal power, including rated...
  • Page 37 Set data sheet The value of the seasonal space heating energy efficiency for basic space heating A factor that weighs the thermal power of the primary heaters and additional heaters included The value of the mathematical expression: 294/(11 ˙ Prated) 3,34 The value of the mathematical expression: 115/(11 ˙...
  • Page 38 Heat pump HPM.Z Kospel Sp. z o.o. start-up card Start-up date Assembly address Stamp Certi cate no. Installer's data Outdoor unit no. Indoor unit no. C.MI2 module no. Data Type of plate exchanger DHW cylinder type Buffer CH type Data of additional devices...
  • Page 39 Used product can’t be treated as general communal waste. Disassembled appliance has to be delivered to the collection point of electrical and electronic equipment for recycling. Appropriate utilisation of used product prevents potential negative environmental influences that may occur as a result of inappropriate handling of waste.
  • Page 40 KOSPEL Sp. z o.o. 75-136 Koszalin, ul. Olchowa 1, Poland tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl Made in Poland...
