Summary of Contents for Kospel HPSW-2/250
- Page 1 Heat Pump HPSW-2/250 Installation and operating instructions...
- Page 2 This appliance may be used by children at the min. age of 8 years and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge about the product, provided that they have been given supervision or instruction concerning safe usage of the appliance and that they are aware of potential dangers that might result from usage of the appliance.
-
Page 3: Safety Instructions

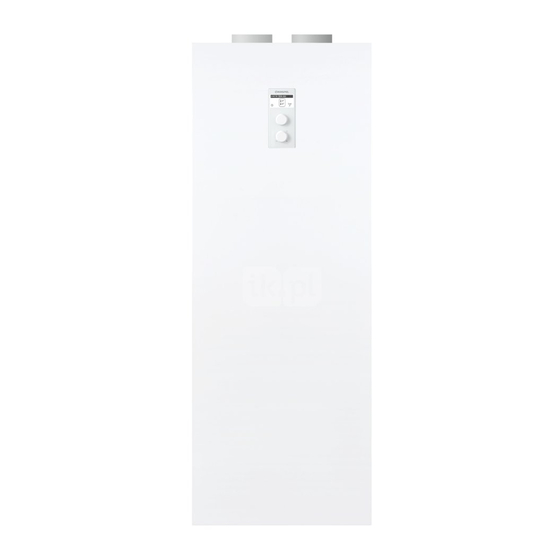

Safety instructions Read and strictly follow the installation and operating instructions to ensure a long life and reliable operation of this appliance. Installation and use of heat pump inconsistent with this instruction is not permitted - may cause malfunction and will void the warranty. Room for installation should have cubature of minimum 20 m and provide adequate air exchange. - Page 4 Description The HPSW-2 heat pump is device used to heat and store domestic hot water using stored energy in the ambient air. Device is equipped with a 250l, an electric heater and a coil to connect external heat source (e.g. central heating boiler). 9:37 WT 2.01.2018 12.7°...
- Page 5 Connection to the heating and water supply system Connection to the water supply system must be done in accordance with the binding norms. Heating pump HPSW 2 is a pressure device adapted for connection to water supply system not exceeding 9:37 WT 2.01.2018 12.7°...
-
Page 6: Air Outlet
Air cables connection Air can be extracted from room in which the device is mounted, another room or from outside of the building. Air can be extracted from room in which the device is mounted, another room or from outside of the building. Install air filter of filtration class G3 at the inlet channel. - Page 7 Assemble of case and angular connectors The device case has been designed to allow connector to be directed into right or left side. To direct connectors to required angle rotate them in the socket of hose connector with an angle of 180 degrees. [1] - front cover [2] - side cover - back (with holes for connectors) [3] - angular connections G1 with hose connector...
- Page 8 90˚ HPSW pump allows to change the position of the connectors. Connectors may be directed to the back or side of device (right or left side).
- Page 9 Connection of the condensate hose During normal operation, moisture in the air condenses on the walls of evaporator. Condensates flow into the drip tray where are led to the tube nozzle on the outside of the device. Siphon should be hermetically connected to the condensate pipe and then led to sewerage.
-
Page 10: Operation Of Control Panel
Operation of control panel Use the lower knob to select operating mode [3]: stand-by > heating pump is off, only frost protection is active, 9:37 TUE 9:37 TUE 2.01.2018 2.01.2018 compressor > according to configured 12.7° 12.7° work schedule heat pump maintains °... -
Page 11: Main Screen
The navigation dial switches function screens: MAIN SCREEN: informs about main heat pump parameters (→ MAIN SCREEN), SETTINGS: allows to adjust parameters to user’s preferences, SERVICE / CONFIGURATION: allows to set the hot water heating system (available to specialized services) and preview of input and output signals of the device. Access to individual functions is enabled after selecting suitable function screen and pressing navigation dial. - Page 12 Connection of external control appliances Circulation temperature Tcrk sensor (Tcrk) (additional NO COM NC NO COM NC component - WE sensor 019/01) Location of mounting the sensor is shown in the hydraulic system Tcrk diagram. Cable connection of the sensor should be as short as FN FN possible, shouldn’t be led close to power cords or wrapped around...
- Page 13 SETTINGS: 8:38 THU 14.04.2020 8:38 THU 14.04.2020 SETTINGS SETTINGS 1 - no. of time frame according to schedule (max 5) DHW PROGRAMME DHW PROGRAMME 2 - time of starting the selected temperature 3 - time of finishing the selected temperature 1 6:20 - 8:00 42°...
- Page 14 ● DATE/ TIME: Setting current system time (year, month, day, hour, minute). AUTO TIME CHANGE: yes > automatic time switch from summer to winter mode and reverse. *Saving settings to the controller’s memory occurs after leaving menu, after pressing “Save and leave”...
-
Page 15: Service Configuration
SERVICE / CONFIGURATION PARAMETERS PREVIEW: 8:38 THU 14.04.2020 8:38 THU 14.04.2020 Preview of input and output signals of the heat pump. SERVICE/CONFIGURATION SERVICE/CONFIGURATION CONFIGURATION * Changes in the configuration menu are possible after entering an access code. When prompted for an access code, set recquired code by turn the navigation dial to the left and confirm the code by pressing the dial. - Page 16 Daily schedule: [1] - selected time period [2] - no. of time frame according to schedule (max 5) DHW PROGRAMME DHW PROGRAMME [3] - time of starting set temperature [4] - time of finishing set temperature 1 6:20 - 8:00 42°...
- Page 17 Failures If fault occurs there will be Err message on display. In case of error contact authorized service of Kospel. Anode’s state control When device is in use, the anode wears naturally. That is why, periodic control and replacement is necessary. In heat pump HPSW an insulated anode was used which allows for preliminary control of its consumption with no need to disassemble.
-
Page 18: Technical Data
Technical data Model HPSW-2/250 Heating power 2000 / 4000* Electric power consumption 600/2600** Rated current 2,6/11,3 A20/W15-45 3,86 A20/W10-55 3,24 COP (by PN EN 16147) efficiency factor A15/W15-45 3,47 A15/W10-55 2,91 Power supply V/Hz 230/50 Electric heater 2000 Maximum water temperature °C... - Page 19 Refrigerant type R134A Volume 1430 Equivalent of CO 0,658 Maximum pressure Amount of compressors szt. Air flow Ambient temperature °C 5 - 40 125,8 229,3 332,5 Dimensions 831,5 932,5 1160 dimensions (HxWxD) 1669x627x670 Nett weight Noise level dB(A) GB-097B_f...
- Page 20 KOSPEL S.A. 75-136 Koszalin, ul. Olchowa 1 tel. +48 94 31 70 565 serwis@kospel.pl www.kospel.pl...
