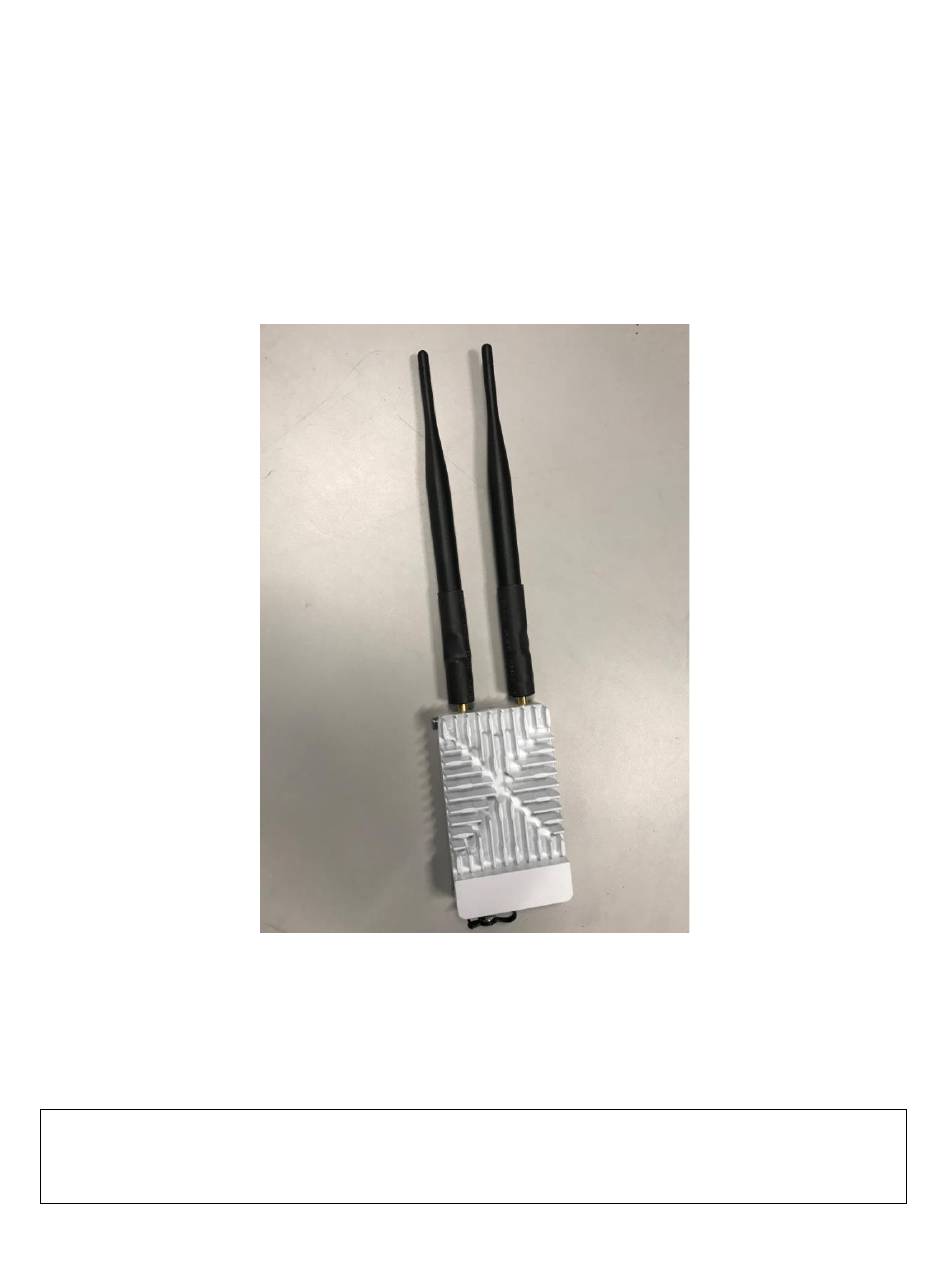

- Page 1 NOKIA Nokia Industrial MulteFire Router Quick Guide Document ID: DN1000075882 This is a quick reference guide for Nokia MulteFire Industrial Router installations. Nokia MulteFire Industrial Router is designed for indoor/outdoor installations on walls and poles.
- Page 2 The information in this document applies solely to the hardware/software product (“Product”) specified herein, and only as specified herein. This document is intended for use by Nokia Solutions and Networks' customers (“You”) only, and it may not be used except for the purposes defined in the agreement between You and Nokia Solutions and Networks (“Agreement”) under which this document is distributed.
-
Page 3: Table Of Contents
SIM Insertion ............................ 14 MulteFire Router SIM Insertion ......................14 Cabling .............................. 15 Connecting power cable to MulteFire Industrial Router ..............15 Ethernet Connector on MulteFire Industrial Router ..............15 MulteFire Router Compliance Statements .................. 16 Approved antenna for MulteFire Router ..................16 FCC Compliance Statement ....................... -
Page 4: Before You Start
1. Before you start This guide provides instructions on Nokia Industrial MulteFire Router installation. The Nokia Industrial MulteFire Router unit is designed to be installed on walls and poles, for both, indoor and outdoor deployments. Notice: The unit should be located away from any RF radiation sources, out of direct sun exposure, and away from areas of potential salt spray CAUTION! Risk of personal injury. -
Page 5: Contents Of Delivery
2. Contents of delivery Items: • 2 x Omni-directional Antennas (included in box) • 1 x MulteFire Router (included in box) • 1 x Power Supply / Cable (included in box) • 1 x Wall Mounting Bracket (provided by Nokia) •... -
Page 6: Preparing The Installation
1 x Drill Materials: • 2x 8.7mm (or 11/32”) nylon cable ties to attach MulteFire Router to the Wall Mounting Bracket (should be IEC62275 Type 2 or equivalent) • 2x M6 bolts or screws to mount the Wall Mounting Bracket on a wall... -
Page 7: Clearances
OPTIONAL: 1 x Pole Mounting Bracket (3TG00291AA) • 2x M5 bolts to attach the Wall Mounting Bracket to the Pole Mounting Bracket • 2x Steel Band Straps to mount Pole Mounting Bracket on a pole (not included) Clearances Nokia Industrial MulteFire Router Quick Guide... -
Page 8: Dimensions And Weight
NOTE: The unit may become hot and should be installed with a minimum of 100 mm (4.0 in.) clearance on all sides to ensure proper air flow and heat dissipation. The front side of the MulteFire Router should always be facing open space to maximize the efficiency of the device. Dimensions and weight... -
Page 9: Installing On A Wall
Installing MulteFire Router on walls The steps below show the installation for the MulteFire Router. 1. Attach Wall Mounting Bracket to the MulteFire Router using two nylon cables ties. 2. Tighten the omni-directional antennas to the MulteFire Router (torque 0.8 – 1.1 Nm). - Page 10 NOKIA 3. Mark two screw holes on the designated wall (38 mm apart). Then drill holes in the marked places 4. Attach the bracket to the wall using M6 bolts/screws (torque 3 Nm). Nokia Industrial MulteFire Router Quick Guide...
- Page 11 NOKIA 5. Attach the MulteFire Router to the wall-portion of the Wall Mounting Bracket using the provided short M5 bolts (torque 1 Nm). Nokia Industrial MulteFire Router Quick Guide...
-
Page 12: Installing On A Pole
5. Installing on a pole Installing MulteFire Router on poles Complete steps 1-2 in Install on a Wall procedure to attach the MulteFire Router to the Wall- Mount bracket and continue with the following steps. 1. Attach the MulteFire Router to the other half of the Wall Mounting Bracket using the provided short M5 bolts (torque 1 Nm). - Page 13 NOKIA 3. Attach Wall Mount Bracket to Pole Mount Bracket using provided M5 bolts (torque 1 Nm). Nokia Industrial MulteFire Router Quick Guide...
-
Page 14: Sim Insertion
6. SIM Insertion MulteFire Router SIM Insertion Insert the SIM card provided by Nokia into slot below the RJ45 connector. For additional information on SIM insertion please refer to the Nokia Industrial MulteFire Router User Manual. Nokia Industrial MulteFire Router Quick Guide... -
Page 15: Cabling
Nokia for use with this product. Ethernet Connector on MulteFire Industrial Router The MulteFire Router includes an RJ45 port that can be used to provide connectivity to external equipment. Ethernet cables are customer supplied. NOTICE For ruggedized use, consider using waterproof... -
Page 16: Multefire Router Compliance Statements
RF Modules installed in this product must not be co-located or operating in conjunction with any other antenna or transmitters, except when installed in accordance with FCC multi-transmitter product guidelines. Nokia Industrial MulteFire Router Quick Guide... -
Page 17: Ce Compliance Statement
électrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Nokia Industrial MulteFire Router Quick Guide...
