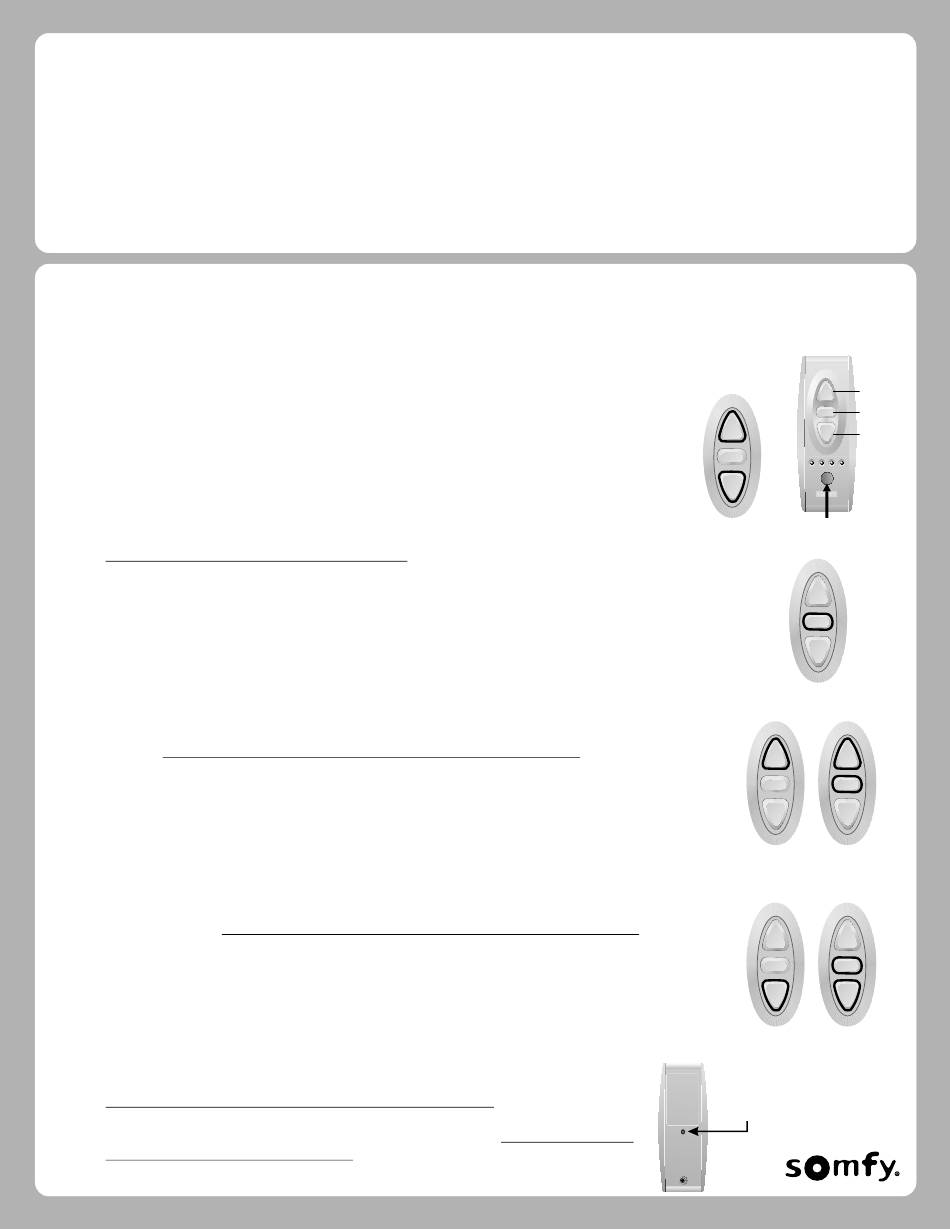

SOMFY RTS LT-30RT Programming And Operation Instructions

Embedded RTS LT-30RT - 12V
Programming and Operation Instructions

Before you begin

- Motors are shipped without limit switch settings and transmitter ID's.
- Steps (1-7) must be completed to ensure proper shade programming and functionality.
- Power should ONLY be connected to current shade being programmed. All other shades should be disconnected from their respective
power while programming is in progress.
- While programming steps (4 & 5), shade should not be inactive for longer than 2 ½ minutes or motor will exit programming mode.
STEP 1- Connect Power to Motor
1) Connect power source to motor
· Motor should already be installed in shade
STEP 2- Assign a Transmitter - (for use with Telis 1 & 4,Decora 1 & 4 or Chronis Timer)
For Single Channel Transmitters (Telis 1, Decora 1, or Chronis)
1) On the transmitter, press and hold the UP and DOWN buttons simultaneously until the shade "jogs".
For Multi-Channel Transmitters (Telis 4 or Decora 4)
1) Using the channel selector, select the desired channel.
2) On the transmitter, press and hold the UP and DOWN buttons simultaneously until the motor "jogs".
Note: This step cannot be performed if transmitter has already been programmed (addressed)
to shade.
STEP 3- Check Polarity (Shade Direction)
MUST BE DETERMINED BEFORE SETTING SHADE LIMITS
1) Press and hold the UP or DOWN button. The Shade movement (direction) should correspond to the
directional button on the Transmitter. (i.e, Up Button on the Transmitter = Up movement for Shade)
· If shade direction is correct, continue to Step 4.
· If shade direction is not correct (in reverse), press and hold the CENTER (Stop) button on the transmitter
for 5 seconds. Shade will jog (DOWN then UP) Shade direction is now corrected. Shade movement
should now correspond to the direction button on the transmitter.
STEP 4- Setting the Upper Limit (UP Stop Location)
1) Press and hold the UP button on the transmitter. Shade will PULSE initially then begin to move in the UP
direction. Note: During Limit setting, shade operates in 4 Foot increments only.
If shade stops prior to reaching desired limit (final shade position) release then press and HOLD transmitter
UP button again until shade continues to move.
2) Once desired shade position is reached, release transmitter directional button, then press the
CENTER (Stop) and UP buttons together until the shade "jogs" confirming the set position.
STEP 5- Setting the Lower Limit (DOWN Stop Location)
1) Press and hold the DOWN button on the transmitter. Shade will PULSE initially then begin to move in
the DOWN direction. Note: During Limit setting, shade operates in 4 Foot increments only.
If shade stops prior to reaching desired limit (final shade position) release then press and hold
transmitter DOWN button again until shade continues to move.
2) Once desired shade position is reached, release transmitter directional button, then press the
CENTER (Stop) and DOWN buttons together until the shade "jogs" confirming the set position.
STEP 6- Completing & Exiting Programming Mode
1) Press and hold the PROGRAM button on the back of the transmitter until the shade "jogs."
TRANSMITTER IS NOW ADDRESSED AND PROGRAMMING IS COMPLETE.
Note: If power is disconnected from shade before STEP 6 is completed, TRANSMITTER WILL NOT
BE ADDRESSED to the programmed shade. This feature is useful if shade MUST BE addressed to
an existing Transmitter. (see Assigning Transmitter to Shade STEP 2)
Telis 4 Transmitter
UP
STOP
DOWN
Channel Selector
Programming
Button
