Summary of Contents for SOMFY RS485 RTS

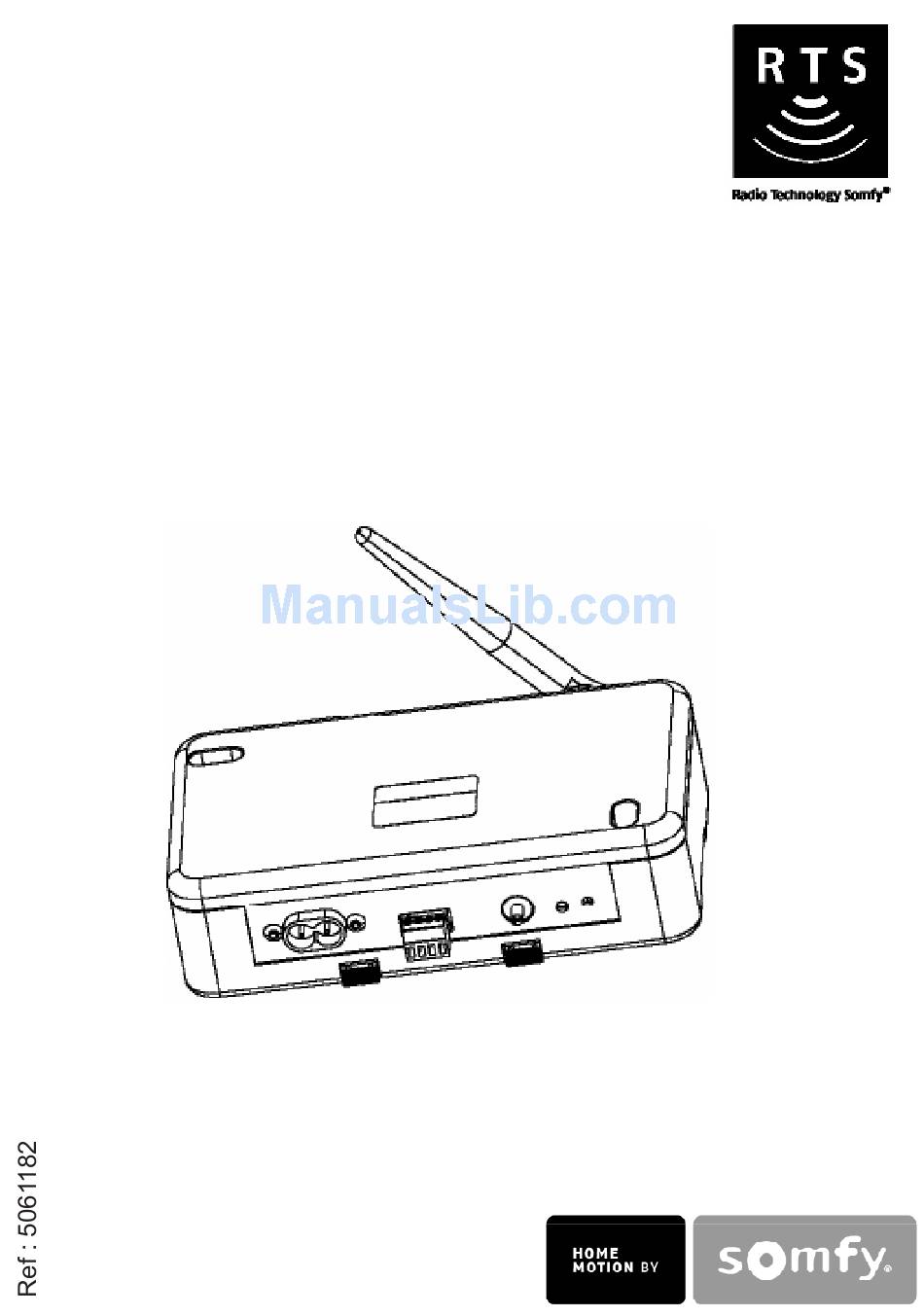

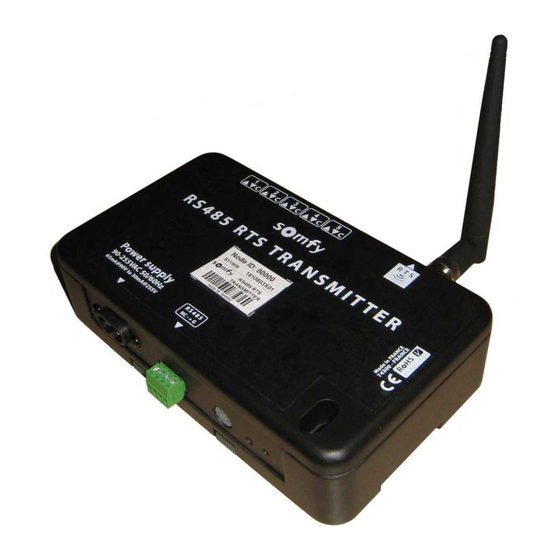

  • Page 1 Somfy.com RS485 RTS TRANSMITTER...
  • Page 2 северо-восточной Европы. Guía de instalación página 38 Por la presente, Somfy declara que el aparato cumple las exigencias esenciales y el resto de disposicio- nes pertinentes de la directiva 1999/5/EC. Podrá encontrar una declaración de conformidad en la página web www.somfy.com/ce.
  • Page 3 • Any use outside the sphere of application specified by Somfy is not approved. Such use, or any failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses to accept liability.
  • Page 4: Wall Installation

    Plug the dry contact control to the dry contact connector. ▼: Down ▲: Up C : Commun Power wiring Connect the transmitter to a standard AC power source. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 5 The product is in programming mode. 3) Press the programming button on the RS485 RTS transmitter until the motor jogs. The product is assigned to the transmitter. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 6: Dry Contact

    3) Delete the My position To delete the MY position, move to this position and press the My button until the product jogs or the light blink. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 7 TECHNICAL DATA Voltage 90V → 255V Voltage Frequency 50Hz → 60Hz Operating temperature 0°C / 60 °C Protection rating IP20 Control DCT / RS485 RTS Frequency 433,42 MHz Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 8 Поврежденные электроприборы и элементы питания не следует выбрасывать вместе с обычными бытовыми отходами. Их следует выбрасывать в специально предназначенные контейнеры или передавать в авторизованную организацию, которая обеспечит их утилизацию. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 9 контактом Подключите кабель управления с сухим контактом к разъему с сухим контактом. ▼: Вниз ▲: Вверх C : Общий Подключение питания Подключите радиопередатчик к электропитанию 230В 50 Гц. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 10 запрограммированном радиопульте RTS с обратной стороны. Конструкция находится в режиме программирования. 3) Нажмите кнопку программирования на передатчике RS485 RTS, пока электромотор работает. Радиопередатчик запрограммирован в конструкции с электроприводом. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 11 3) Удаление промежуточного положения Для удаления ранее запрограммированного промежуточного положения установите полотно в это положение и нажмите кнопку промежуточного положения и удерживайте до тех пор полотно начнёт двигаться или загорится лампа. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 12 Технические характеристики Напряжение 90V → 255V Частота тока 50Hz → 60Hz Температура 0°C / 60 °C эксплуатации класс IP20 пылевлагозащмты Блок управления DCT / RS485 Частота RTS 433,42 MHz Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 13 Each character is coded as follow : Character coding Baud Rate 4800 +/-2% Start bit Logical Level 0 Data bits Less significant bit transmitted first Parity Stop bit Logical Level 1 Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 14 Message Format Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 15 SET_SUN_AUTO (93h) Lock / Unlock dry contacts inputs SET_DCT_LOCK (94h) Send PROG command SET_CHANNEL (97h) Open the programmation mode SET_OPEN_PROG (98h) Save favorite position SET_IP (9Ah) as Intermediate Position Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 16 0 = Unlock 1= Lock 0 to 15 = RTS channel selection 8-bits 8-bits 0 to 15 = RTS channel selection 8-bits 0 to 15 = RTS channel selection 8-bits Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 17 CTRL_POSITION (80h) STOP movement Move to favorite position / Control Switch light ON with favorite light level Tilt + / - CTRL_TILT (81h) Dim + / - CTRL_DIM (82h) Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 18 Tilting value (1 to 127) 8-bits 0 to 15 = RTS channel selection 8-bits 0 = Dim + 8-bits 1 = Dim - Diming value (1 to 127) 8-bits Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 19 Warning: All messages named POST_Something are messages sent by the product as an answer to the corresponding GET_Something request. If POST_Something message is sent to the product, it will be ignored. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 20 0 to 15 = RTS channel selection 8-bits 0 to 15 = RTS channel selection 8-bits Frame count Bits 1 to 5 control inputs 1 to 5 8-bits 0 = Unlock 1= Lock Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 21 Examples are given for a communication between a host and a slave using the following addresses : Host@ = FF:FF:00 (FF FF 00 <= @ <= FF FF FE for a non-SOMFY host) Slave@ = 05:00:02 (See NodeID label on product)
  • Page 22 Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 23 ON (favourite light position) Allow to switch on the light to a favorite level. DIM + Allow to increase the light intensity. DIM - Allow to dicrease the light intensity. Copyright © 2009 Somfy SAS. All rights reserved - V0 - 09/2009...
  • Page 24 Tel: +7 495 781 47 72 Somfy, spol. s.r.o. United Arab Emirates: Italy: Somfy Italia s.r.l Serbia: SOMFY Tel: (+420) 296 372 486-7 Somfy Gulf Jebel Ali Free Predstavništvo Tel: +39-024847181 Denmark: Somfy Nordic Zone Japan: Somfy KK Tel: 00381 (0) 25 841 510...
