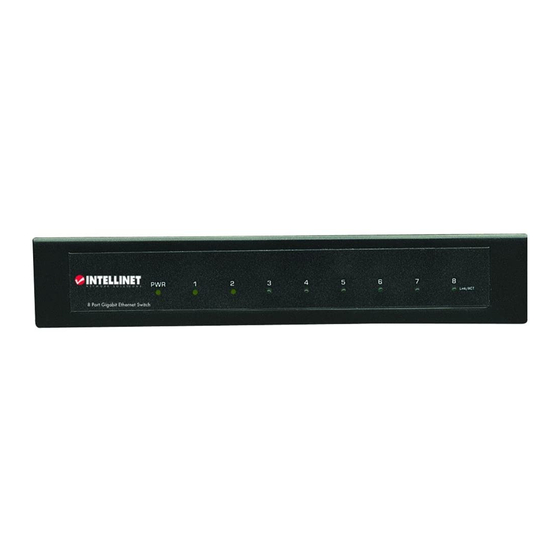

- Page 1 GiGabit EthErnEt DEsktop switch usEr manual Models 530347 & 530378 Shown: Model 530347, 8-Port INT-530347-UM-0308-02...
- Page 3 Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit Ethernet Desktop Switch, Model 530347 (8-port) or 530378 (5-port). Perfect for the home or small office, this device’s Gigabit Ethernet ports provide the high performance your network needs for handling the quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications.
-
Page 4: Front Panel
Flashing Corresponding port is transmitting/receiving data. 100/1000 On Mbps rEar & siDE panEls power Power to the Gigabit Ethernet Desktop Switch is supplied by connecting the included external DC power adapter to the DC input jack on the rear panel. Operation Unit is receiving power. - Page 5 The Gigabit Ethernet Desktop Switch provides automatic crossover detection for all ports, so it’s ready for connection to other switches, hubs, PCs, servers and such without the need for crossover cable. Ethernet Switch...
-
Page 6: Specifications
Environmental • Metal housing, desktop size • Dimensions: - Model 530347: 130 x 97 x 25 (WxLxH) mm (5.1 x 3.0 x 1.0 in.) - Model 530378: 30 x 77 x 25 (WxLxH) mm (5.1 x 3.8 x 1.0 in.) •... - Page 8 INTellINeT NeTWoRK solUTIoNs offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
