EASYLAB SOLUTIONS
Communicator to:
IDS X Series Alarm Panel
CONTACT ID Programming
See EasyLab Solutions Communicator connection diagram
to IDs X Series Alarm Panel Diagram
Keypad Programming:
Press: # 9999 * ( To access the IDS Programming )
Location 40:
Press: 40......( Serial Communicator Format )
➢ Select 5, if is not on( Default it is already on for
Contact ID )
Location 46:
Press: 46......( Reporting Communications options )
➢ Select 1, if it is not on( Default it is already on for
Tone Dialing )
Location 51:
Press: 51......( Telephone Number 01 )
Press: 1234
Press: * ( Enter )
Location 61:
Press: 61......( Reporting of partition 1 )
Press: 1234
Press: * ( Enter )
If NOT using more than 1 partition,
Location 211 ( Partition 1 arming options )
If using more partitions, follow below instructions for
partition 2 - 5 MAX
Press: 62......( Reporting of Partition 2 )
Press: 1234
Press: * ( Enter )
Press: 63......( Reporting of Partition 3 )
Press: 1234
Press: * ( Enter )
Press: 64......( Reporting of Partition 4 )
Press: 1234
Press: * ( Enter )
Press: 65......( Reporting of Partition 5 )
Press: 1234
Press: * ( Enter )
SKIP
to Programming of
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IDS X Series
Summary of Contents for IDS X Series
- Page 1 See EasyLab Solutions Communicator connection diagram to IDs X Series Alarm Panel Diagram Keypad Programming: Press: # 9999 * ( To access the IDS Programming ) Location 40: Press: 40……( Serial Communicator Format ) ➢ Select 5, if is not on( Default it is already on for...
- Page 2 Location 211: Press: 211……( Partition 1 Arm Options ) ➢ Select 16 ( Default it is not selected for Opening/ Closing user Reporting ) If NOT using more than 1 partition, SKIP to Programming of location 581 (Split reporting Partitions, ONLY when using the keyswitch function !!! )
- Page 3 ) Press: # ,#, # ( To save and go out of programming completely ) Keyswitch Away Arming Programming: Press: # 9999 * ( To access the IDS Programming ) Location 1: Press: 1 Press * ( Enter )
- Page 4 EASYLAB SOLUTIONS Communicator to: IDS X Series Alarm Panel CONTACT ID Programming...
Need help?
Do you have a question about the X Series and is the answer not in the manual?
Questions and answers

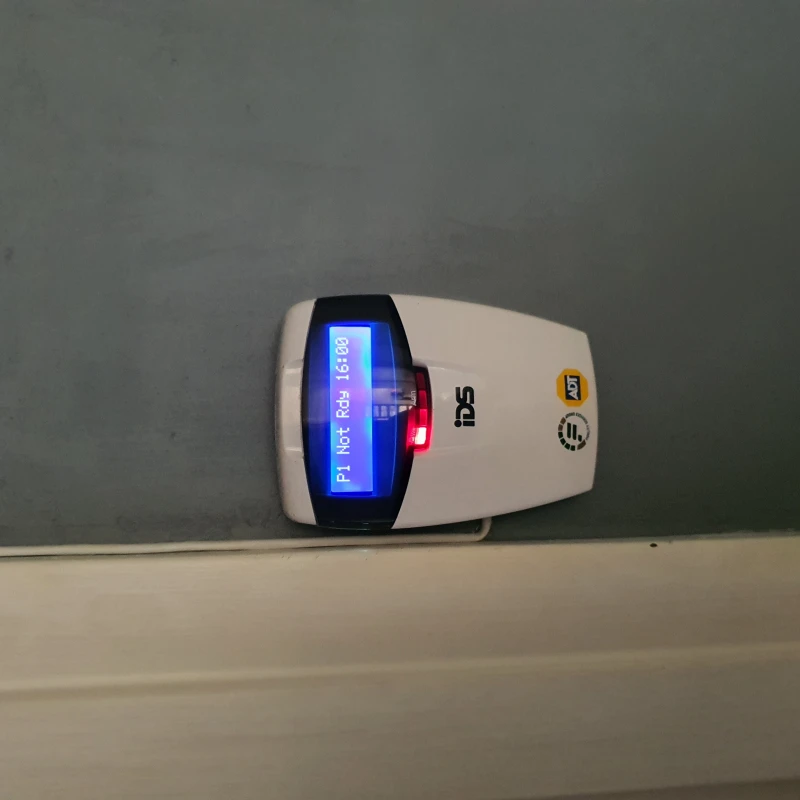

How do I re activa te all the sounds on my panel?
To reactivate all the sounds on the IDS X Series panel, follow these steps:
1. Enter the Installer Menu by pressing 9999* (four nines followed by the star key).
2. Go to location 211 if configuring for partition 1 (use 212 for partition 2, or 213 for partition 3).
3. Press the star key to enter the location.
4. Scroll to option 10, which is "Siren toot on".
5. If it is set to "No", change it to "Yes" to enable the siren sound when arming or disarming.
This will reactivate the siren sound (toot) for arming and disarming actions.
